Description
9999SA3 - Schneider Electric - Square D Motor Control Part And Accessory

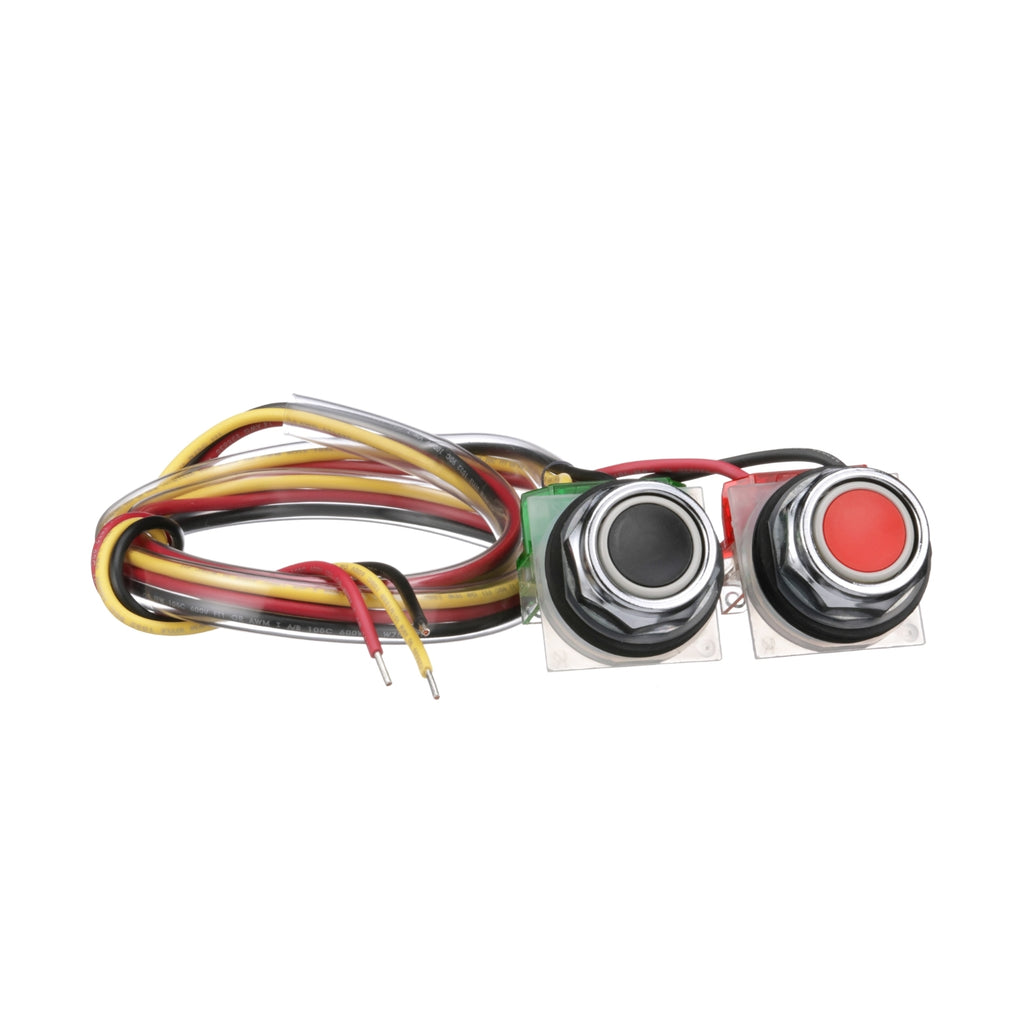

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This Start Stop push button kit is for NEMA size 4 through 7 Type S contactors and starters or 8903SQ through 8903SZ lighting contactors in NEMA 1 enclosure. The push button kit is mounted into the knockout in the enclosure cover. This push button kit is UL listed and CSA certified.
GENERAL SPECIFICATIONS
| Product Range | Type S |
|---|---|
| Component type | Push-button |
| Used with | contactor starter |
| NEMA size | 2 0 6 4 5 3 7 00 1 |
|---|---|
| Marking | START-STOP ON-OFF |
| Mounting Mode | Panel-mounted |
| Rated breaking capacity | 6 A 120 V AC inductive control circuit UL 508 3 A 240 V AC inductive control circuit UL 508 1.2 A 600 V AC inductive control circuit UL 508 10 A 600 V AC resistive control circuit UL 508 1.1 A 125 V DC resistive control circuit UL 508 0.55 A 250 V DC resistive control circuit UL 508 0.2 A 600 V DC resistive control circuit UL 508 |
| NEMA Degree of Protection | NEMA 1 NEMA 3R/12 |
|---|---|
| Product Certifications | UL Recognized CSA |
| Category | US10CP121761 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901030171 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.4 in (8.6 cm) |
| Package 1 Width | 4.4 in (11.2 cm) |
| Package 1 Length | 6.5 in (16.5 cm) |
| Package weight(Lbs) | 16.5 oz (467.2 g) |
PRODUCT DATASHEET
