9999SC2 - Schneider Electric - Square D Motor Control Parts

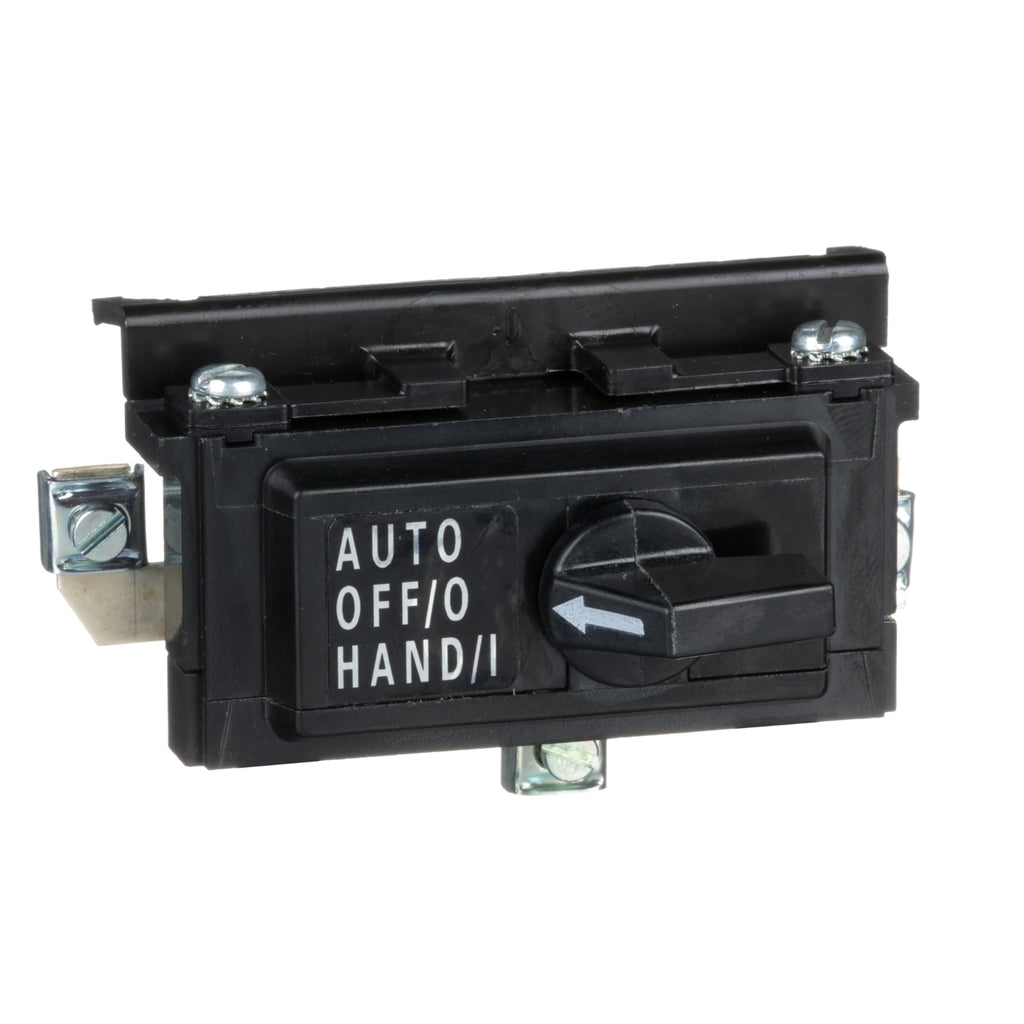

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This Hand Off Auto selector switch kit is for NEMA size 00 through 3 Type S contactors and starters or 8903SM or 8903SP lighting contactors in NEMA 1 enclosure. The selector switch is mounted into the knockout in the enclosure cover. This selector switch kit is UL listed and CSA certified.
GENERAL SPECIFICATIONS
| Product Range | Type S |
|---|---|
| Component type | Selector switch |
| Used with | contactor starter |
| NEMA size | 00 1 0 2 3 |
|---|---|
| Marking | HAND-OFF-AUTO |
| Mounting Mode | Panel-mounted |
| Rated breaking capacity | 3 A 120 V AC inductive control circuit UL 508 1.5 A 240 V AC inductive control circuit UL 508 0.6 A 600 V AC inductive control circuit UL 508 5 A 600 V AC resistive control circuit UL 508 |
| Height | 1.88 in (47.75 mm) |
| Width | 3.81 in (96.77 mm) |
| Depth | 5.63 in (143.002 mm) |
| Net Weight | 0.51 lb(US) (0.23 kg) |
| NEMA Degree of Protection | NEMA 1 |
|---|---|
| Product Certifications | UL Listed UL Recognized CSA |
| Category | US10CP121761 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901783008 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.01 in (5.1 cm) |
| Package 1 Width | 3.90 in (9.9 cm) |
| Package 1 Length | 5.91 in (15.0 cm) |
| Package 1 Weight | 6.7 oz (190.5 g) |
