9999SC8 - Schneider Electric - Square D Motor Control Part And Accessory

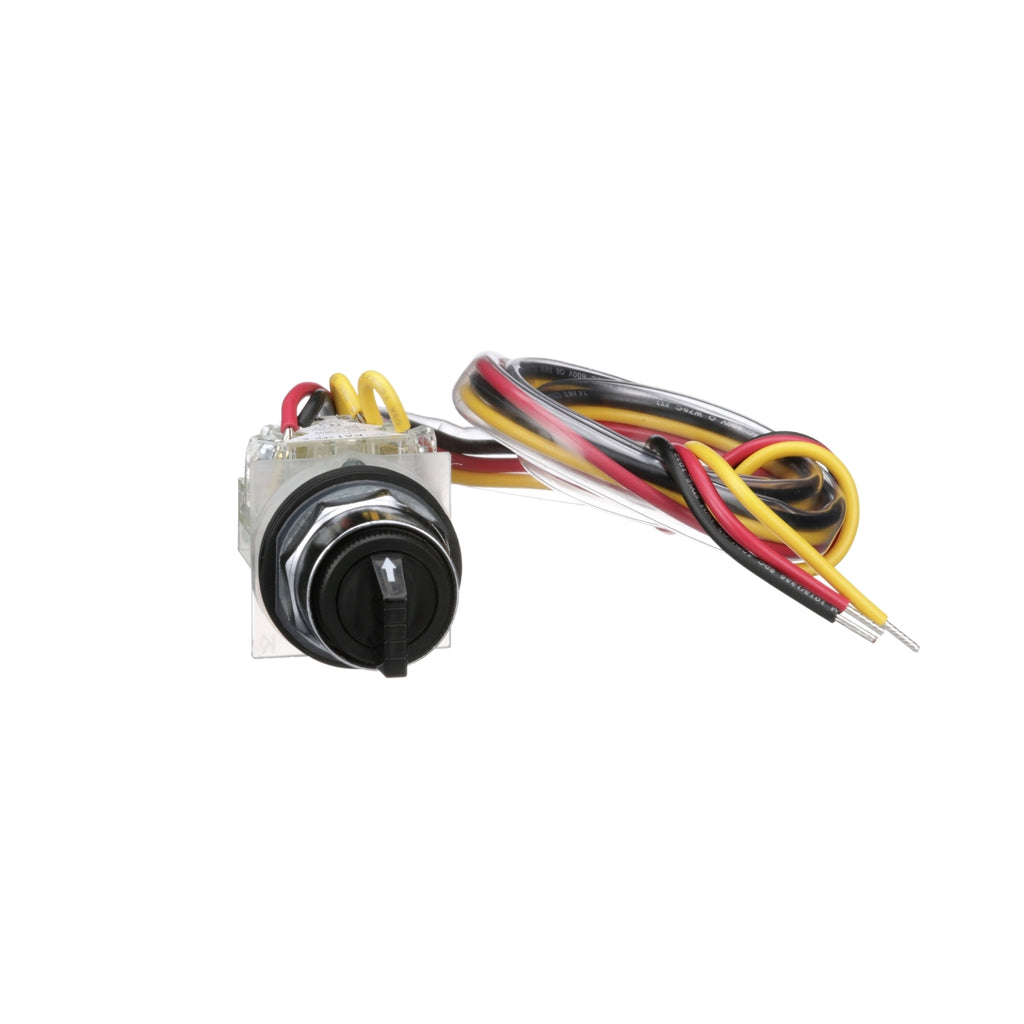

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This Hand Off Auto selector switch kit is for Type S contactors and starters or 8903 lighting contactors in NEMA 1, 3R and 12 enclosure. The selector switch is mounted into the enclosure cover. This selector switch kit is UL listed and CSA certified.
GENERAL SPECIFICATIONS
| Product Range | Type S |
|---|---|
| Component type | Selector switch |
| Used with | contactor starter |
| NEMA size | 0 4 00 5 1 3 2 6 7 |
|---|---|
| Marking | HAND-OFF-AUTO |
| Mounting Mode | Panel-mounted |
| Rated breaking capacity | 6 A 120 V AC inductive control circuit UL 508 3 A 240 V AC inductive control circuit UL 508 1.2 A 600 V AC inductive control circuit UL 508 10 A 600 V AC resistive control circuit UL 508 1.1 A 125 V DC resistive control circuit UL 508 0.55 A 250 V DC resistive control circuit UL 508 0.2 A 600 V DC resistive control circuit UL 508 |
| Height | 1.88 in (47.75 mm) |
| Width | 3.81 in (96.77 mm) |
| Depth | 5.63 in (143.002 mm) |
| Net Weight | 0.82 lb(US) (0.37 kg) |
| NEMA Degree of Protection | NEMA 1 |
|---|---|
| Product Certifications | UL Recognized CSA |
| Category | US10CP121761 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901030164 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.30 in (8.382 cm) |
| Package 1 Width | 4.50 in (11.430 cm) |
| Package 1 Length | 6.40 in (16.256 cm) |
| Package 1 Weight | 12.800 oz (362.874 g) |
