9999SO4 - Schneider Electric - Square D Contactor and Motor Starter Auxiliary

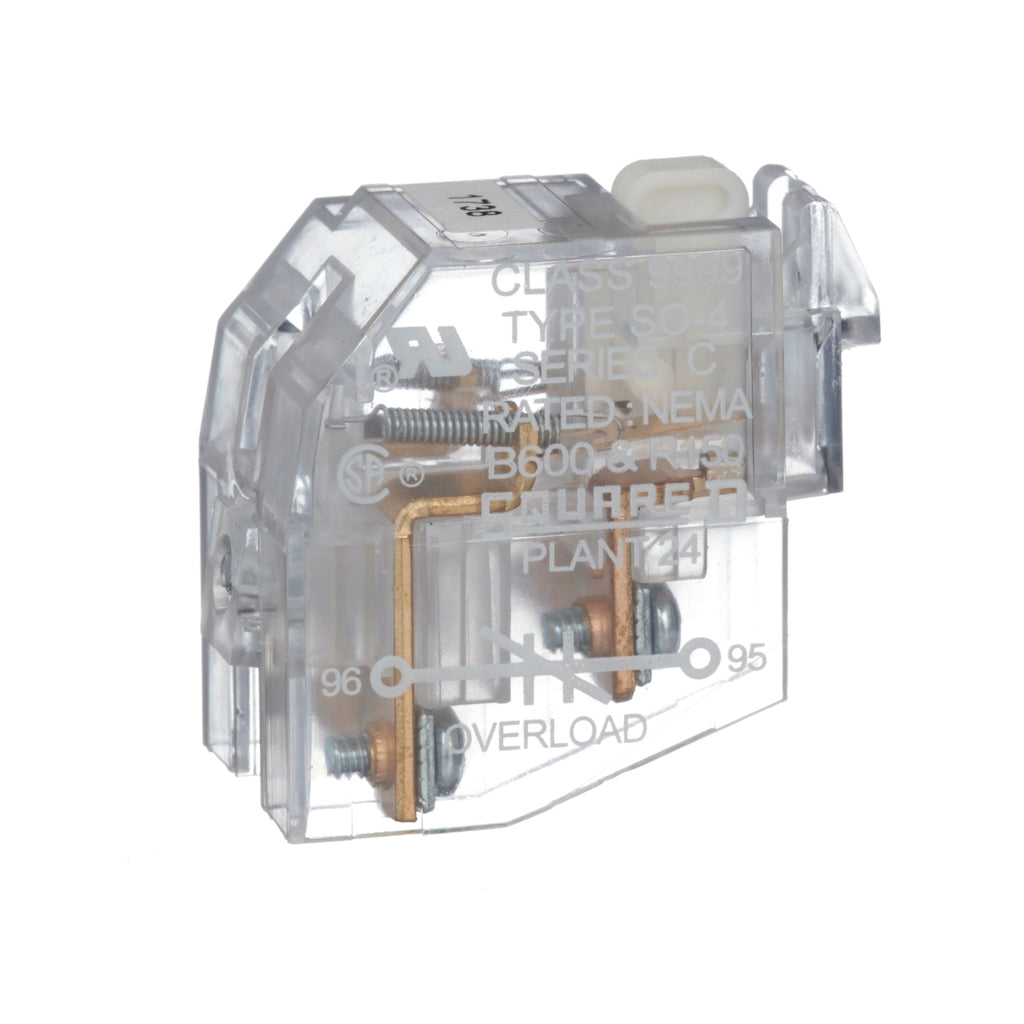

Type S magnetic contactors and starters are for motor control applications. This isolated overload relay alarm contact is available factory installed or as a kit for field installation. This kit will work with melting alloy overload relays used on Type S NEMA size 00 through 6 starters. This module has a normally open isolated alarm contact and a standard normally closed overload relay contact. The case is made of clear plastic to allow for visual inspection of the contacts. This module is UL component recognized.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Accessory |
| Product destination |
Overload relay |
| Thermal overload type |
Melting alloy |
Complementary
| Product or Component Type |
Auxiliary contact |
| Contacts type and composition |
1 NO |
| [Ue] rated operational voltage |
600 V AC |
Ordering and shipping details
| Category |
US10CP121761 |
| Discount Schedule |
0CP1 |
| GTIN |
785901057833 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
1.40 in (3.556 cm) |
| Package 1 Width |
2.30 in (5.842 cm) |
| Package 1 Length |
3.10 in (7.874 cm) |
| Package 1 Weight |
1.760 oz (49.895 g) |
PRODUCT DATASHEET
9999SO4_Product Datasheet
