Description
9999SP28R - Schneider Electric - Square D Molded Case Circuit Breaker

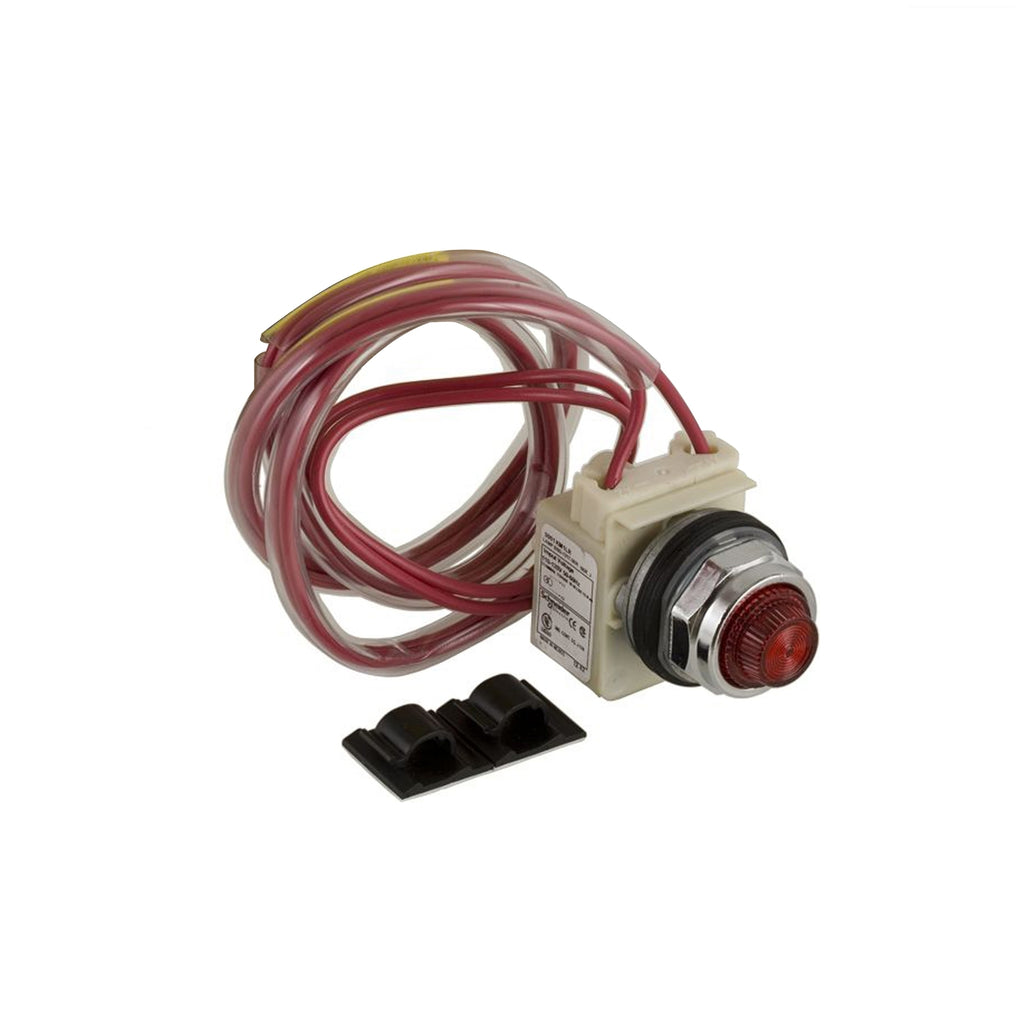

Type S magnetic contactors and starters are for motor control applications. The pilot light kit is for use with Type S contactors and starters and 8903 lighting contactors with a control transformer (Form F4T) with a 120 VAC 60 Hz secobndary. The pilot kit is also used with NEMA Sizes 5-7 contactors and starter and 8903S lighting contactors rated at 100A or more if they have a 120 V 60 Hz coil. The pilot kit comes with a red and a green lens. The pilot kit is UL Component recognized and CSA certified.
GENERAL SPECIFICATIONS
| Product Range | Type S |
|---|---|
| Component type | Pilot light kit |
| Used with | contactor starter |
| NEMA size | 00 0 4 2 6 3 7 5 1 |
|---|---|
| Signalling colour | Green/red |
| [Uc] control circuit voltage | 120 V AC 60 Hz |
| Kit composition | 1 pilot light 2 cable clips 2 instructions 2 cap |
| NEMA Degree of Protection | NEMA 12 NEMA 1 NEMA 4 |
|---|---|
| Product Certifications | CSA UL Recognized |
| Category | US10CP121761 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901030188 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.30 in (8.382 cm) |
| Package 1 Width | 4.40 in (11.176 cm) |
| Package 1 Length | 6.40 in (16.256 cm) |
| Package 1 Weight | 13.280 oz (376.482 g) |
PRODUCT DATASHEET
