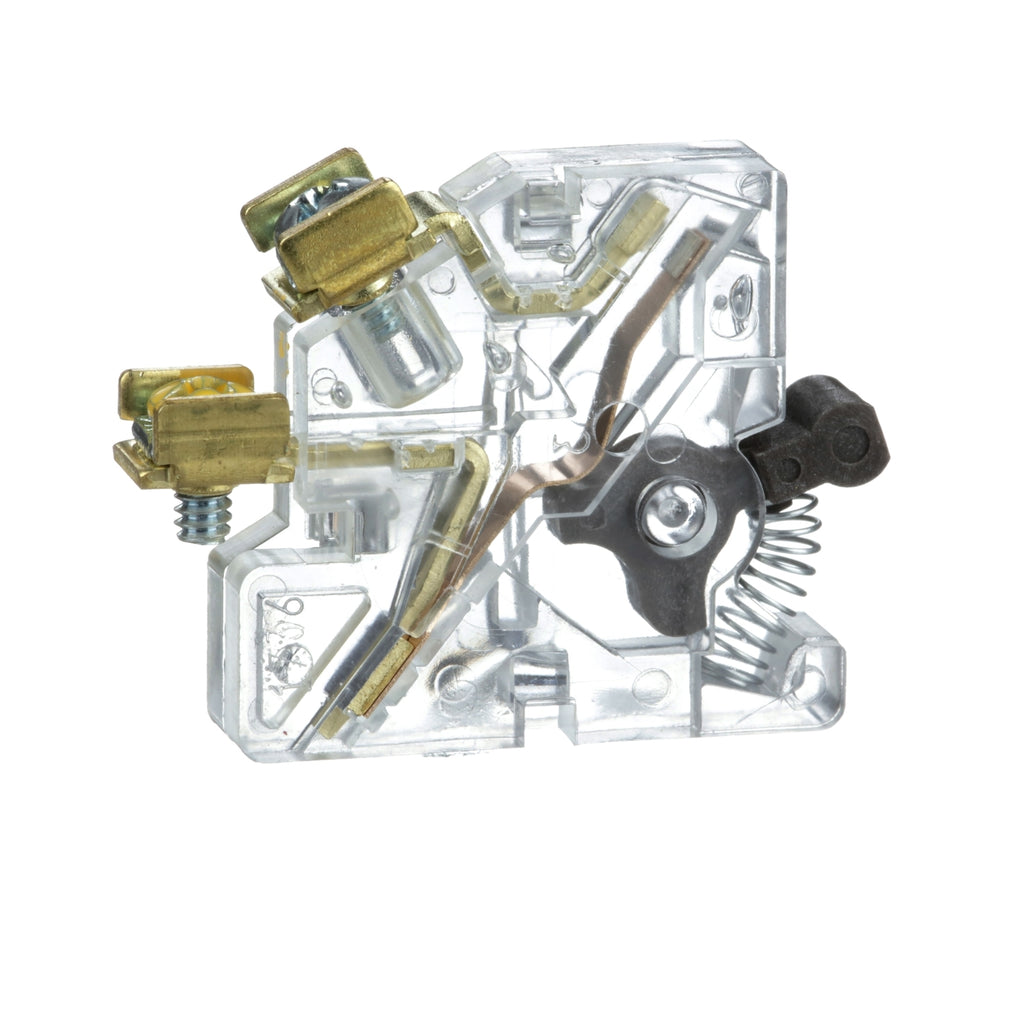

9999SX11 - Schneider Electric - Square D Contactor And Motor Starter Auxiliary
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This internal nonconvertible contact is normally used as a holding circuit contact in three wire control. This auxiliary contact has one normally open contact. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 3.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| Product Range | Type S |
|---|---|
| Component type | Auxiliary Contact Module |
| Used with | contactor starter |
| NEMA size | 00 0 2 1 |
|---|---|
| Auxiliary contact composition | 1 NO |
| [Uc] control circuit voltage | <= 600 V AC 50/60 Hz |
| Rated breaking capacity | 3 A 120 V AC inductive control circuit UL 508 1.5 A 240 V AC inductive control circuit UL 508 0.75 A 480 V AC inductive control circuit UL 508 0.6 A 600 V AC inductive control circuit UL 508 5 A <= 600 V AC resistive control circuit UL 508 |
| Product Certifications | UL Listed CSA UL Recognized |
|---|
| Category | US10CP121761 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901879725 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.42 in (3.6 cm) |
| Package 1 Width | 2.20 in (5.6 cm) |
| Package 1 Length | 3.11 in (7.9 cm) |
| Package 1 Weight | 1.1 oz (31.8 g) |
