Description

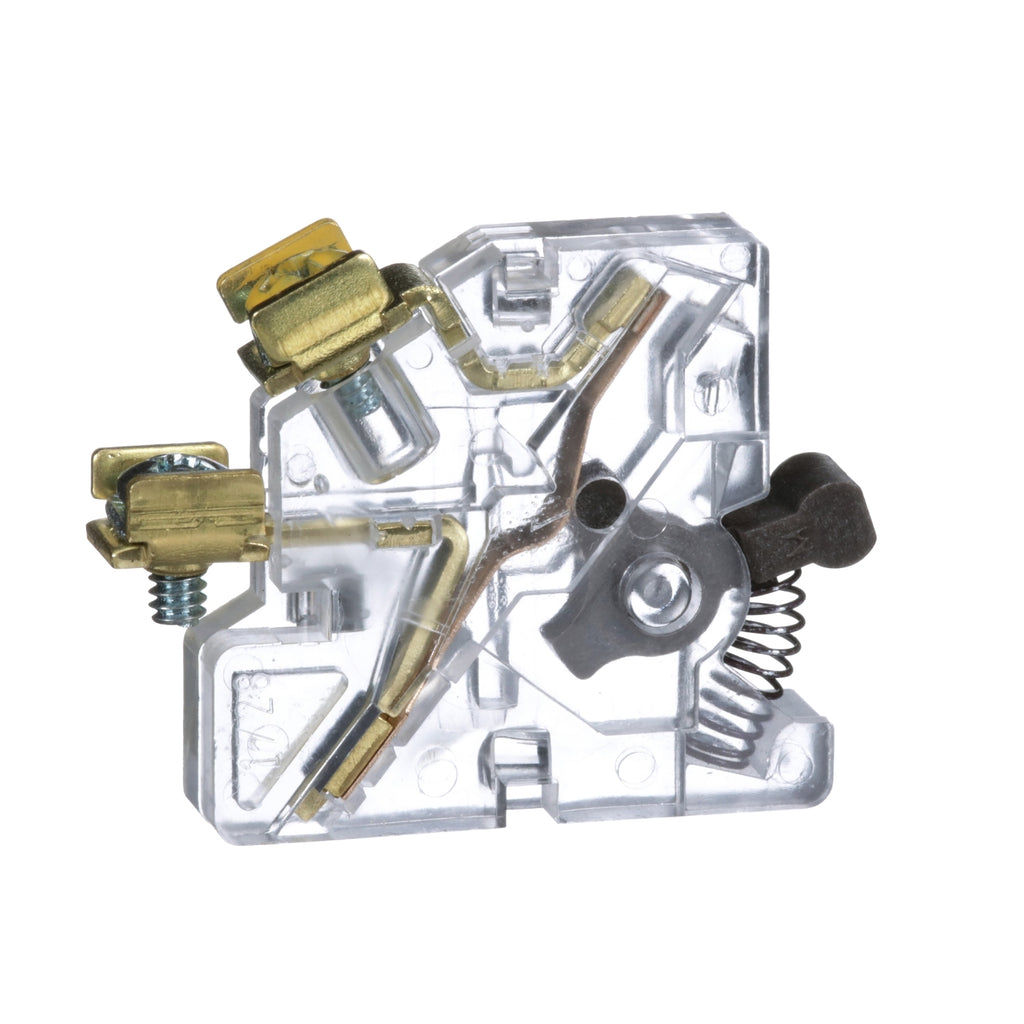

9999SX12 - Schneider Electric - Square D Contactor and Motor Starter Auxiliary
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This internal nonconvertible contact is often used as part of the electrical interlock on reversing contactors and starters. This auxiliary contact has one normally closed contact. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 3.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| Product Range | Type S |
|---|---|
| Component type | Auxiliary Contact Module |
| Used with | contactor starter |
| NEMA size | 1 0 00 2 |
|---|---|
| Auxiliary contact composition | 1 NC |
| [Uc] control circuit voltage | <= 600 V AC 50/60 Hz |
| Rated breaking capacity | 3 A 120 V AC inductive control circuit UL 508 1.5 A 240 V AC inductive control circuit UL 508 0.75 A 480 V AC inductive control circuit UL 508 0.6 A 600 V AC inductive control circuit UL 508 5 A <= 600 V AC resistive control circuit UL 508 |
| Product Certifications | CSA UL Recognized UL Listed |
|---|
| Category | US10CP121761 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901879732 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.30 in (3.302 cm) |
| Package 1 Width | 2.30 in (5.842 cm) |
| Package 1 Length | 3.00 in (7.62 cm) |
| Package 1 Weight | 1.120 oz (31.752 g) |
