Description

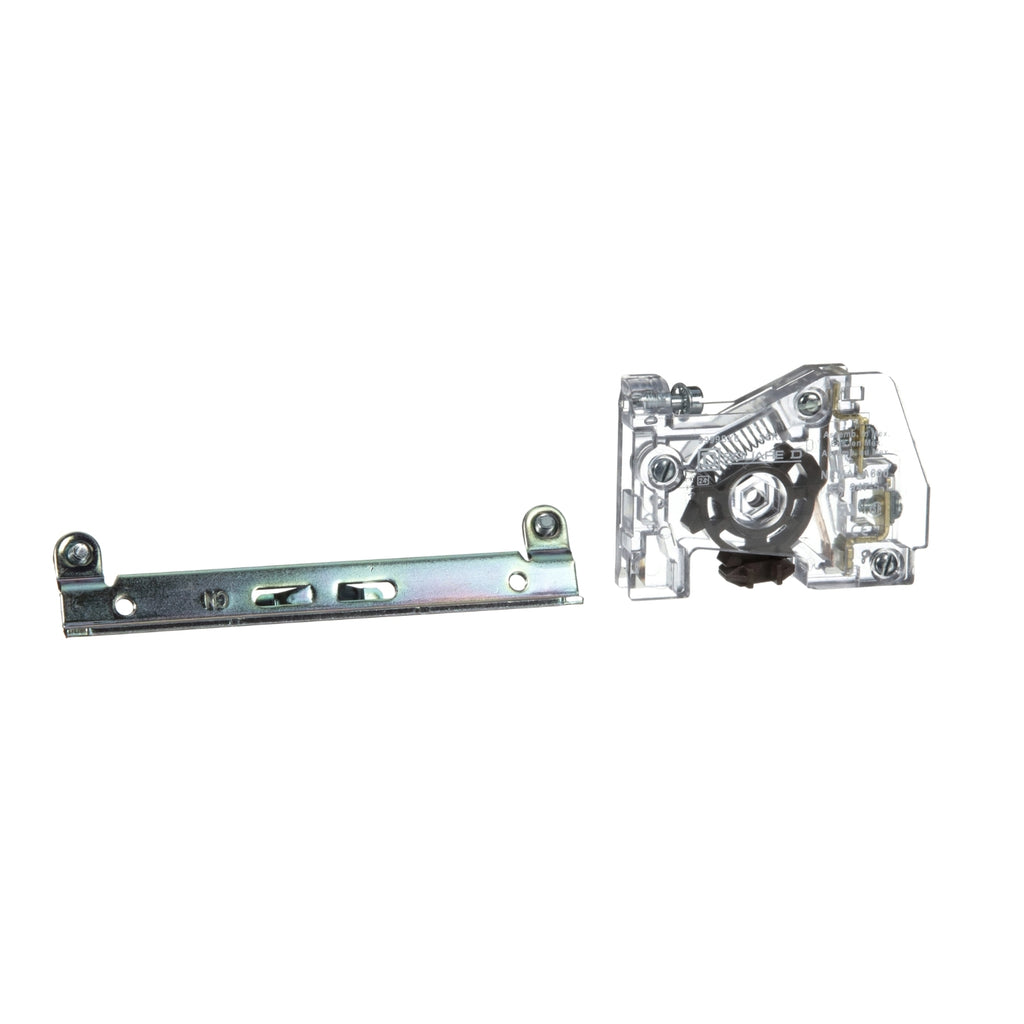

9999SX6 - Schneider Electric - Square D Contactor and Motor Starter Auxiliary
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This external convertible contact is mounted on the side of a contactor or starter. It is often used as part of the electrical control circuit. This auxiliary contact has one normally open contact. Auxiliary contact module has a NEMA A600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 6.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| Product Range | Type S |
|---|---|
| Component type | Auxiliary Contact Module |
| Used with | contactor starter |
| NEMA size | 0 3 6 7 4 5 1 00 2 |
|---|---|
| Auxiliary contact composition | 1 NO |
| [Uc] control circuit voltage | <= 600 V AC 50/60 Hz |
| Rated breaking capacity | 6 A 120 V AC inductive control circuit UL 508 3 A 240 V AC inductive control circuit UL 508 1.2 A 600 V AC inductive control circuit UL 508 1.5 A 480 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 |
| Height | 1.5 in (38.1 mm) |
| Width | 3 in (76.2 mm) |
| Depth | 4.5 in (114.3 mm) |
| Net Weight | 0.20 lb(US) (0.09 kg) |
| Product Certifications | CSA UL Listed UL Recognized |
|---|
| Category | US10CP121761 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901733300 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.50 in (3.810 cm) |
| Package 1 Width | 3.10 in (7.874 cm) |
| Package 1 Length | 4.60 in (11.684 cm) |
| Package 1 Weight | 3.200 oz (90.718 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 5.70 in (14.478 cm) |
| Package 2 Width | 6.80 in (17.272 cm) |
| Package 2 Length | 8.00 in (20.320 cm) |
| Package 2 Weight | 2.359 lb(US) (1.070 kg) |
PRODUCT DATASHEET
