Description

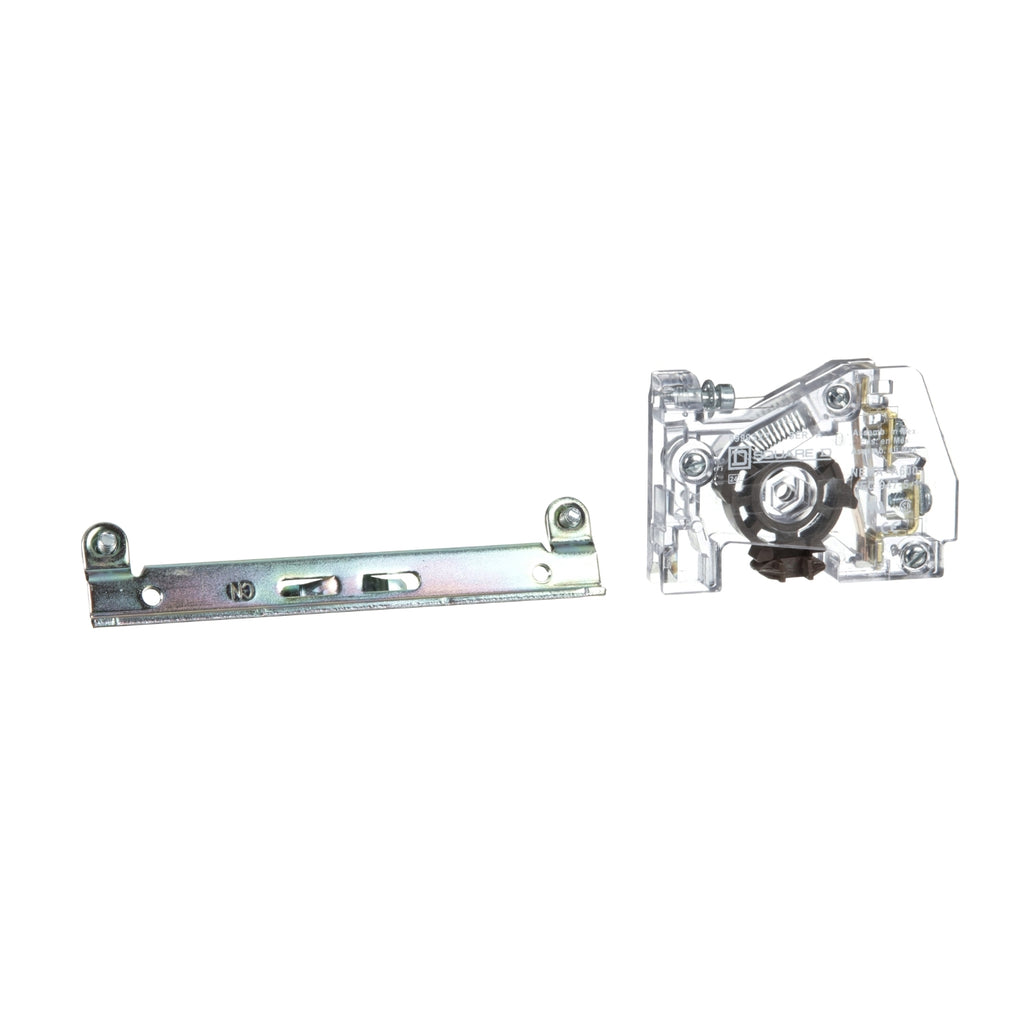

9999SX7 - Schneider Electric - Square D Contactor and Motor Starter Auxiliary
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This external convertible contact is mounted on the side of a contactor or starter. It is often used as part of the electrical control circuit. This auxiliary contact has one normally closed contact. Auxiliary contact module has a NEMA A600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 6.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| Product Range | Type S |
|---|---|
| Component type | Auxiliary Contact Module |
| Used with | contactor starter |
| NEMA size | 2 0 1 6 3 5 00 4 7 |
|---|---|
| Auxiliary contact composition | 1 NC |
| [Uc] control circuit voltage | <= 600 V AC 50/60 Hz |
| Rated breaking capacity | 6 A 120 V AC inductive control circuit UL 508 3 A 240 V AC inductive control circuit UL 508 1.2 A 600 V AC inductive control circuit UL 508 1.5 A 480 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 |
| Product Certifications | CSA UL Recognized UL Listed |
|---|
| Category | US10CP121761 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901733508 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.50 in (3.81 cm) |
| Package 1 Width | 3.10 in (7.874 cm) |
| Package 1 Length | 4.50 in (11.43 cm) |
| Package 1 Weight | 3.52 oz (99.79 g) |
PRODUCT DATASHEET
