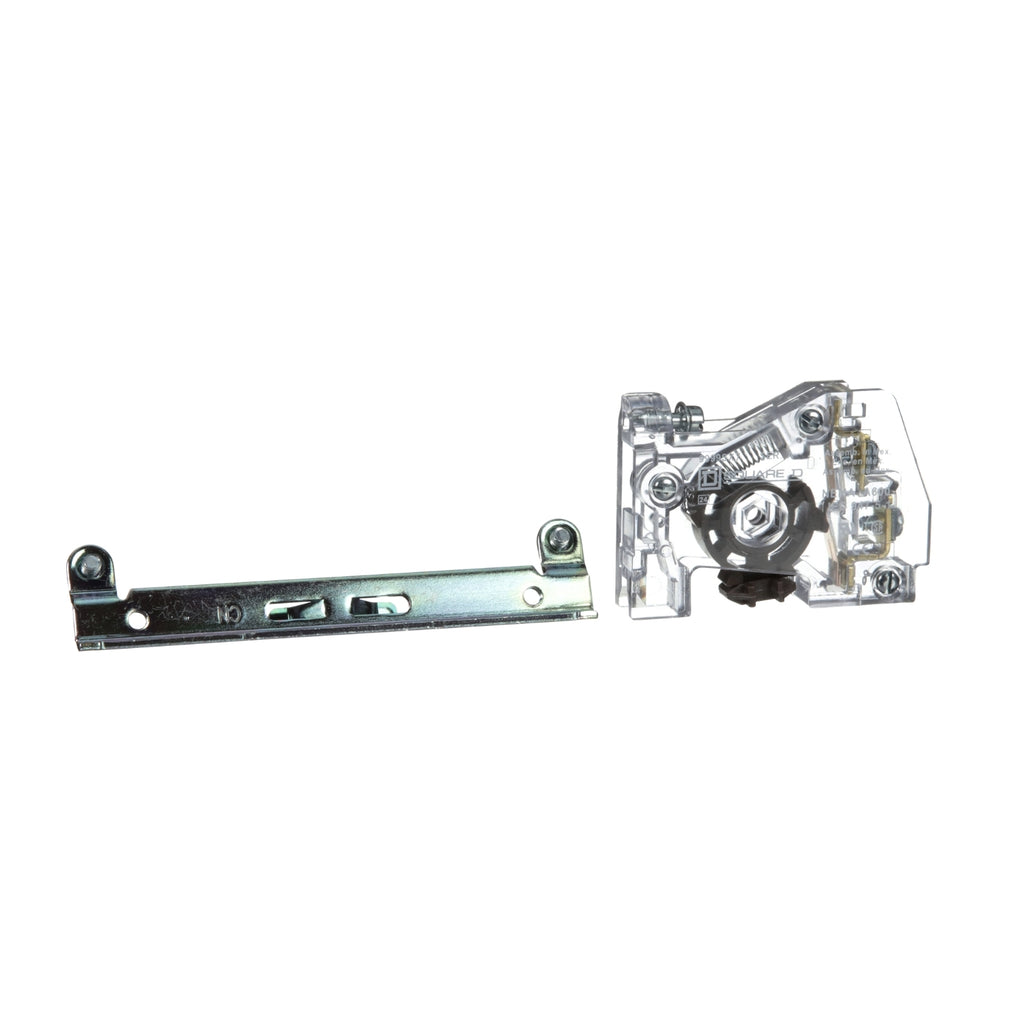

9999SX8 - Schneider Electric - Square D Contactor and Motor Starter Auxiliary
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This external convertible contact is mounted on the side of a contactor or starter. It is often used as part of the electrical control circuit. This auxiliary contact has one normally open and one normally closed isolated contacts. Auxiliary contact module has a NEMA A600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 6.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
| Product Range | Type S |
|---|---|
| Component type | Auxiliary Contact Module |
| Used with | contactor starter |
| NEMA size | 3 4 00 1 6 2 5 7 0 |
|---|---|
| Auxiliary contact composition | 1 NO + 1 NC |
| [Uc] control circuit voltage | <= 600 V AC 50/60 Hz |
| Rated breaking capacity | 6 A 120 V AC inductive control circuit UL 508 3 A 240 V AC inductive control circuit UL 508 1.2 A 600 V AC inductive control circuit UL 508 1.5 A 480 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 508 |
| Height | 1.5 in (38.1 mm) |
| Width | 3 in (76.2 mm) |
| Depth | 4.5 in (114.3 mm) |
| Net Weight | 0.31 lb(US) (0.14 kg) |
| Product Certifications | CSA UL Recognized UL Listed |
|---|
| Category | US10CP121761 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 785901733539 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.50 in (3.810 cm) |
| Package 1 Width | 3.00 in (7.620 cm) |
| Package 1 Length | 4.70 in (11.938 cm) |
| Package 1 Weight | 4.960 oz (140.614 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 6.00 in (15.240 cm) |
| Package 2 Width | 6.80 in (17.272 cm) |
| Package 2 Length | 8.00 in (20.320 cm) |
| Package 2 Weight | 3.0005 lb(US) (1.361 kg) |
