Description

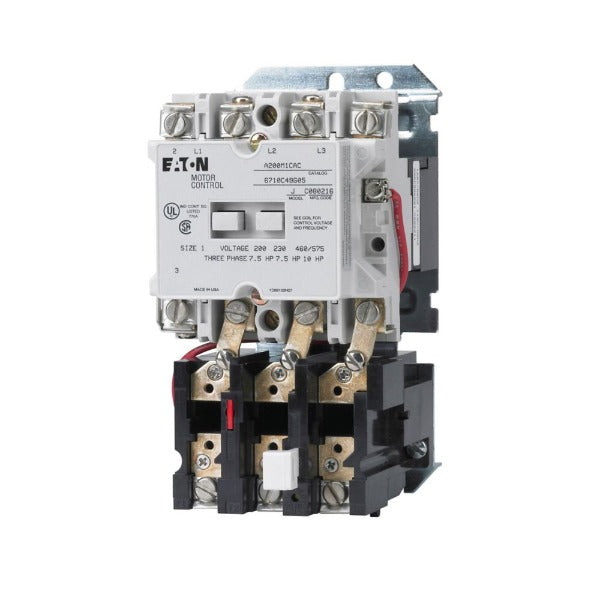

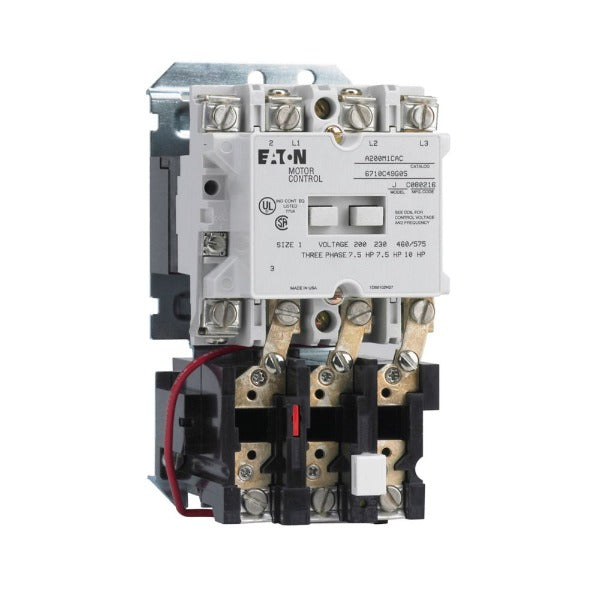

A200M1CAC - Eaton Cutler-Hammer - Accessories 27 Amp 3 Pole 120 Volt Non-Reversing NEMA Motor Control Starter
Eaton Freedom NEMA motor control starter, Non-reversing starter, 120V/60 Hz or 110V/50 Hz coil voltage, 27A, Three-pole, Size 1, 2 hp at 115V, 7-1/2 hp at 208,240V, 10 hp at 480,600V, A200 series, Wired for Separate Control
GENERAL SPECIFICATIONS
| PRODUCT NAME |
Eaton A200 NEMA motor control
|
| CATALOG NUMBER |
A200M1CAC
|
| UPC |
786678231167
|
| PRODUCT LENGTH/DEPTH |
4.61 in
|
| PRODUCT HEIGHT |
3.31 in
|
| PRODUCT WIDTH |
4.38 in
|
| PRODUCT WEIGHT |
2.6 lb
|
| CERTIFICATIONS |
CSA Certified
UL Listed |
| CATALOG NOTES |
For ambient compensated overload relay with auto-reset, add Suffix D.
|
PRODUCT DATASHEET
