Description

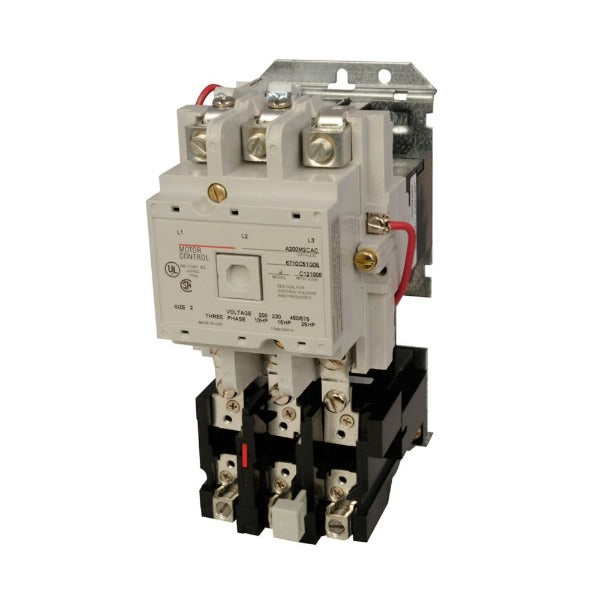

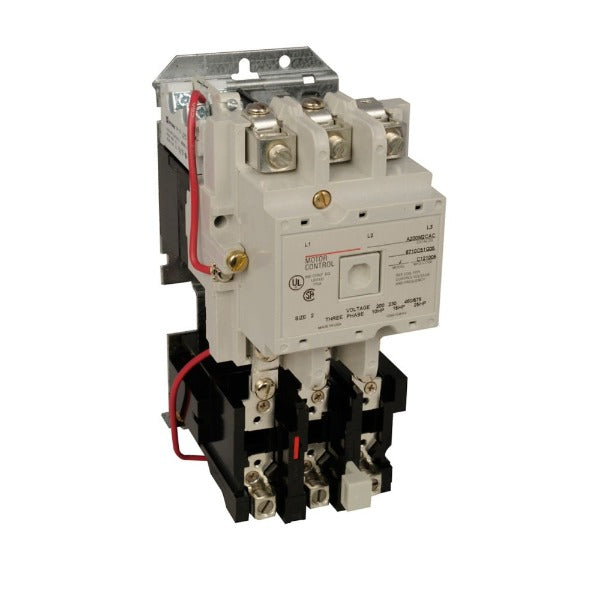

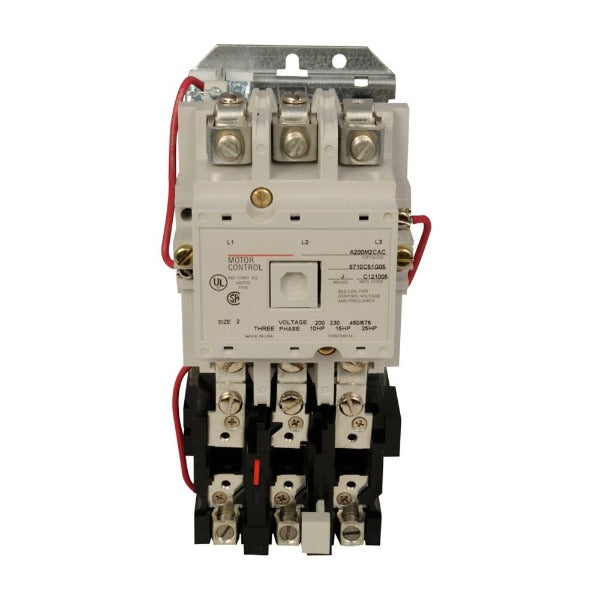

A200M2CB - Eaton Cutler-Hammer - 45 Amp 3 Pole 600 Volt AC Non-Reversing NEMA Electric Motor Control Starter
Eaton Freedom NEMA motor control starter, Non-Reversing Starter, 200-208V/60 Hz coil voltage, 45A, Three-pole, Size 2, 7-1/2 hp at 115V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V, A200 series
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton A200 NEMA motor control |
| CATALOG NUMBER | A200M2CB |
| UPC | 786678231228 |
| PRODUCT LENGTH/DEPTH | 4.94 in |
| PRODUCT HEIGHT | 7.17 in |
| PRODUCT WIDTH | 3.31 in |
| PRODUCT WEIGHT | 43 lb |
| CERTIFICATIONS | CSA Certified UL Listed |
| CATALOG NOTES | For ambient compensated overload relay with auto-reset, add Suffix D. |
PRODUCT DATASHEET
