Description

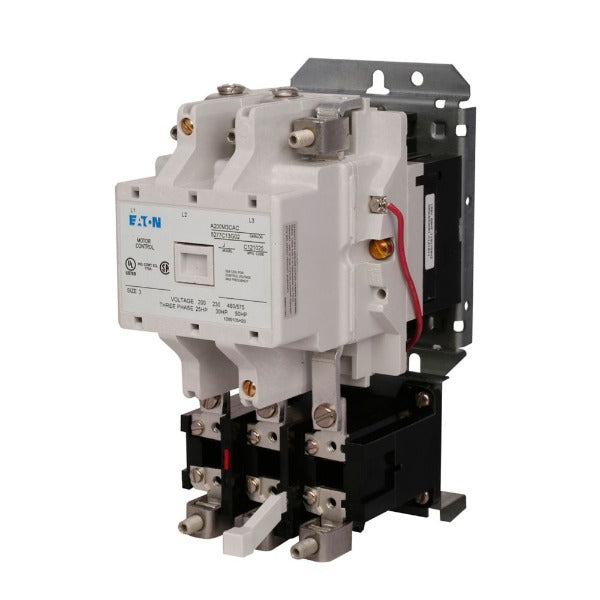

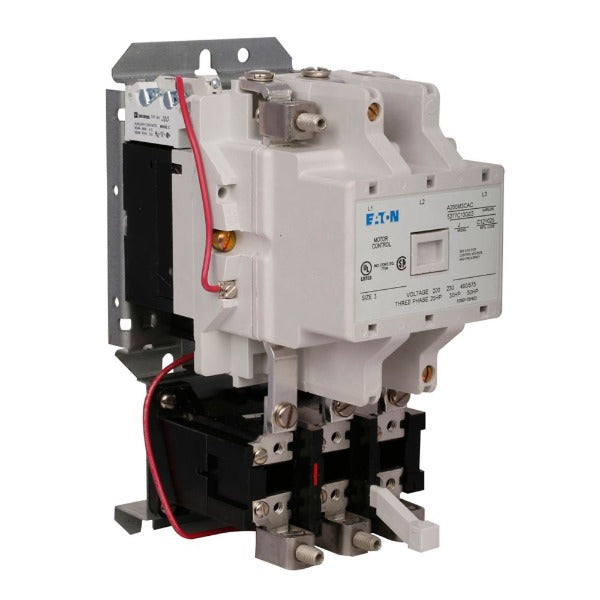

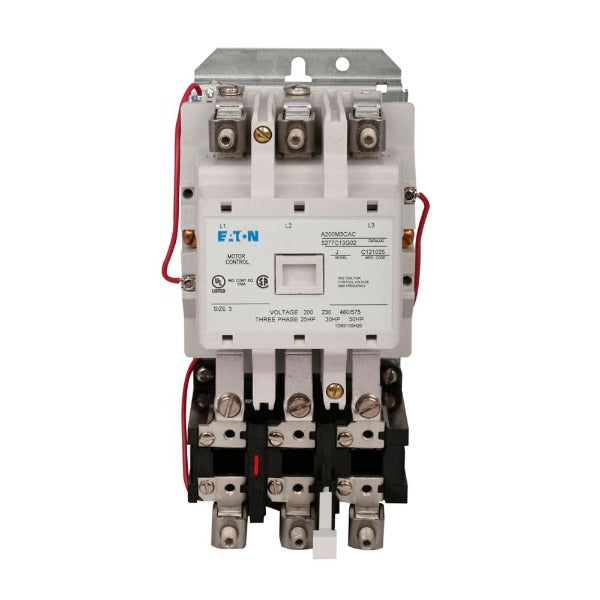

A200M3CB - Eaton Cutler-Hammer - 3 Pole 90 Amp 600 Volt Electric Motor Control Starter
Eaton Freedom NEMA motor control starter, Non-Reversing Starter, 200-208V/60 Hz coil voltage, 90A, Three-pole, Size 3, 25 hp at 208V, 30 hp at 240V, 50 hp at 480,600V, A200 series
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton A200 NEMA motor control |
| CATALOG NUMBER | A200M3CB |
| UPC | 786678231266 |
| PRODUCT LENGTH/DEPTH | 6.75 in |
| PRODUCT HEIGHT | 4.63 in |
| PRODUCT WIDTH | 6.63 in |
| PRODUCT WEIGHT | 9.3 lb |
| CERTIFICATIONS | UL Listed CSA Certified |
| CATALOG NOTES | For ambient compensated overload relay with auto-reset, add Suffix D. |
