Description

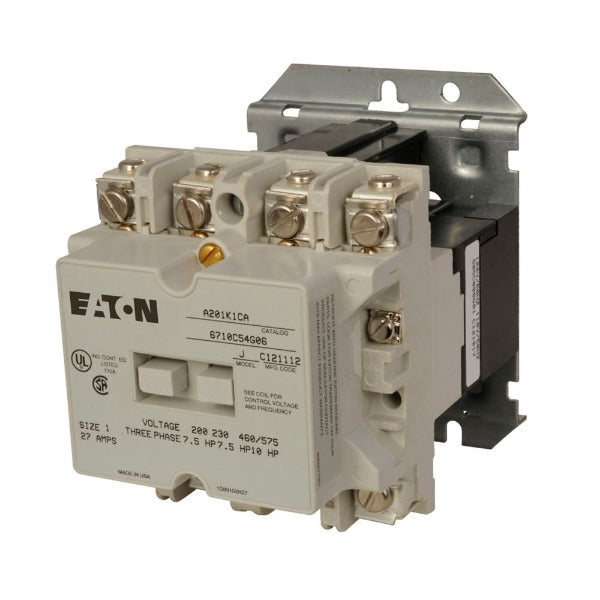

A201K1CA - Eaton Cutler-Hammer 27 Amp 3 Pole 600 Volt Non-Reversing Front Connected Contactors
Eaton Freedom NEMA motor control contactor, Non-Reversing Front connected contactors, 27A, Front connected, Three-pole open, Size: 1, A200 series, 120V at 60 Hz, 110V at 50 Hz coil
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton A200 NEMA motor control |
| CATALOG NUMBER | A201K1CA |
| UPC | 786678231532 |
| PRODUCT LENGTH/DEPTH | 4.61 in |
| PRODUCT HEIGHT | 3.31 in |
| PRODUCT WIDTH | 4.38 in |
| PRODUCT WEIGHT | 2.8 lb |
| WARRANTY | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| CERTIFICATIONS | CSA Certified UL Listed |
PRODUCT SPECIFICATIONS
| ACCESSORIES | Motor control |
| SIZE | 1 |
| SERIES | A200 |
| CONNECTION | Front |
| OPERATION | Full voltage non-reversing |
| VOLTAGE RATING | 120 V at 60 Hz, 110 V at 50 Hz |
| AMPERAGE RATING | 27A |
