Description

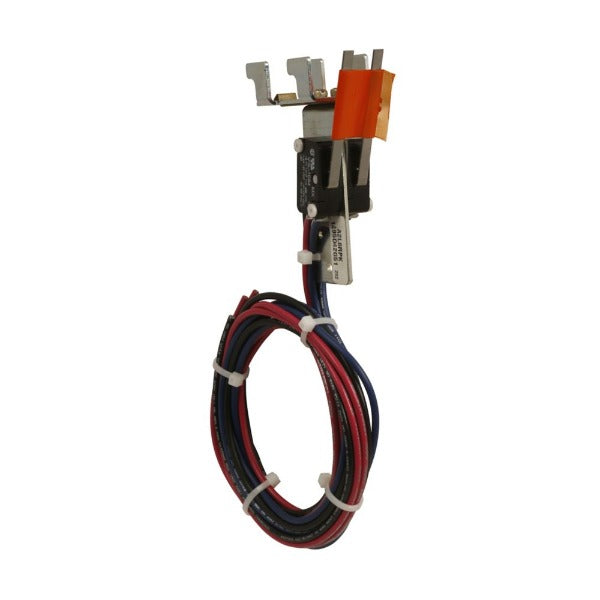

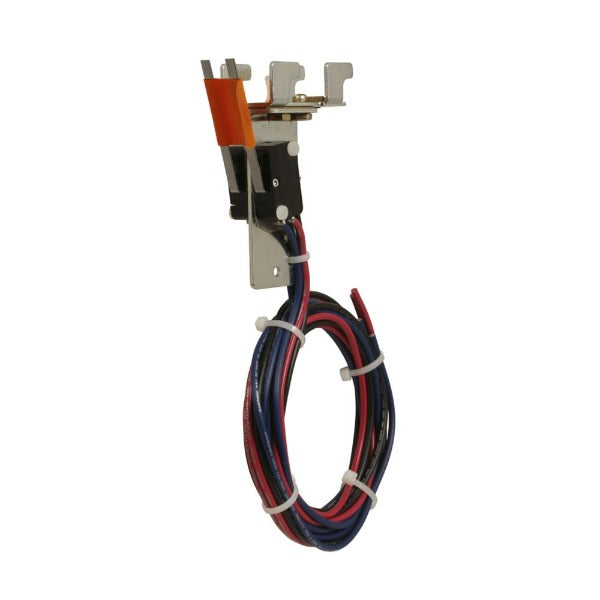

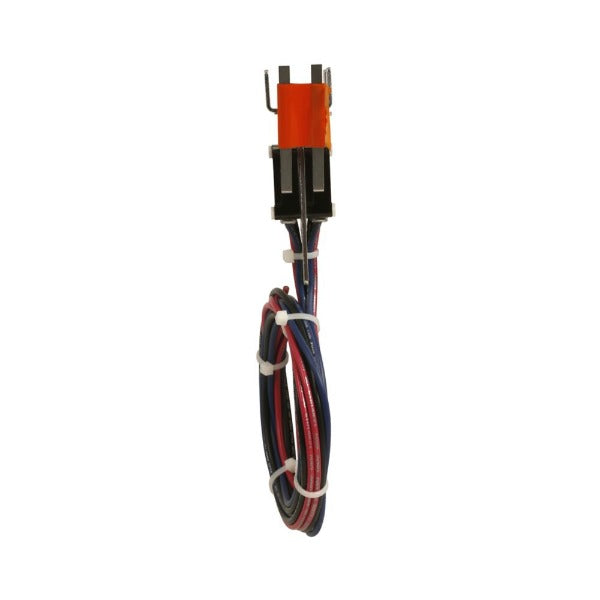

A2L1LPK - Eaton Cutler-Hammer - Molded Case Circuit Breaker Alarm Switch
Eaton molded case circuit breaker accessory alarm switch, Alarm switch factory installation kit, Pigtail leads, For type F-frame breakers, Frame J-K, Series C, 2MK-2BK, Left-hand mounting
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton molded case circuit breaker accessory alarm switch |
| CATALOG NUMBER | A2L1LPK |
| UPC | 786679149126 |
| PRODUCT LENGTH/DEPTH | 1 in |
| PRODUCT HEIGHT | 1 in |
| PRODUCT WIDTH | 1 in |
| PRODUCT WEIGHT | 0.1 lb |
| COMPLIANCES | Contact Manufacturer |
PRODUCT SPECIFICATIONS
| FRAME SIZE | Frame J-K |
| CONTACT CONFIGURATION | 2MK-2BK |
| SPECIAL FEATURES | Pigtail leads |
| SERIES | Series C |
| MOUNTING HARDWARE | Left-hand mounting |
| TYPE | Alarm switch factory installation kit |
| USED WITH | For type F-frame breakers |
| CONNECTION | Pigtail leads |
| MOUNTING METHOD | Left |
