Description

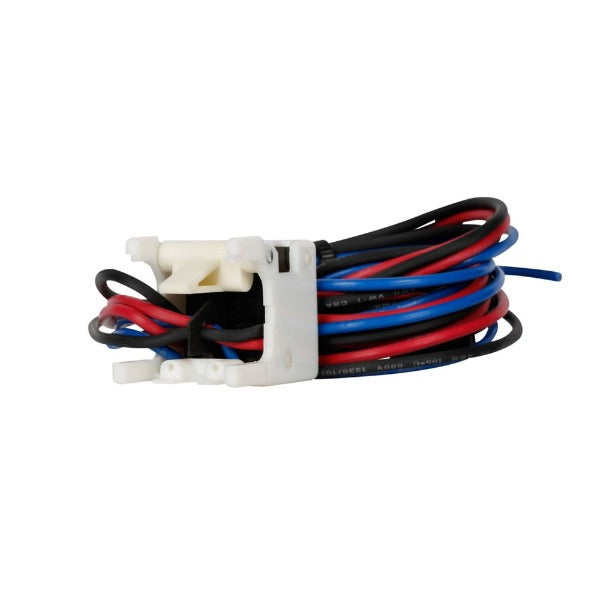

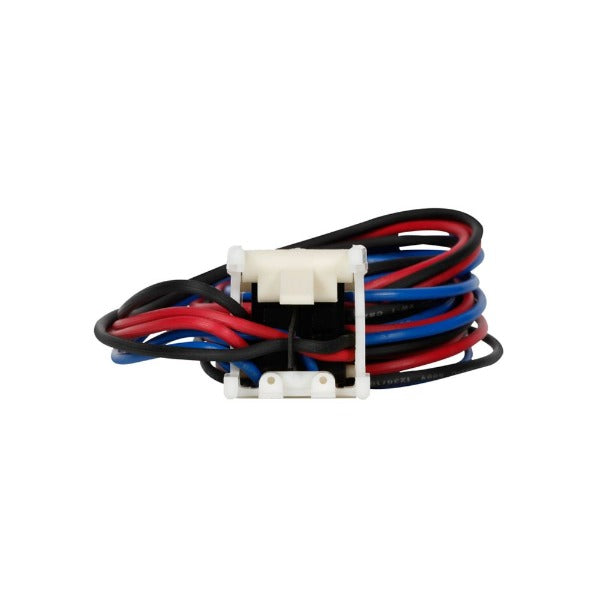

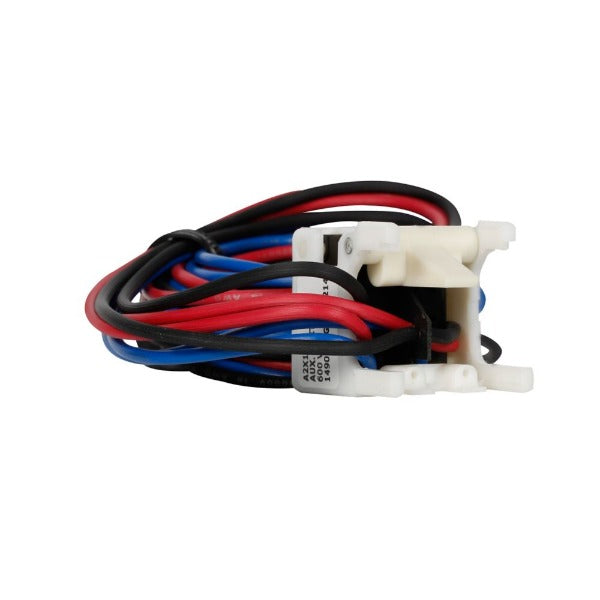

A2X1LPK - Eaton Cutler-Hammer - Molded Case Circuit Breaker Auxiliary Switch
Eaton molded case circuit breaker accessory auxiliary switch, A2X Auxiliary switch factory installation kit, Pigtail leads, For type F-frame HMCP breakers, Frame J-K, Series C, 2A-2B, Left-hand mounting
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton molded case circuit breaker accessory auxiliary switch |
| CATALOG NUMBER | A2X1LPK |
| UPC | 786679281581 |
| PRODUCT LENGTH/DEPTH | 3 in |
| PRODUCT HEIGHT | 3.2 in |
| PRODUCT WIDTH | 5.5 in |
| PRODUCT WEIGHT | 0.3 lb |
| COMPLIANCES | Contact Manufacturer |
PRODUCT SPECIFICATIONS
| FRAME SIZE | Frame J-K |
| CONTACT CONFIGURATION | 2A-2B |
| SPECIAL FEATURES | Pigtail leads |
| SERIES | Series C |
| MOUNTING HARDWARE | Left-hand mounting |
| TYPE | A2X Auxiliary switch factory installation kit |
| USED WITH | For type F-frame HMCP breakers |
| CONNECTION | Pigtail leads |
| MOUNTING METHOD | Left |
PRODUCT DATASHEET
