Description

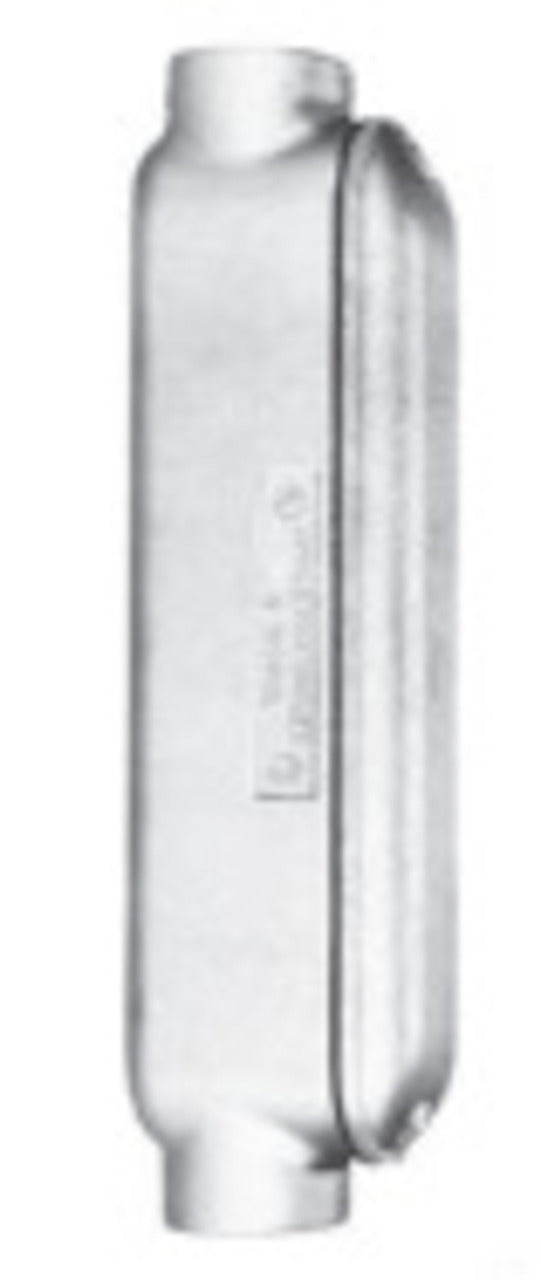

BC150M - Appleton - 1-1/2" Mogul Type C Malleable Iron Conduit Body with Cover/Gasket
The BC150M is a 11/2" iron Mogul Unilet 'C' conduit outlet body built for heavy-duty cable installations. Featuring the same reliable roller-assist hubs and neoprene-sealed design, it simplifies pulling large conductors while protecting insulation. The duplex-threaded cover and grounded construction meet NEC, UL, CSA, and NEMA specifications. With ample 93 in wiring volume, it suits challenging environments where large cable routing is required .
GENERAL SPECIFICATIONS
| Access Opening | Side |
| Configuration | C |
| Hub Location | Straight |
| Number of Hubs | 2 |
| Hub Size | 1-1/2 Inch |
| Size | 13.94 Inch Length x 3.13 Inch Width x 3.75 Inch Height |
| Installation | Threaded |
| Material | Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Screw) |
| Approval | UL 514B, CSA C22.2 |
| Used On | IMC/Threaded Rigid Metal Conduit |
| Brand Name | Unilets® |
| Additional Information | Wire Size (3) 3/0 AWG; Capacity 93 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1 |
