Description

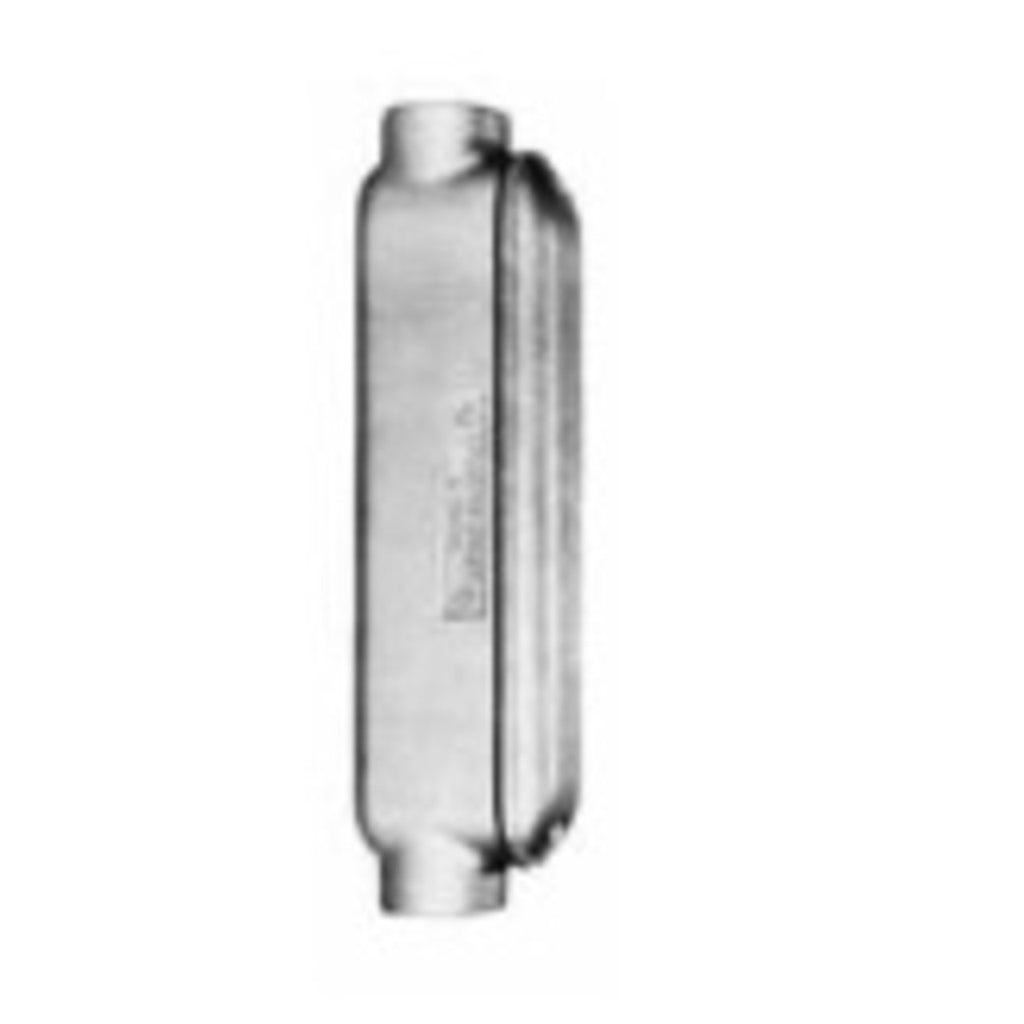

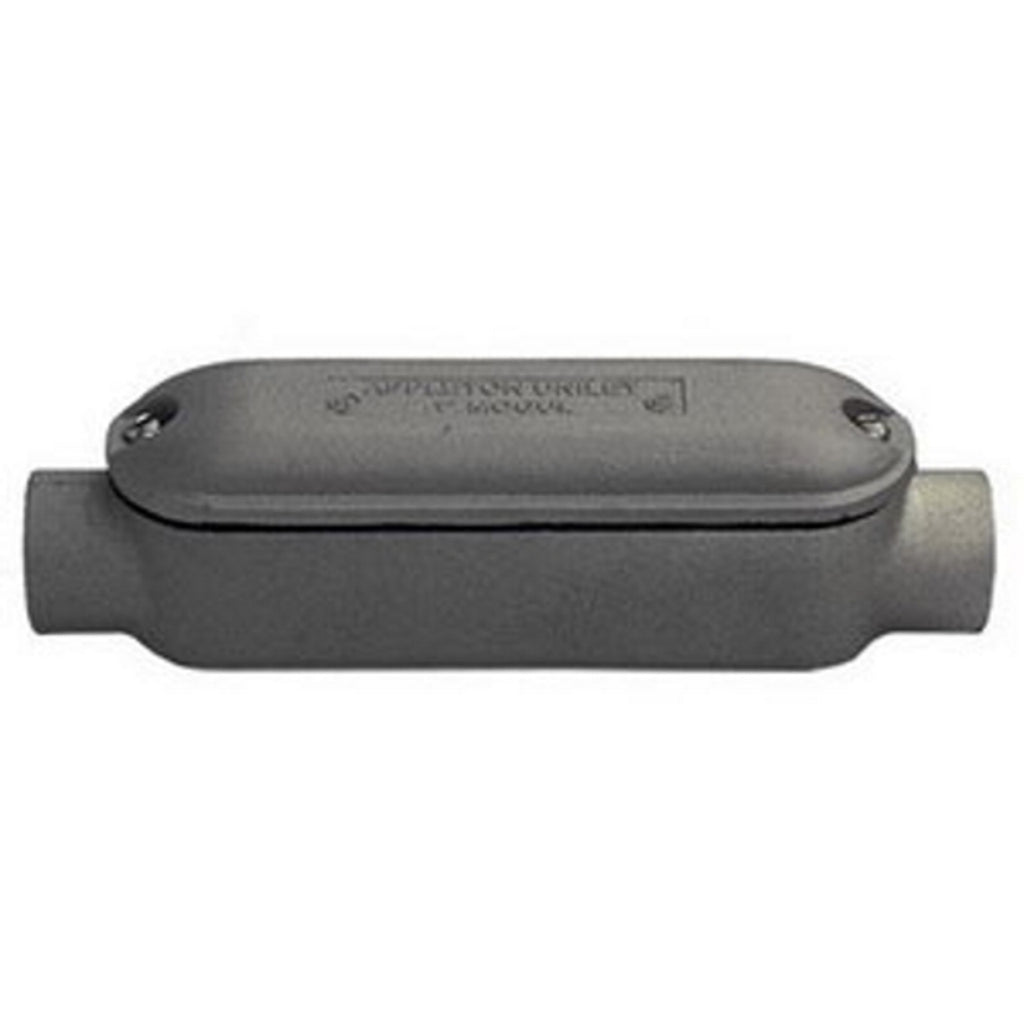

BC100M - Appleton - 1" Mogul Type C Malleable Iron Conduit Body with Cover/Gasket
The BC100M is a 1" 'C' style Mogul Unilet conduit outlet body with built-in rollers to ease cable pulling and reduce conduit friction. Made of malleable iron with a triple-coat finish (zinc, chromate, epoxy), it includes a neoprene gasket and captive stainless-steel cover screws. The smooth hub bushings protect conductor insulation, while tapered threads ensure rigid joints and ground continuity. Suitable for hazardous and industrial locations, it meets NEC/CEC and UL 514B, CSA, and NEMA FB-1 certifications - ideal for heavy cable installations needing pull and service access.
GENERAL SPECIFICATIONS
| Access Opening | Side |
| Configuration | C |
| Hub Location | Straight |
| Number of Hubs | 2 |
| Hub Size | 1 Inch |
| Size | 9.81 Inch Length x 2.38 Inch Width x 2.75 Inch Height |
| Installation | Threaded |
| Material | Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Screw) |
| Approval | UL 514B, CSA C22.2 |
| Used On | IMC/Threaded Rigid Metal Conduit |
| Brand Name | Unilets® |
| Additional Information | Wire Size (3) 2 AWG; Capacity 31 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1 |
PRODUCT DATASHEET
