Description

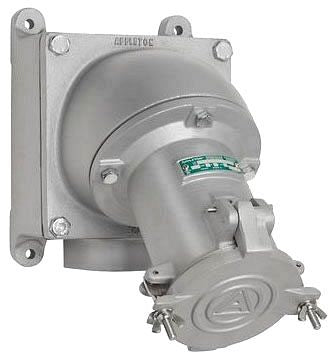

ADJA20044200 - Appleton - 200A 4-Pole 4-Wire Pin and Sleeve Receptacle
POSITIVE POLARIZATION TYPE; EPOXY POWDER COATED COPPER-FREE ALUMINUM MATERIAL; 4 WIRE(S); 600 VOLT AC 50/400 HERTZ 3-PHASE, 250 VOLT DC VOLTAGE RATING; 200 AMP CURRENT RATING; 4 POLE(S); WEATHERPROOF; 2 INCH HUB TYPE; SPRING; 1, SHELL GROUNDING STYLE; POWERTITE[TM] BRAND; WIRE SIZE 250 MCM TO 1/0 AWG; WIRE RECESS DIAMETER 0.687 INCH; CONTACT MATERIAL COPPER; INSULATING BLOCK MATERIAL GLASS FILLED POLYESTER; ENCLOSURE RATING NEMA 3/4/4X/FB-11; AMBIENT TEMPERATURE RATING -13 TO 104 DEG F; INCLUDES AJA MOUNTING BOX; APPLICATION MOTOR GENERATOR UNIT, WELDER, PUMP, COMPRESSOR AND CELLULAR RELAY STATION; APPROVAL UL 1682/1686/50E, CSA C22.2; APPLICABLE STANDARD NEMA NEC/CEC
GENERAL SPECIFICATIONS
| Type | Positive Polarization |
| Constructional Feature | Weatherproof |
| Voltage Rating | 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC |
| Current Rating | 200 Amp |
| Number of Poles | 4 |
| Number of Wires | 4 |
| Grounding Style | 1, Shell |
| Door Type | Spring |
| Hub Type | 2 Inch |
| Material | Epoxy Powder Coated Copper-Free Aluminum |
| Brand Name | Powertite™ |
| Additional Information | Wire Size 250 MCM to 1/0 AWG; Wire Recess Diameter 0.687 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 3/4/4X/FB-11; Ambient Temperature Rating -13 to 104 Deg F; Includes AJA Mounting Box; Application Motor Generator Unit, Welder, Pump, Compressor and Cellular Relay Station; Approval UL 1682/1686/50E, CSA C22.2; Applicable Standard NEMA NEC/CEC |
