Description
| Main | |
|---|---|
| Range of Product | PowerPact P |

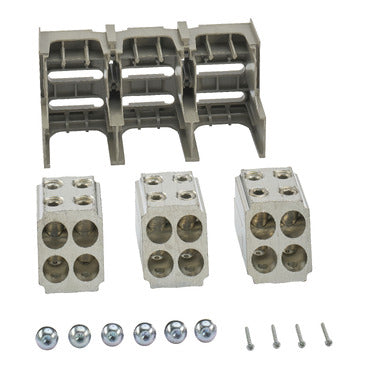

| Product or Component Type | Mechanical lug |
| Accessory / separate part category | Connection accessory |
| Quantity per Set | Set of 3 |
| Circuit breaker type | Standard |
| Complementary | |
| Line Rated Current | 1200 A |
| Material | Aluminium |
| Mounting Mode | Unit mount |
| Location of connection | DownstreamUpstream |
| AWG gauge | 350 kcmil aluminium/copper600 kcmil aluminium/copper |
| Tightening torque | 442.5 lbf.in (50 N.m) 0.1…0.5 in² (95…300 mm²) (AWG 3/0...600 kcmil) |
| Environment | |
| Product Certifications | ULCSA |
| Ordering and shipping details | |
| Category | US10DE201250 |
| Discount Schedule | 0DE2 |
| GTIN | 785901512905 |
| Returnability | Yes |
| Country of origin | US |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 5.500 in (13.970 cm) |
| Package 1 Width | 7.750 in (19.685 cm) |
| Package 1 Length | 11.630 in (29.540 cm) |
| Package weight(Lbs) | 4.239 lb(US) (1.923 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet
AL1200P6KU
AL1200P6KU
