Description

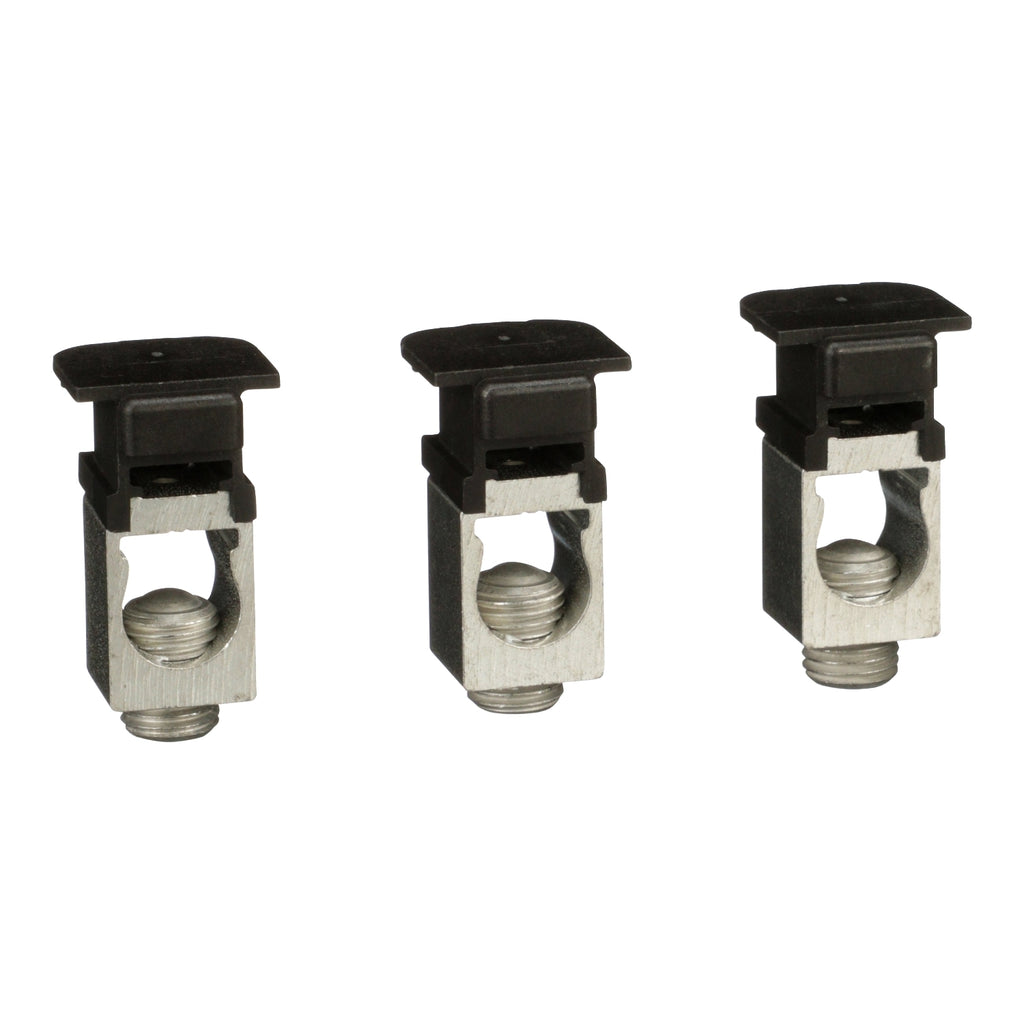

AL150HD - Schneider Electric - Square D Mechanical Lug Terminal Kit
The M-frame, P-frame circuit breakers have mechanical lugs standard on both ends of the unit-mounted circuit breakers. The M-frame and P-frame I-Line™ circuit breakers have mechanical lugs standard on the O/OFF end only. These lugs are suitable for use with copper or aluminum wire. Rear connectors, compression lugs and distribution lugs are available for special applications. Copper mechanical lugs are available for use with copper wire only. These lugs can be factory installed by adding an "LC" suffix, to the circuit breaker catalog number for standard copper lugs and "LD" suffix, for high-amp copper lugs (M-frame, P-frame circuit breakers only). This mechanical lughas a rated current of 1200A and material made of aluminium. This lug kit is rated at 500 kcmil. The mechanical lug kit complys to CSA & UL standards.
GENERAL SPECIFICATION
| Range of Product | PowerPact H |
| PowerPact J | |
| PowerPact L | |
| Product or Component Type | Mechanical lug |
| Accessory / separate part category | Connection accessory |
| Quantity per Set | Set of 4 |
| Complementary | |
| Poles description | 3P |
| Line Rated Current | 150…400 A |
| Material | Aluminium |
| Mounting Mode | Unit mount |
| I-Line | |
| Location of connection | Downstream |
| Kcmil size | 500 kcmil |
| Tightening torque | 44.3 lbf.in (5 N.m) 0.004…0.009 in² (2.5…6 mm²) (AWG 14...AWG 10) |
| Width | 0.874 in (22.200 mm) |
| Depth | 0.765 in (19.431 mm) |
| Height | 1.40 in (35.56 mm) |
| Environment | |
| Product Certifications | UL |
| CSA | |
| Ordering and shipping details | |
| Category | US10DE201103 |
| Discount Schedule | 0DE2 |
| GTIN | 785901841067 |
| Returnability | Yes |
| Country of origin | US |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.000 in (2.540 cm) |
| Package 1 Width | 3.000 in (7.620 cm) |
| Package 1 Length | 4.500 in (11.430 cm) |
| Package weight(Lbs) | 1.600 oz (45.359 g) |
PRODUCT DATASHEET
Schneider Electric_PowerPacT-JFrame-Molded-Case-Circuit-Breakers_AL150HD
