Description

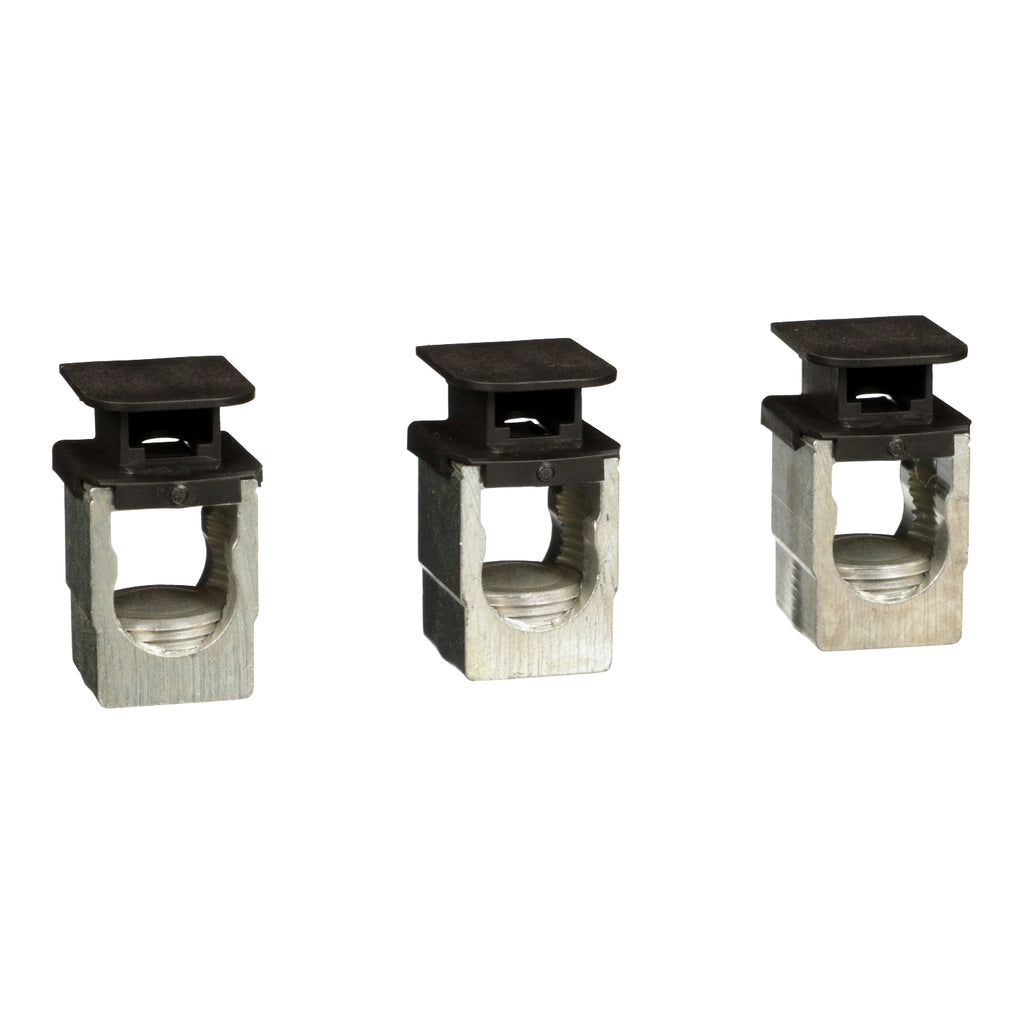

AL250JD - Schneider Electric - Square D Lug Terminal Kit
PowerPacT H- and J-Frame Molded-Case Circuit Breakers (150A and 250A) is a flexible, high performance offer certified to global standards. They are available with optional features such as Thermal magnetic or Micrologic™ trip protection 15–250A up to 600Vac and 250Vdc. They also come with a high performance UL listed interrupting ratings from 18 to 200kA at 480Vac. PowerPacT H- and J-Frame have common mounting holes, handle locations and trim dimensions with many shared accessories and auxiliaries. This PowerPacT mechanical lug is a connection accessory. This PowerPacT J-Frame accessory has a rated current of 200-250A and is made of aluminium and comes in set of 3. These accessories are UL, CSA, NOM, IEC, CCC certified and CE marked for global acceptance. This product comes with an 18 month warranty.
GENERAL SPECIFICATION
| Range of Product | PowerPact J |
| Product or Component Type | Mechanical lug |
| Accessory / separate part category | Connection accessory |
| Complementary | |
| Line Rated Current | 200…250 A |
| Material | Aluminium |
| Mounting Mode | By screws |
| Location of connection | Upstream |
| Downstream | |
| Cable material | Aluminium |
| Copper | |
| Quantity per Set | Set of 3 |
| Ordering and shipping details | |
| Category | US10DE201103 |
| Discount Schedule | 0DE2 |
| GTIN | 785901574835 |
| Returnability | Yes |
| Country of origin | US |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.984 in (2.500 cm) |
| Package 1 Width | 1.969 in (5.000 cm) |
| Package 1 Length | 3.543 in (9.000 cm) |
| Package weight(Lbs) | 3.563 oz (101.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 11.8 in (30 cm) |
| Package 2 Width | 11.8 in (30 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 12.346 lb(US) (5.600 kg) |
PRODUCT DATASHEET
Schneider Electric_TeSys-GV5-GV6-Motor-Circuit-Breakers_AL250JD
