Description

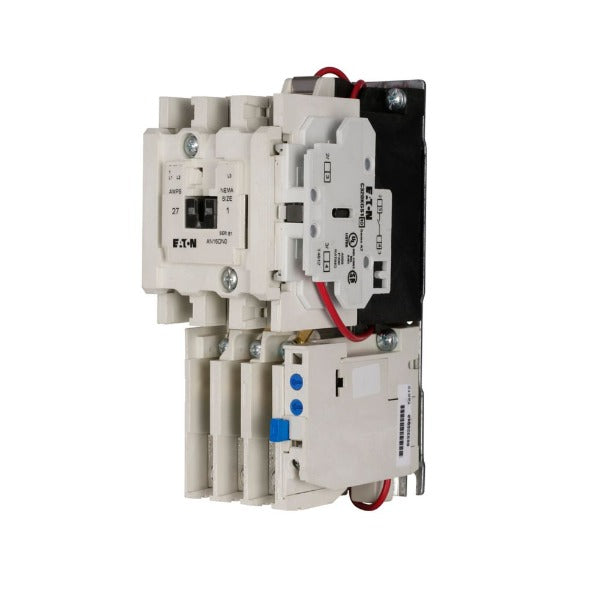

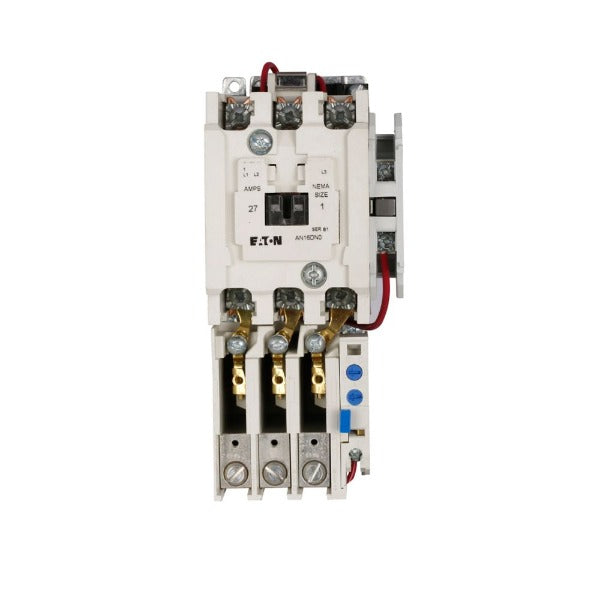

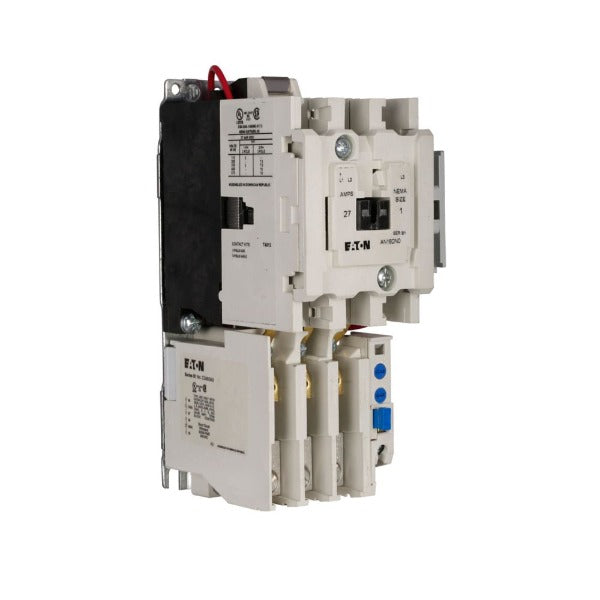

AN16DN0BB - Eaton Cutler-Hammer - 27 Amp 3 Pole 600 Volt Electric Motor Starters
Eaton Freedom NEMA motor control starter, Non-Reversing Reset Overload Relay Starter, 2 hp at 115V, 3 hp at 230V, 7-1/2 hp at 208,240V, 10 hp at 480,600V maximum horsepower, 240V/60 Hz or 220V/50 Hz coil voltage, 27A, Three-pole, Size 1
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton Freedom NEMA motor control starter |
| CATALOG NUMBER | AN16DN0BB |
| UPC | 782113971711 |
| PRODUCT LENGTH/DEPTH | 4.61 in |
| PRODUCT HEIGHT | 3.31 in |
| PRODUCT WIDTH | 4.38 in |
| PRODUCT WEIGHT | 2.6 lb |
| CERTIFICATIONS | UL Listed CSA Certified |
| CATALOG NOTES | Heater Packs must be purchased separately |
PRODUCT SPECIFICATIONS
| MOUNTING | Horizontal |
| SPECIAL FEATURES | Starter w/C306 bi-metal OLR |
| SIZE | 1 |
| HP RATING - MAX | 2 hp at 115V, 3 hp at 230V, 7-1/2 hp at 208,240V, 10 hp at 480,600V |
| PHASE | Single-phase, three-phase |
| AMPERAGE RATING | 27A |
