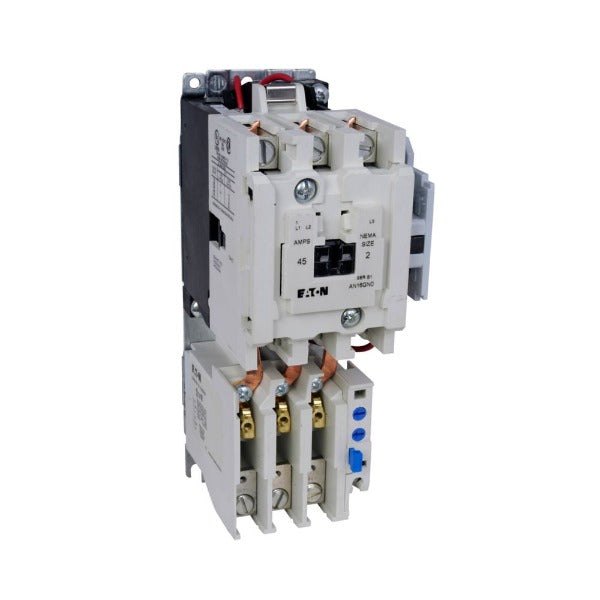

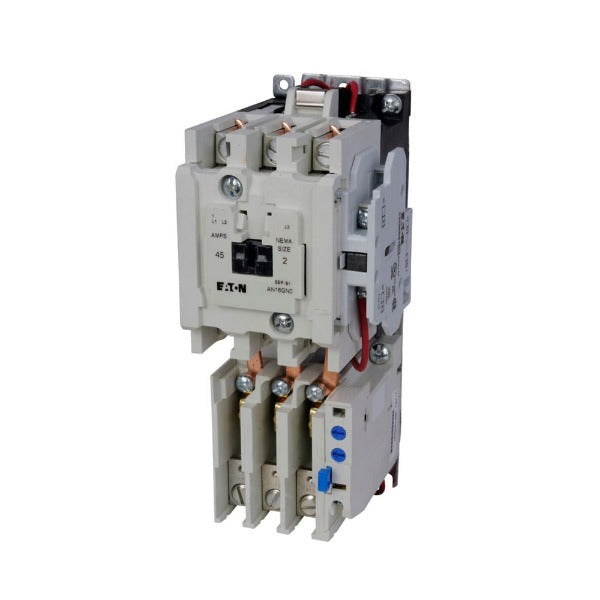

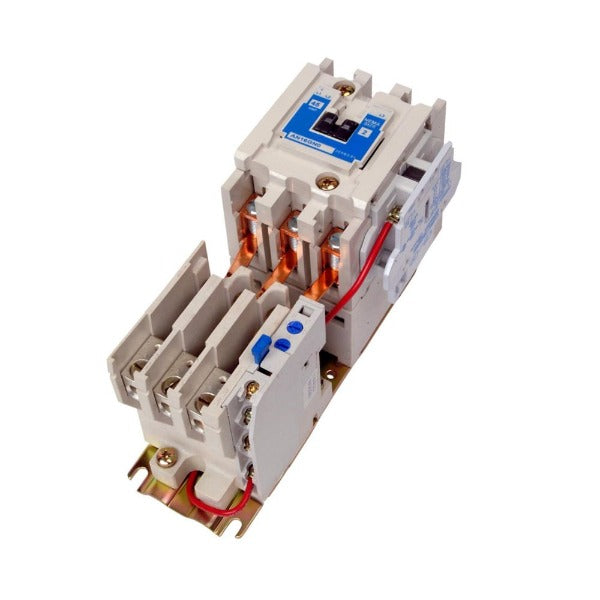

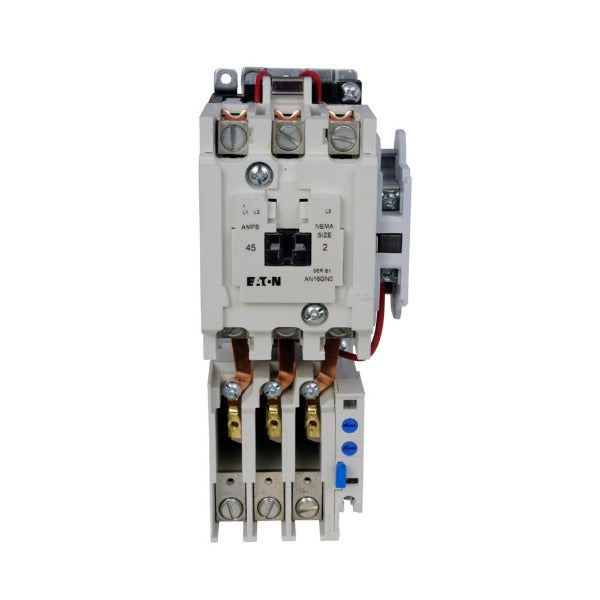

AN16GN0BB - Eaton Cutler-Hammer - 45 Amp 3 Pole 600 Volt Non-Reversing NEMA Electric Motor Starter
Eaton Freedom NEMA motor control starter, 3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V maximum horsepower, 240V/60 Hz or 220V/50 Hz coil voltage, 45A, 3P, Size 2
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton Freedom NEMA motor control starter |
| CATALOG NUMBER | AN16GN0BB |
| UPC | 782113971858 |
| PRODUCT LENGTH/DEPTH | 11 in |
| PRODUCT HEIGHT | 6 in |
| PRODUCT WIDTH | 7 in |
| PRODUCT WEIGHT | 4 lb |
| CERTIFICATIONS | CSA Certified UL Listed |
| CATALOG NOTES | Heater Packs must be purchased separately |
PRODUCT SPECIFICATIONS
| MOUNTING | Horizontal |
| SPECIAL FEATURES | Starter w/C306 bi-metal OLR |
| SIZE | 2 |
| HP RATING - MAX | 3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V |
| PHASE | Single-phase, three-phase |
| AMPERAGE RATING | 45A |
