Description

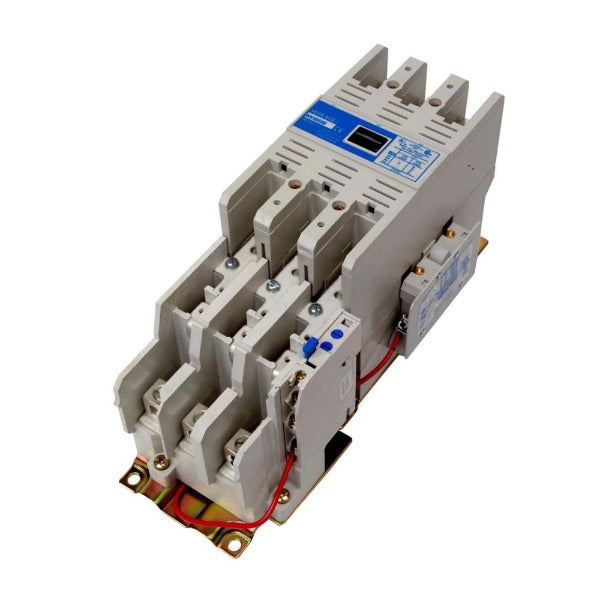

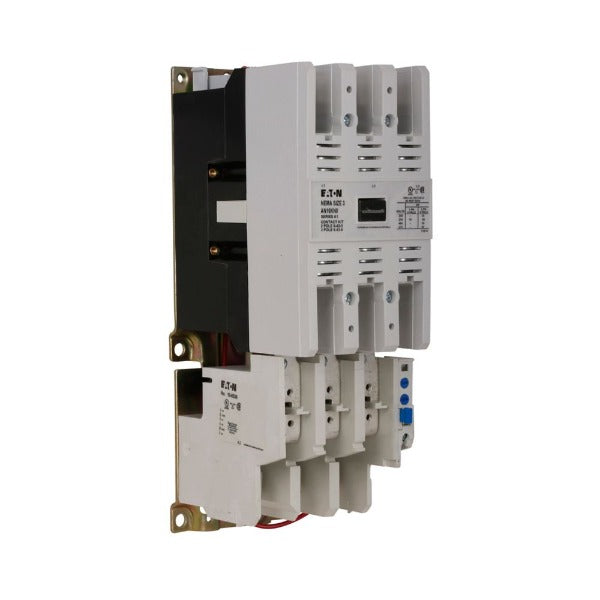

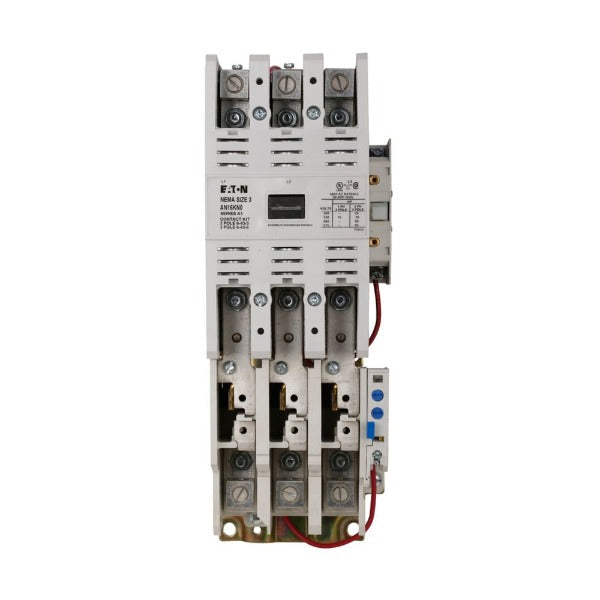

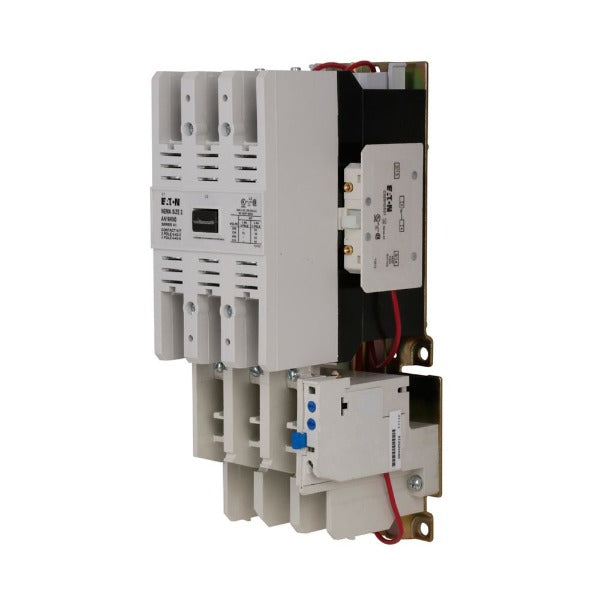

AN16KN0C - Eaton Cutler-Hammer - 90 Amp 3 Pole 600 Volt Non-Reversing NEMA Electric Motor Starter
Eaton Freedom NEMA Starter, Full voltage non-reversing, C306 bi-metal overload relay, NEMA Size 3 open enclosure - 90 A, Horizontal mounting, 480/60 or 440/50 coil voltage
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton Freedom NEMA motor control starter |
| CATALOG NUMBER | AN16KN0C |
| UPC | 782113622453 |
| PRODUCT LENGTH/DEPTH | 6.75 in |
| PRODUCT HEIGHT | 4.63 in |
| PRODUCT WIDTH | 6.63 in |
| PRODUCT WEIGHT | 9.3 lb |
| CERTIFICATIONS | UL Listed CSA Certified |
| CATALOG NOTES | Heater Packs must be purchased separately |
PRODUCT SPECIFICATIONS
| MOUNTING | Horizontal |
| OVERLOAD RELAY | C306 bi-metal |
| SPECIAL FEATURES | Starter w/C306 bi-metal OLR |
| SIZE | 3 |
| COIL VOLTAGE | 480/60 or 440/50 |
| NEMA FRAME SIZE | NEMA Size 3 |
| RELAY | C306 bi-metal |
| TYPE | Starter |
| PHASE | Three-phase |
| CONFIGURATION | Non-reversing |
| HORSEPOWER | 25 hp at 208 V, 30 hp at 240 V, 50 hp at 480/600 V |
| AMPERAGE RATING | 90 A |
