Description

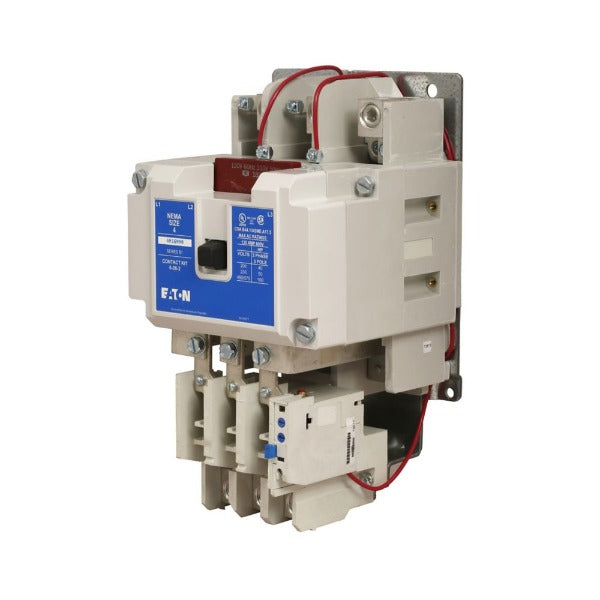

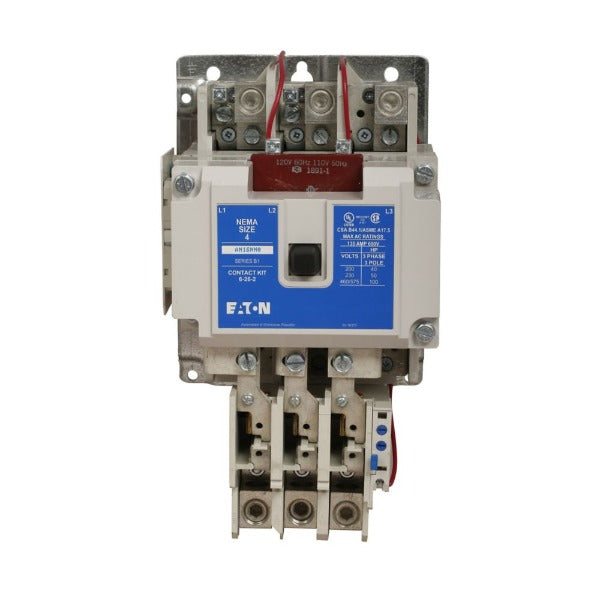

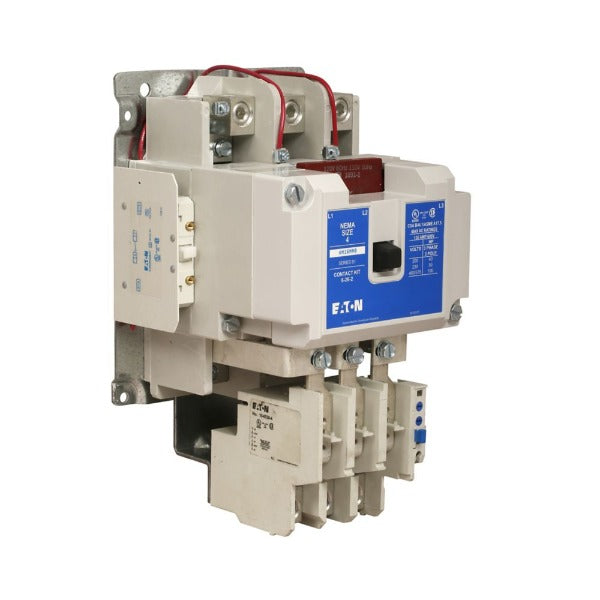

AN16NN0C - Eaton Cutler Hammer 135 Amp 3 Pole 600 Volt Non-Reversing Starter
Eaton Freedom NEMA Starter, Full voltage non-reversing, C306 bi-metal overload relay, NEMA Size 4 open enclosure - 135 A, Horizontal mounting, 480/60 or 440/50 coil voltage
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton Freedom NEMA motor control starter |
| CATALOG NUMBER | AN16NN0C |
| UPC | 782113622507 |
| PRODUCT LENGTH/DEPTH | 6.75 in |
| PRODUCT HEIGHT | 4.63 in |
| PRODUCT WIDTH | 6.63 in |
| PRODUCT WEIGHT | 9.3 lb |
| CERTIFICATIONS | UL Listed CSA Certified |
| CATALOG NOTES | Heater Packs must be purchased separately |
| Product Type |
Motor control starter
|
PRODUCT SPECIFICATIONS
| NEMA frame size |
NEMA Size 4
|
| Relay |
C306 bi-metal
|
| Type |
Starter
|
| Special features |
Starter w/C306 bi-metal OLR
|
| Full load current range |
480 V at 60 Hz, 440 V at 50 Hz
|
| Configuration |
Non-reversing
|
| Phase |
Three-phase
|
| Number of poles |
Three-pole
|
| Amperage Rating |
135 A
|
| Size |
4
|
| Horsepower |
40 hp at 208 V, 50 hp at 240 V, 100 hp at 480/600 V
|
| Mounting |
Horizontal
|
| Overload relay |
C306 bi-metal
|
| Coil voltage |
480/60 or 440/50
|
