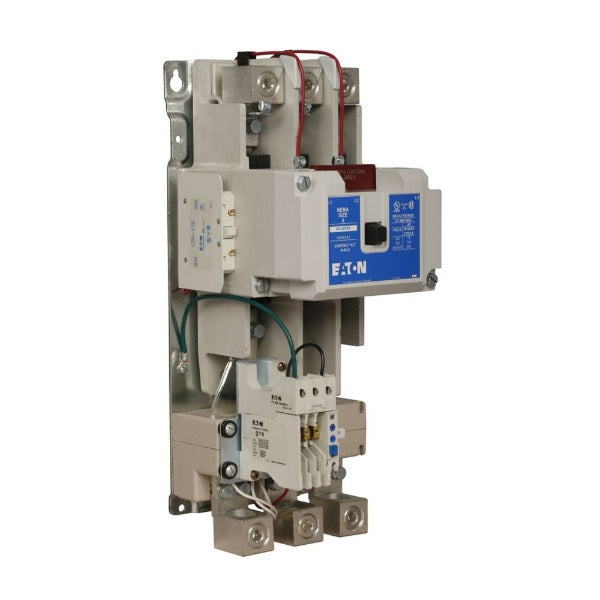

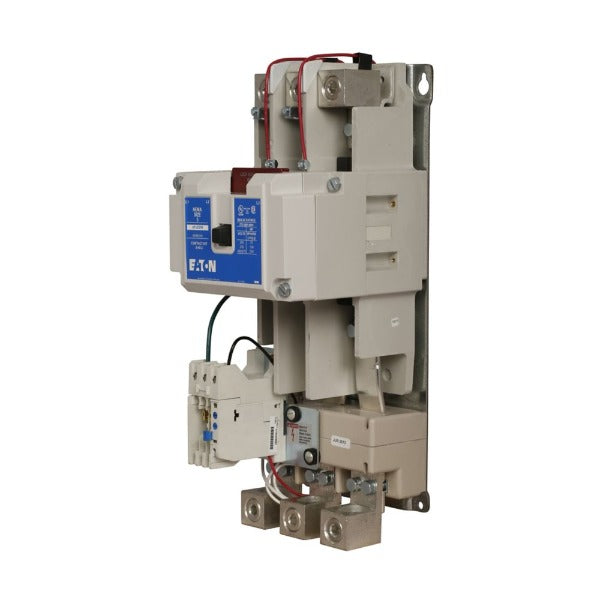

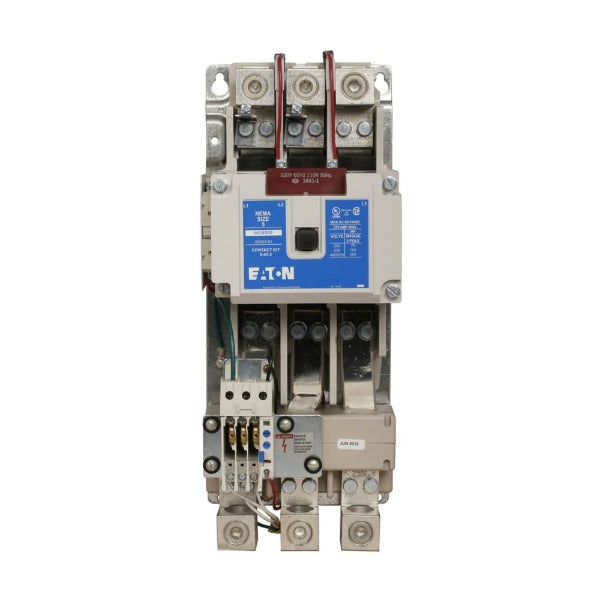

AN16SN0AB - Eaton Cutler-Hammer 270 Amp 3 Pole 120 Volt Non-Reversing NEMA Starter
Eaton Freedom NEMA motor control starter, NEMA Freedom Series Non-Reversing Reset Overload Relay Starter, 75 hp at 208V, 100 hp at 240V, 200 hp at 480,600V maximum horsepower, 120V/60 Hz or 110V/50 Hz coil voltage, 270A, Three-pole, Size 5
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton Freedom NEMA motor control starter |
| CATALOG NUMBER | AN16SN0AB |
| UPC | 782113971889 |
| PRODUCT LENGTH/DEPTH | 7.75 in |
| PRODUCT HEIGHT | 7.22 in |
| PRODUCT WIDTH | 12 in |
| PRODUCT WEIGHT | 25 lb |
| CERTIFICATIONS | UL Listed CSA Certified |
| CATALOG NOTES | Heater Packs must be purchased separately |
| Product Type |
Motor control starter
|
PRODUCT SPECIFICATIONS
| Special features |
Starter w/C306 bi-metal OLR
|
| Phase |
Three-phase
|
| Number of poles |
Three-pole
|
| Amperage Rating |
270A
|
| Size |
5
|
| Horsepower |
75 hp at 208 V, 100 hp at 240 V, 200 hp at 480/600 V
|
| Mounting |
Horizontal
|
