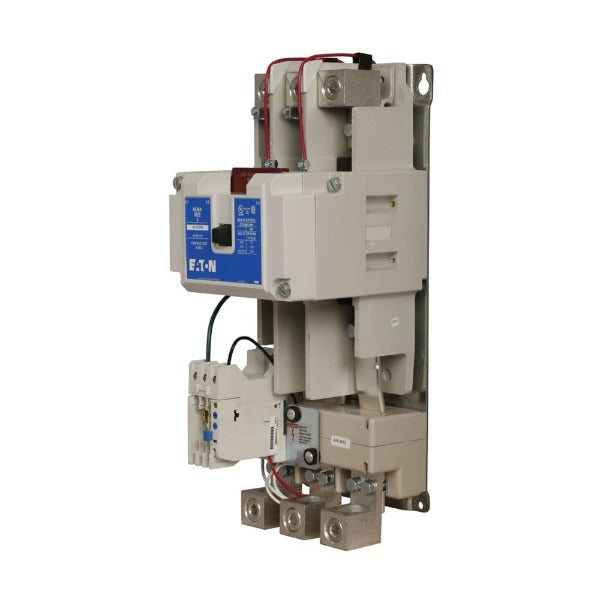

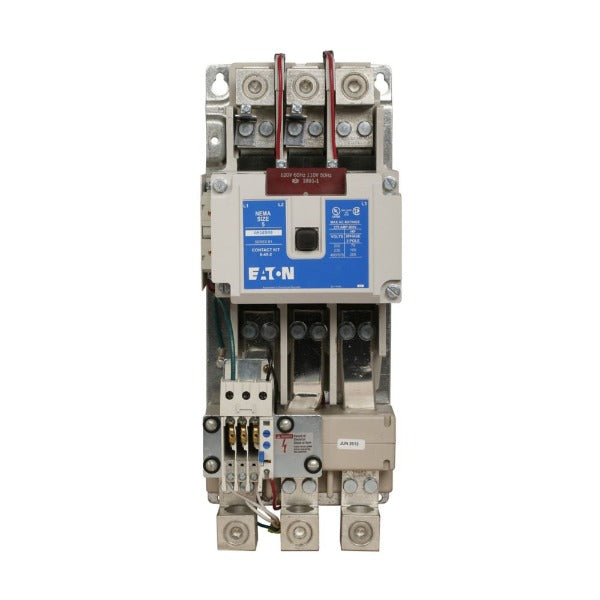

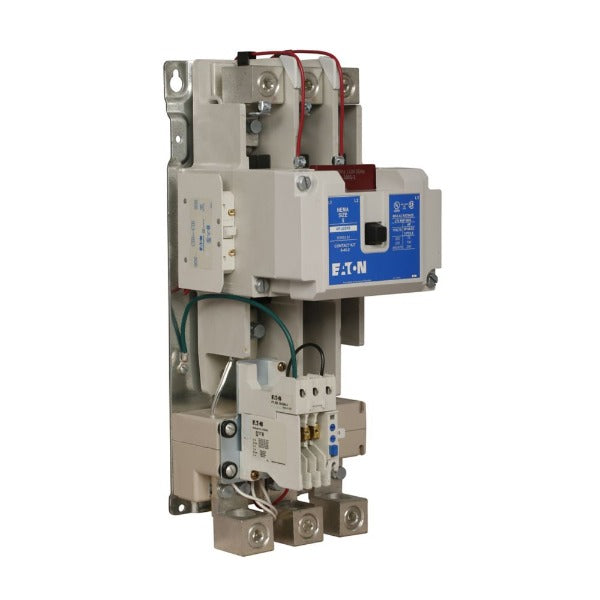

AN16SN0BB - Eaton Cutler-Hammer - 270 Amp 3 Pole 600 Volt Electric Motor Starters
Eaton Freedom NEMA motor control starter, NEMA Freedom Series Non-Reversing Reset Overload Relay Starter, 75 hp at 208V, 100 hp at 240V, 200 hp at 480,600V maximum horsepower, 240V/60 Hz or 220V/50 Hz coil voltage, 270A, Three-pole, Size 5
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton Freedom NEMA motor control starter |
| CATALOG NUMBER | AN16SN0BB |
| UPC | 782113058986 |
| PRODUCT LENGTH/DEPTH | 7.75 in |
| PRODUCT HEIGHT | 7.22 in |
| PRODUCT WIDTH | 12 in |
| PRODUCT WEIGHT | 25 lb |
| CERTIFICATIONS | CSA Certified UL Listed |
| CATALOG NOTES | Heater Packs must be purchased separately |
| Product Type |
Motor control starter
|
PRODUCT SPECIFICATIONS
| MOUNTING | Horizontal |
| SPECIAL FEATURES | Starter w/C306 bi-metal OLR |
| SIZE | 5 |
| PHASE | Three-phase |
| HORSEPOWER | 75 hp at 208 V, 100 hp at 240 V, 200 hp at 480/600 V |
| AMPERAGE RATING | 270A |
