Description

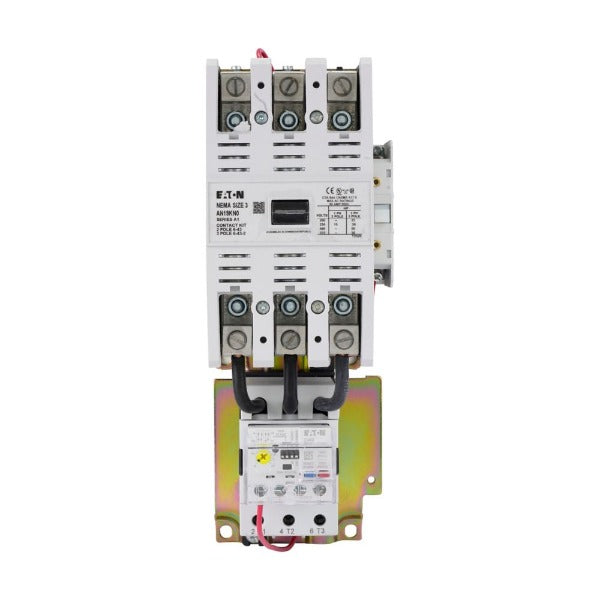

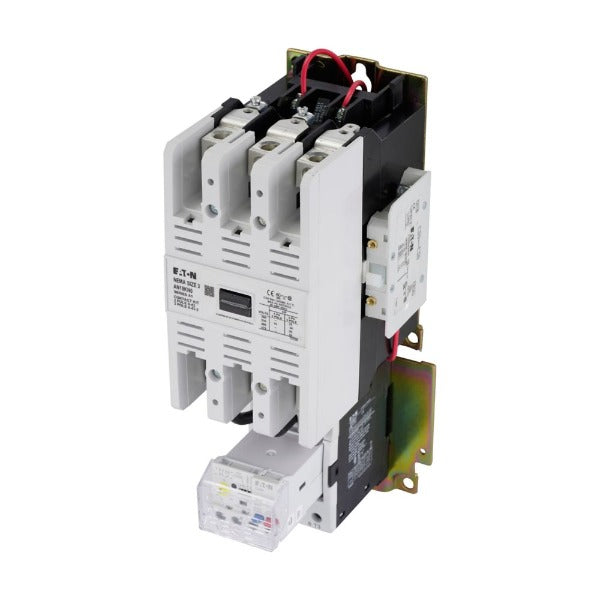

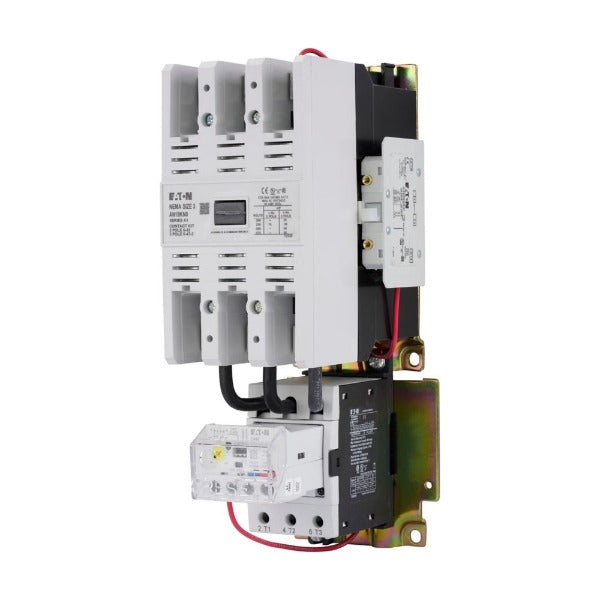

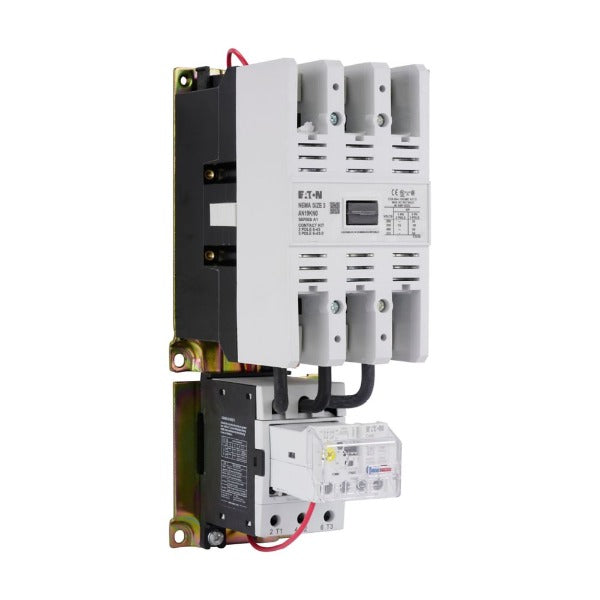

AN19KN0A5E100 - Eaton Cutler-Hammer 90 Amp 3 Pole 600 Volt Electric Motor Starter
Eaton Freedom NEMA Starter, Full voltage non-reversing, C440 electronic overload relay, NEMA Size 3 open enclosure - 90 A, Horizontal mounting, 120/60 or 110/50 coil voltage, C440 standard feature set - 20–100 A
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton Freedom NEMA motor control starter |
| CATALOG NUMBER | AN19KN0A5E100 |
| UPC | 786685415529 |
| PRODUCT LENGTH/DEPTH | 5.92 in |
| PRODUCT HEIGHT | 11.4 in |
| PRODUCT WIDTH | 4.09 in |
| PRODUCT WEIGHT | 11 lb |
| COMPLIANCES | RoHS Compliant |
| CERTIFICATIONS | UL CSA CE NEMA |
| Product Type |
Motor control starter
|
PRODUCT SPECIFICATIONS
| NEMA frame size |
NEMA Size 3
|
| Relay |
C440 electronic
|
| Type |
Starter
|
| Special features |
With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
|
| Configuration |
Non-reversing
|
| Amperage Rating |
90 A
|
| Size |
3
|
| Mounting |
Horizontal
|
| Overload relay |
C440 electronic
|
| Coil voltage |
120/60 or 110/50
|
PRODUCT DATASHEET
