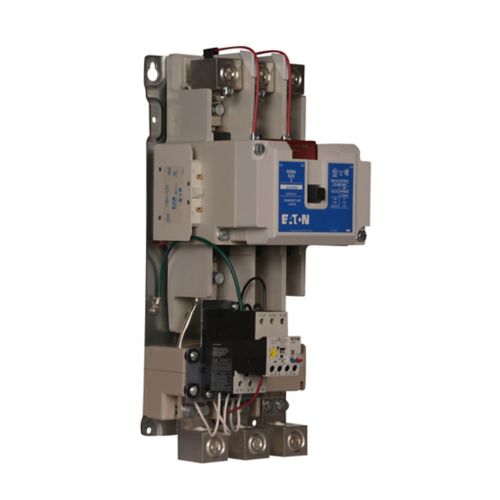

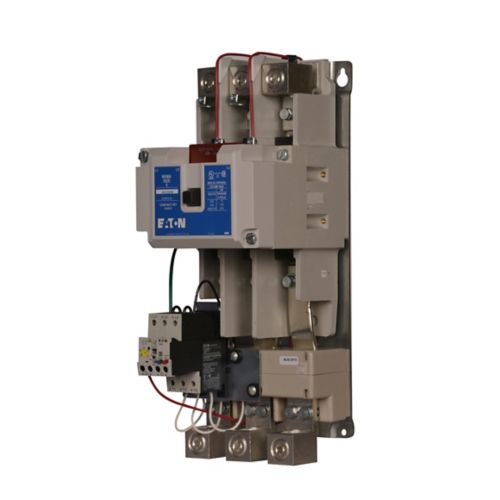

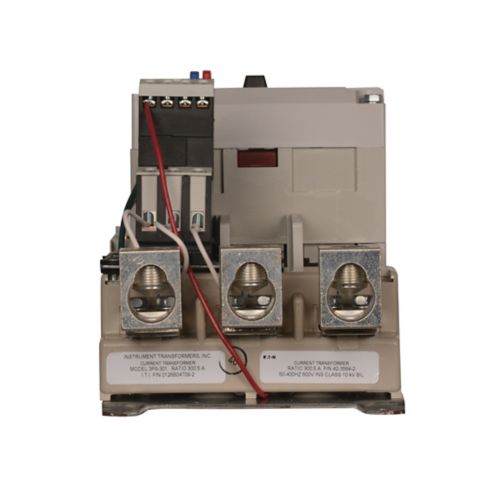

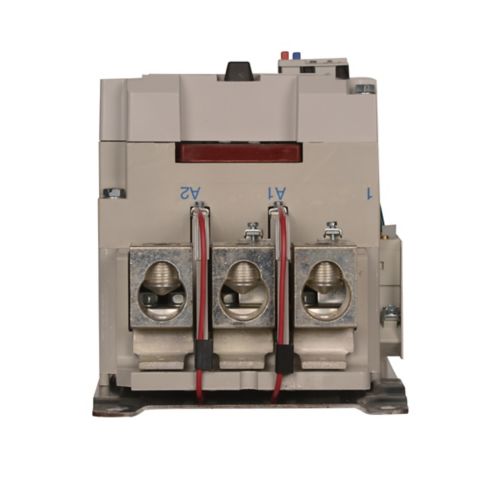

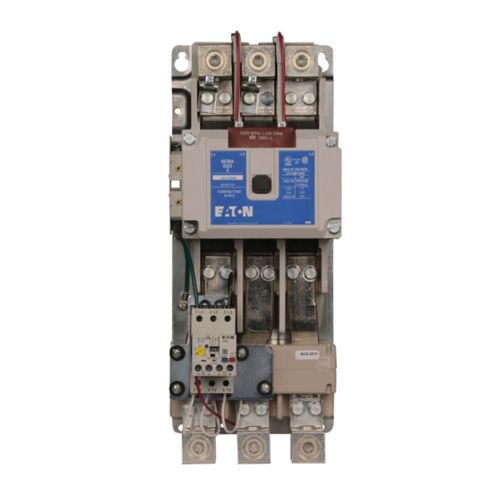

AN19SN0A5E300 - Eaton - 270 A Horizontal Mounting Freedom Nema Starter
Eaton Freedom NEMA Starter, Full voltage non-reversing, C440 electronic overload relay, NEMA Size 5 open enclosure - 270 A, Horizontal mounting, 120/60 or 110/50 coil voltage, C440 standard feature set - 60–300 A
GENERAL SPECIFICATIONS
| Product Name |
Eaton Freedom NEMA motor control starter
|
| Catalog Number |
AN19SN0A5E300
|
| UPC |
786685415765
|
| Product Length/Depth |
8.08 in
|
| Product Height |
17.81 in
|
| Product Width |
7 in
|
| Product Weight |
34.3 lb
|
| Compliances |
RoHS Compliant
|
| Certifications |
UL
CSA CE NEMA |
| Product Type |
Motor control starter
|
PRODUCT SPECIFICATIONS
| NEMA frame size |
NEMA Size 5
|
| Relay |
C440 electronic
|
| Type |
Starter
|
| Special features |
With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
|
| Configuration |
Non-reversing
|
| Amperage Rating |
270 A
|
| Size |
5
|
| Mounting |
Horizontal
|
| Overload relay |
C440 electronic
|
| Coil voltage |
120/60 or 110/50
|
