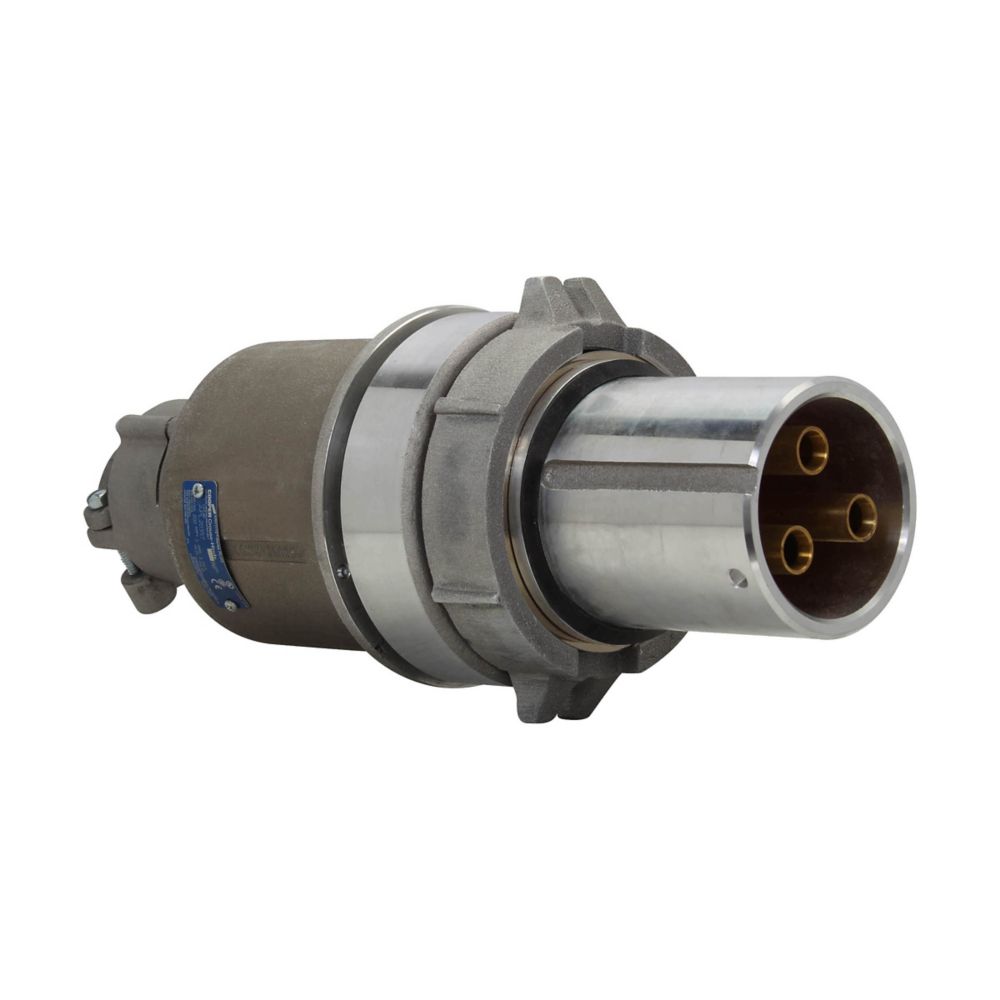

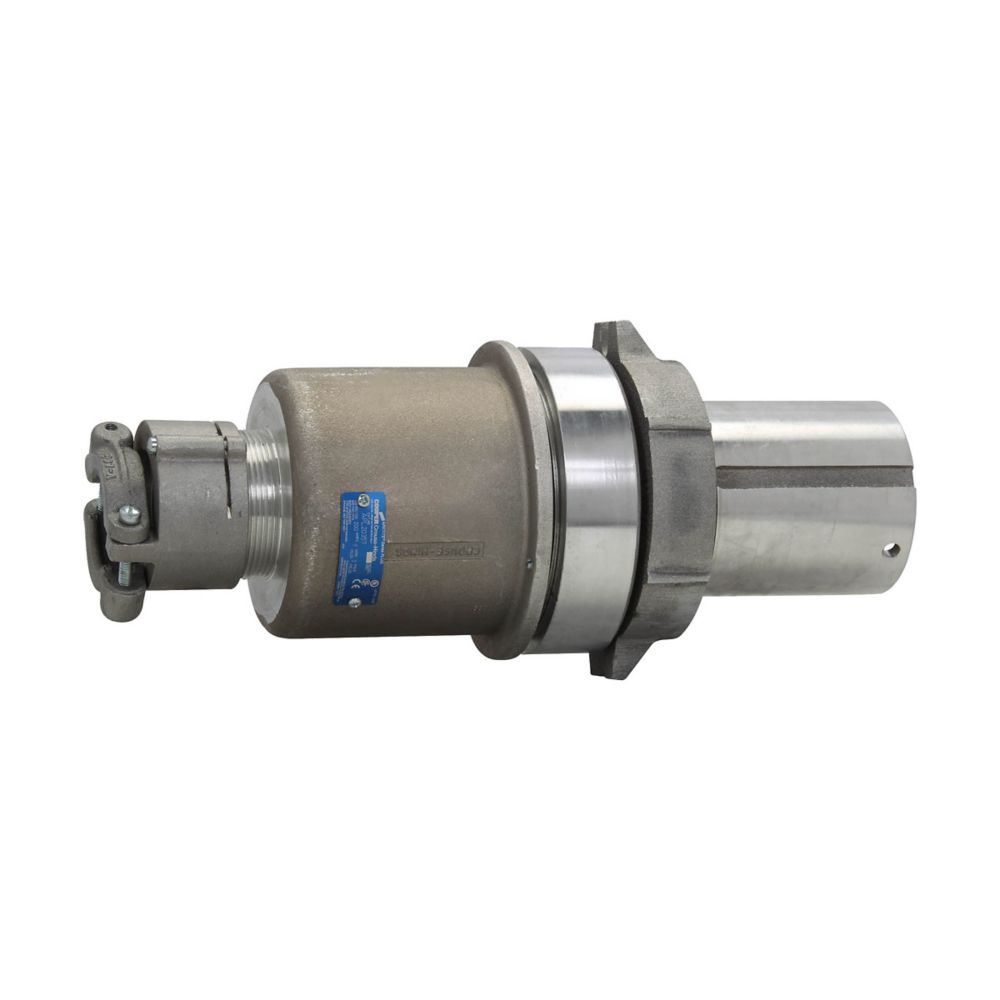

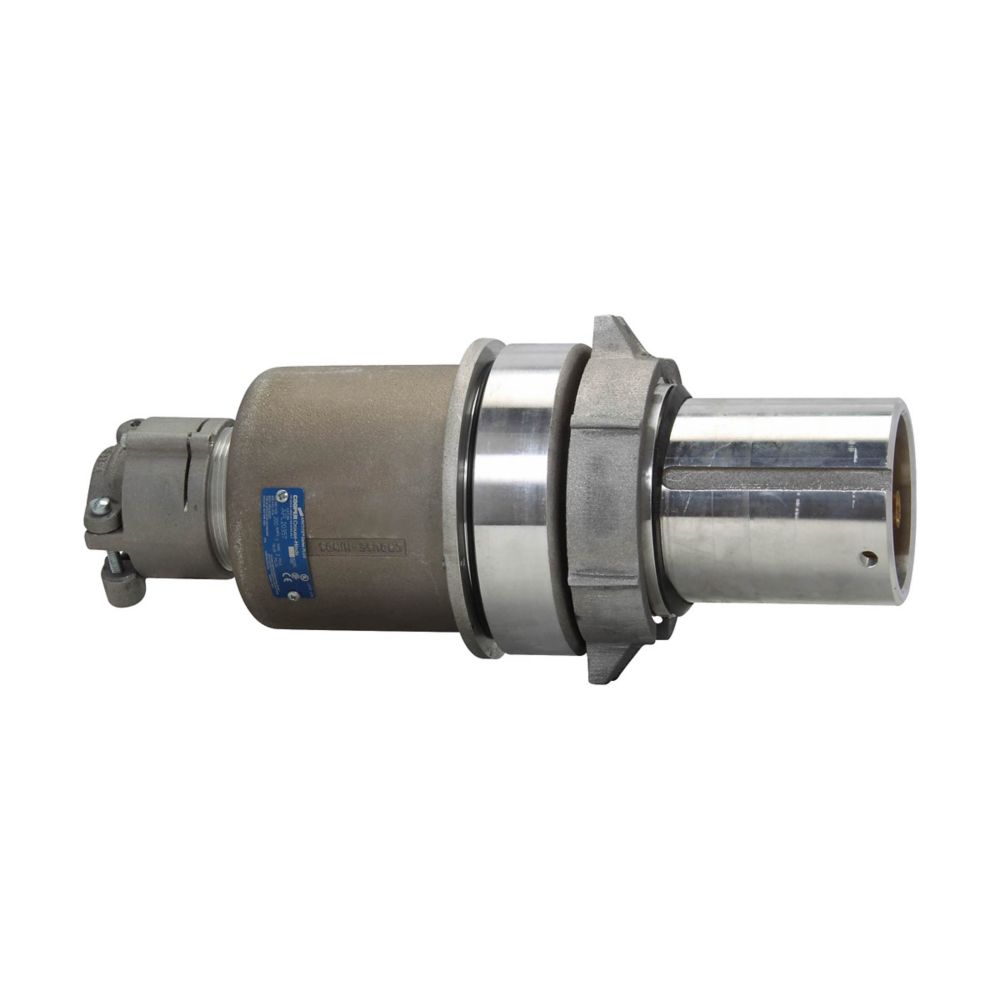

AP20467 - Crouse Hinds - 200 Amp Arktite Receptacle, Aluminum
AP20467 - Crouse Hinds - 200 Amp Arktite Receptacle, Aluminum
AP20467 - Crouse Hinds - 200 Amp Arktite Receptacle, Aluminum
Roll over image to zoom in Click on image to zoom
AP20467 - Crouse Hinds - 200 Amp Arktite Receptacle, AluminumAP20467 - Crouse Hinds - 200 Amp Arktite Receptacle, AluminumAP20467 - Crouse Hinds - 200 Amp Arktite Receptacle, Aluminum

AP20467 - Crouse Hinds - 200 Amp Arktite Receptacle, Aluminum

Crouise HindsSKU: CRHAP20467
Price:
$1,182.08
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

Product Details - AP20467

GENERAL SPECIFICATIONS

Product Name Eaton Crouse-Hinds series Arktite AP plug
Catalog Number AP20467
UPC 782274039909
Product Length/Depth 14.75 in
Product Height 6.75 in
Product Width 6.75 in
Product Weight 12.25 lb
Product Type Plug

CERTIFICATIONS AND COMPLIANCES

Area classification Ordinary/Non-Hazardous Locations
Standards type NEC/CEC
NEMA Rating 3R

PRODUCT SPECIFICATIONS

Amperage Rating 200A
Voltage rating 600 Vac/250 Vdc
Frequency rating 50 to 400 Hz
Grounding type Style 2
Configuration Three-wire, four-pole
Cable diameter 1.375-1.875"
Termination style Crimp/solder
Wire well size 0.56" max
Material Copper-free aluminum
Product Datasheet
AP20467
