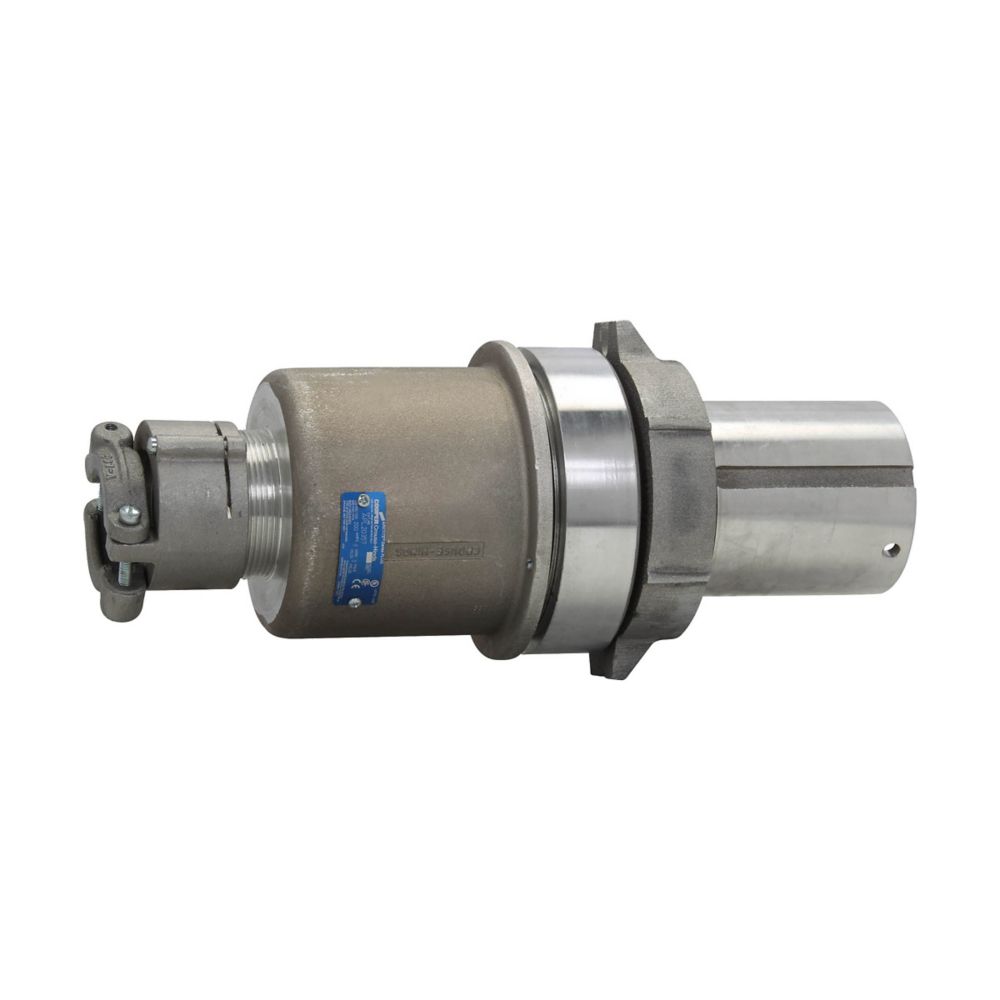

AP20468 - Eaton Crouse-Hinds Series - 0.56" Arktite AP Plug
Eaton Crouse-Hinds series Arktite AP plug, 200A, 1.875-2.500", Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Reversed contacts, Crimp/solder, 600 Vac/250 Vdc, 0.56" max
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series Arktite AP plug |
| Catalog Number |
AP20468 |
| UPC |
782274040004 |
| Product Length/Depth |
14.75 in |
| Product Height |
6.75 in |
| Product Width |
6.75 in |
| Product Weight |
13.15 lb |
PRODUCT SPECIFICATIONS
| Amperage Rating |
200A |
| Voltage rating |
600 Vac/250 Vdc |
| Frequency rating |
50 to 400 Hz |
| Grounding type |
Style 2 |
| Configuration |
Three-wire, four-pole |
| Cable diameter |
1.875-2.500" |
| Termination style |
Crimp/solder |
| Wire well size |
0.56" max |
| Material |
Copper-free aluminum |
| Special features |
Reversed contacts |
