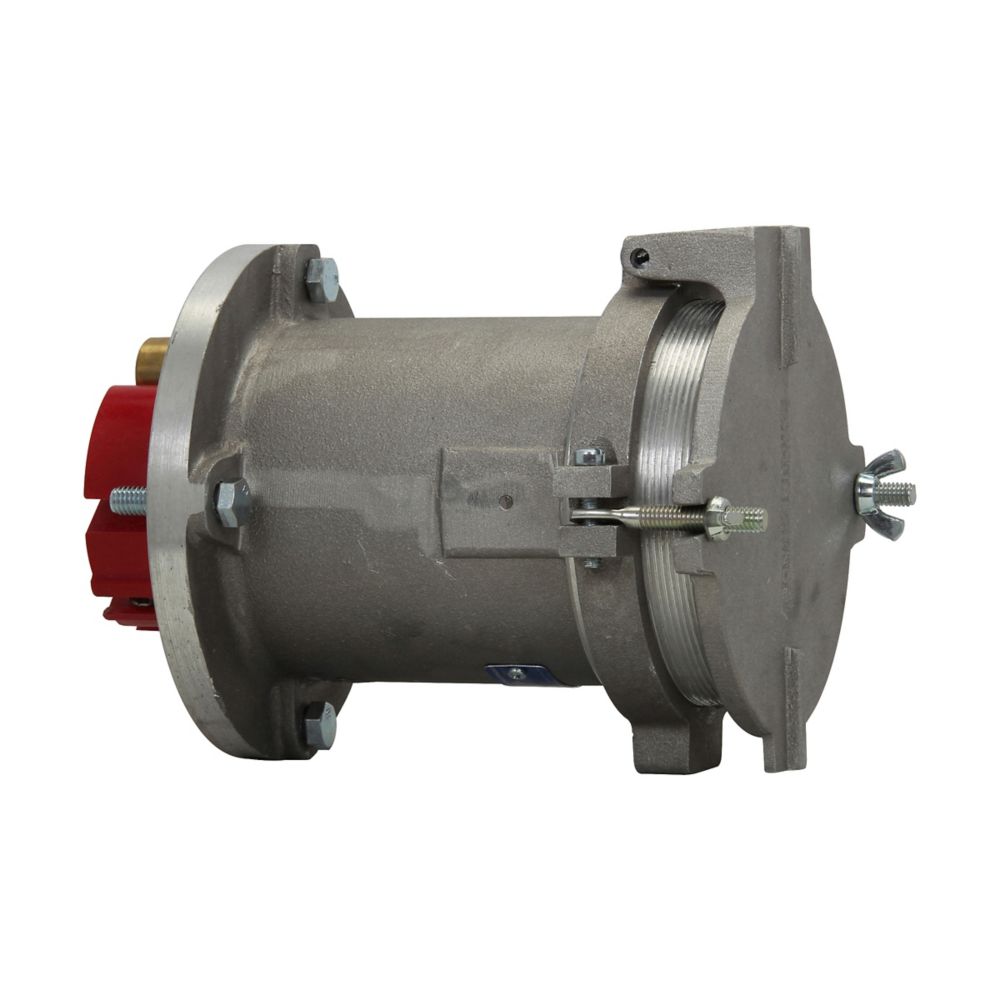

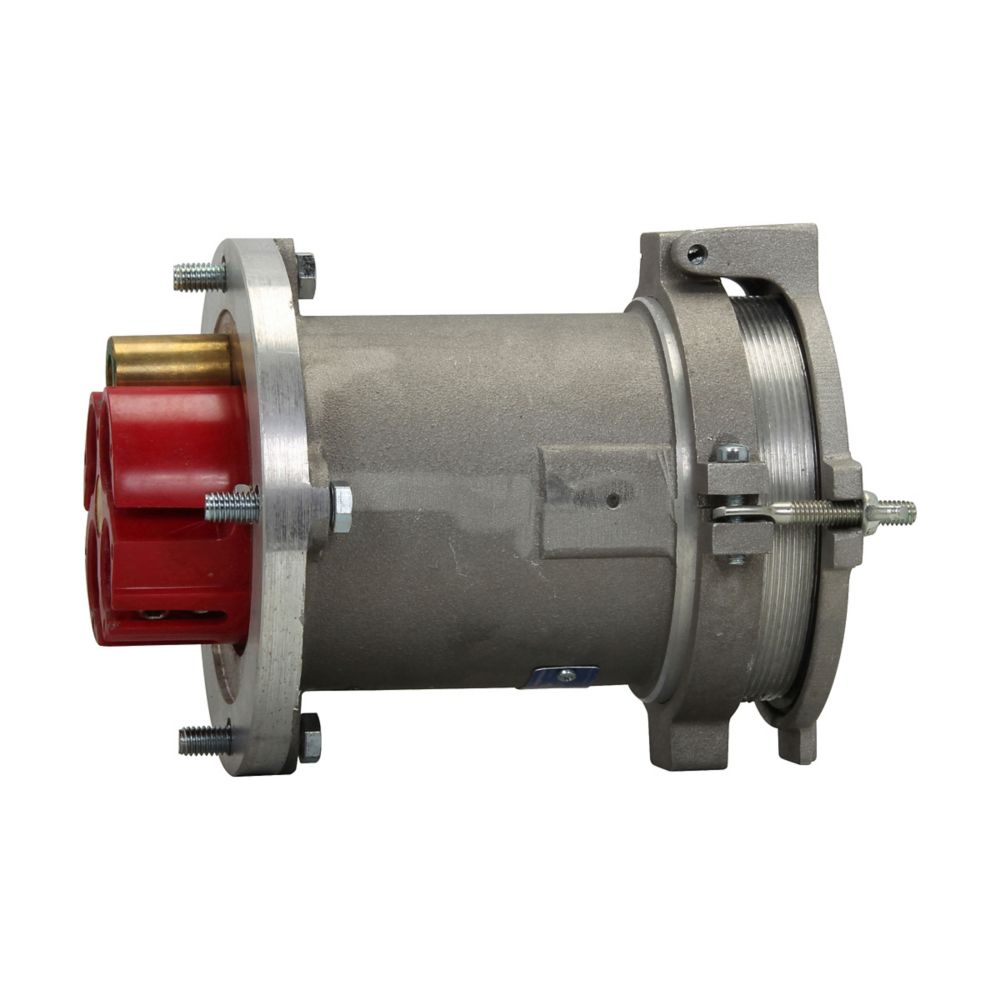

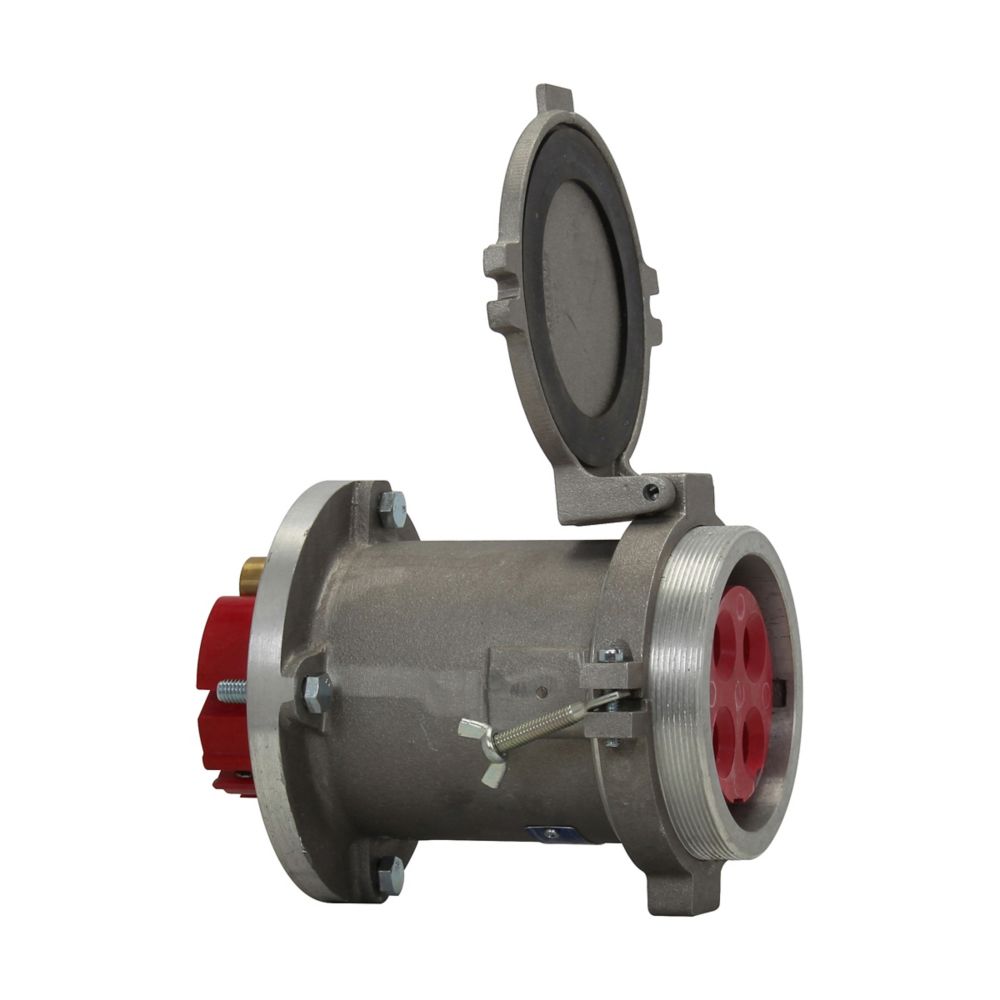

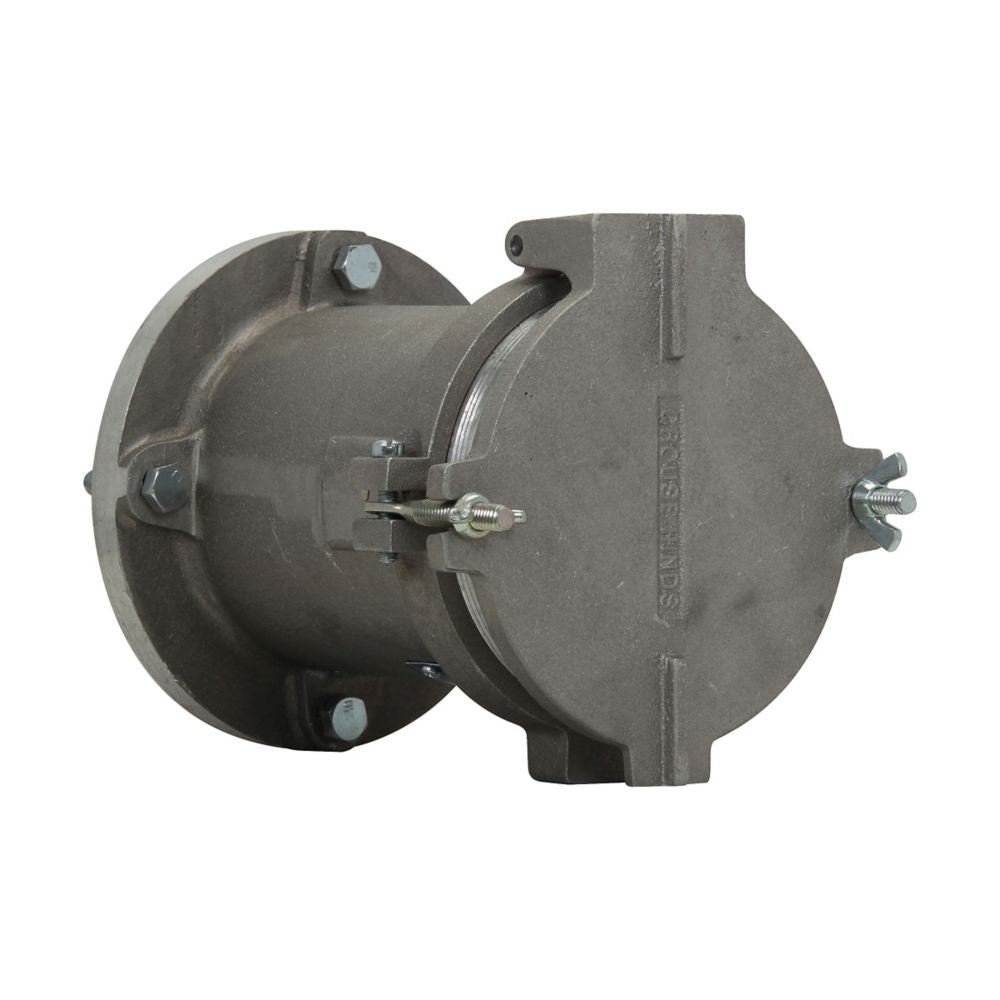

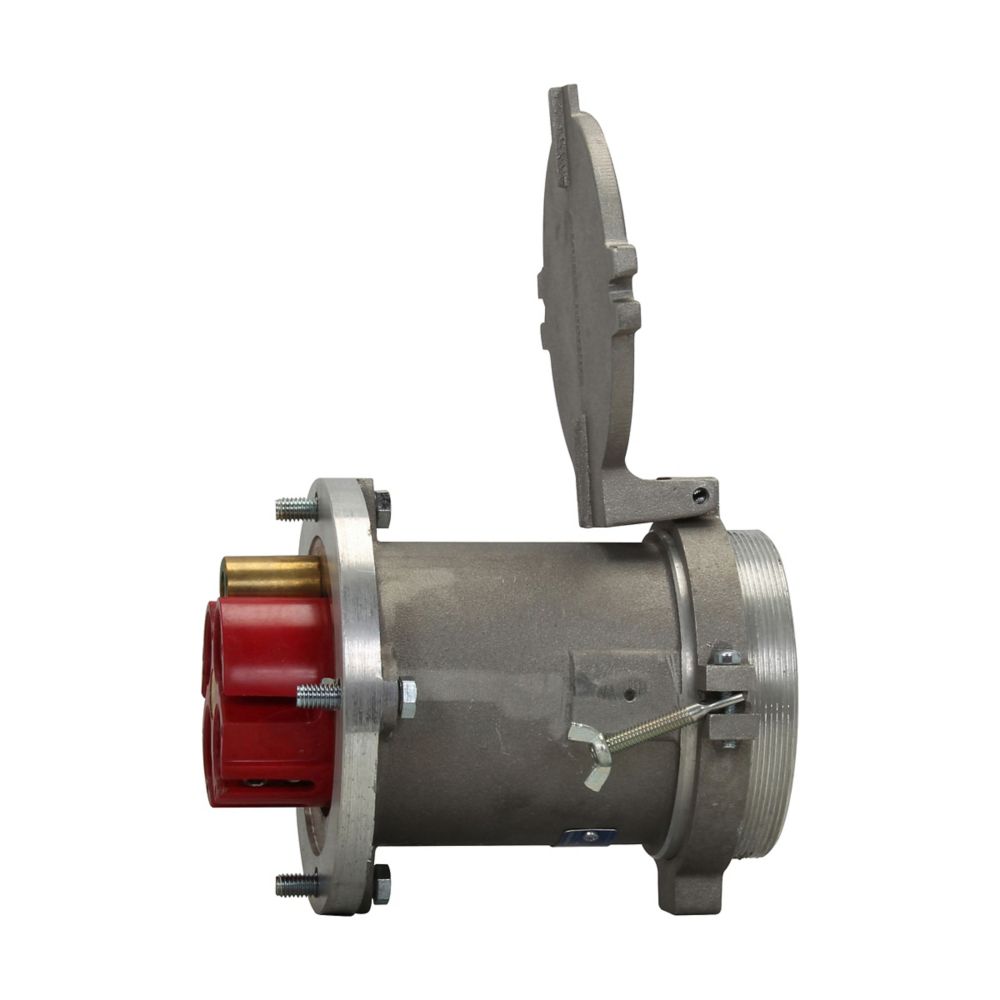

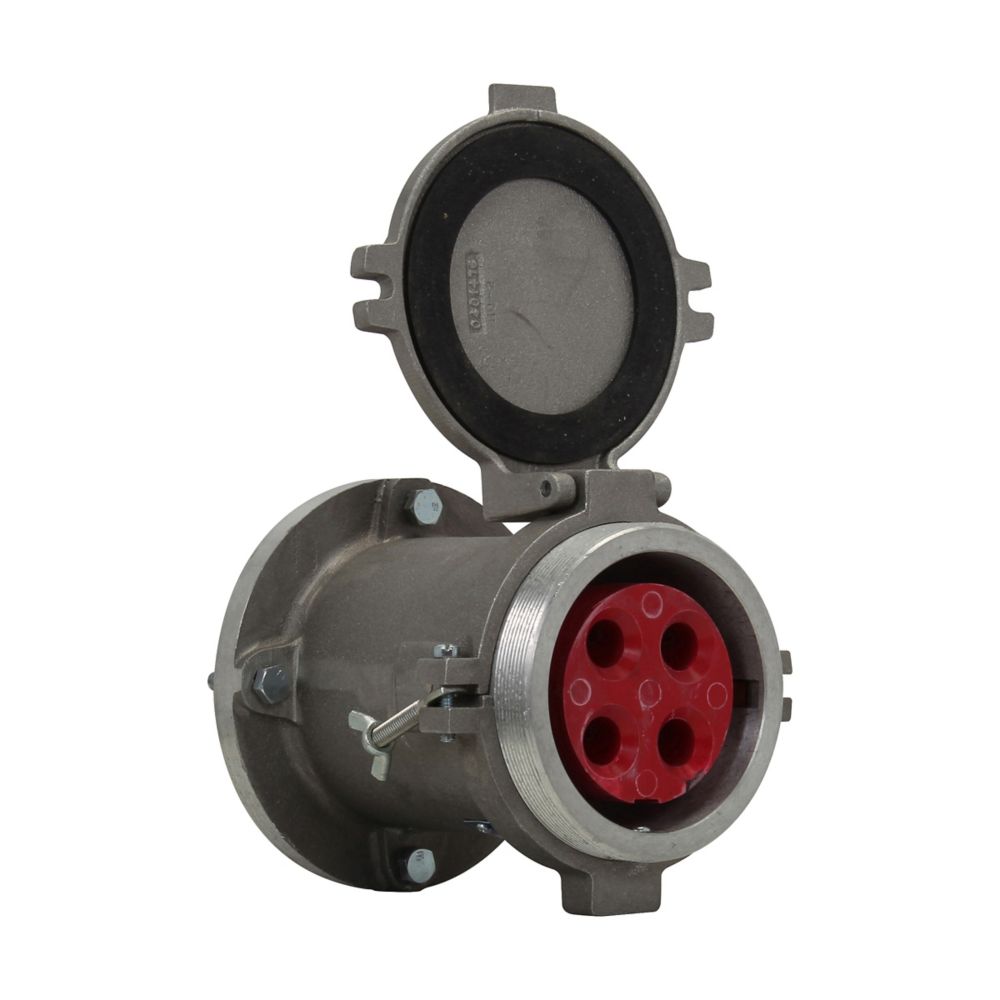

AR2042 - Eaton Crouse-Hinds Series - 0.56" Arktite AR Receptacle
Eaton Crouse-Hinds series Arktite AR receptacle, 200A, Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, Crimp/solder, 600 Vac/250 Vdc, 0.56"
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series Arktite AR receptacle |
| Catalog Number |
AR2042 |
| UPC |
782274065908 |
| Product Length/Depth |
7.5 in |
| Product Height |
6.63 in |
| Product Width |
6.63 in |
| Product Weight |
11.55 lb |
PRODUCT SPECIFICATIONS
| Amperage Rating |
200A |
| Voltage rating |
600 Vac/250 Vdc |
| Frequency rating |
50 to 400 Hz |
| Grounding type |
Style 2 |
| Configuration |
Three-wire, four-pole |
| Receptacle style |
Spring door |
| Termination style |
Crimp/solder |
| Wire well size |
0.56" |
| Material |
Copper-free aluminum |
PRODUCT DATASHEET
