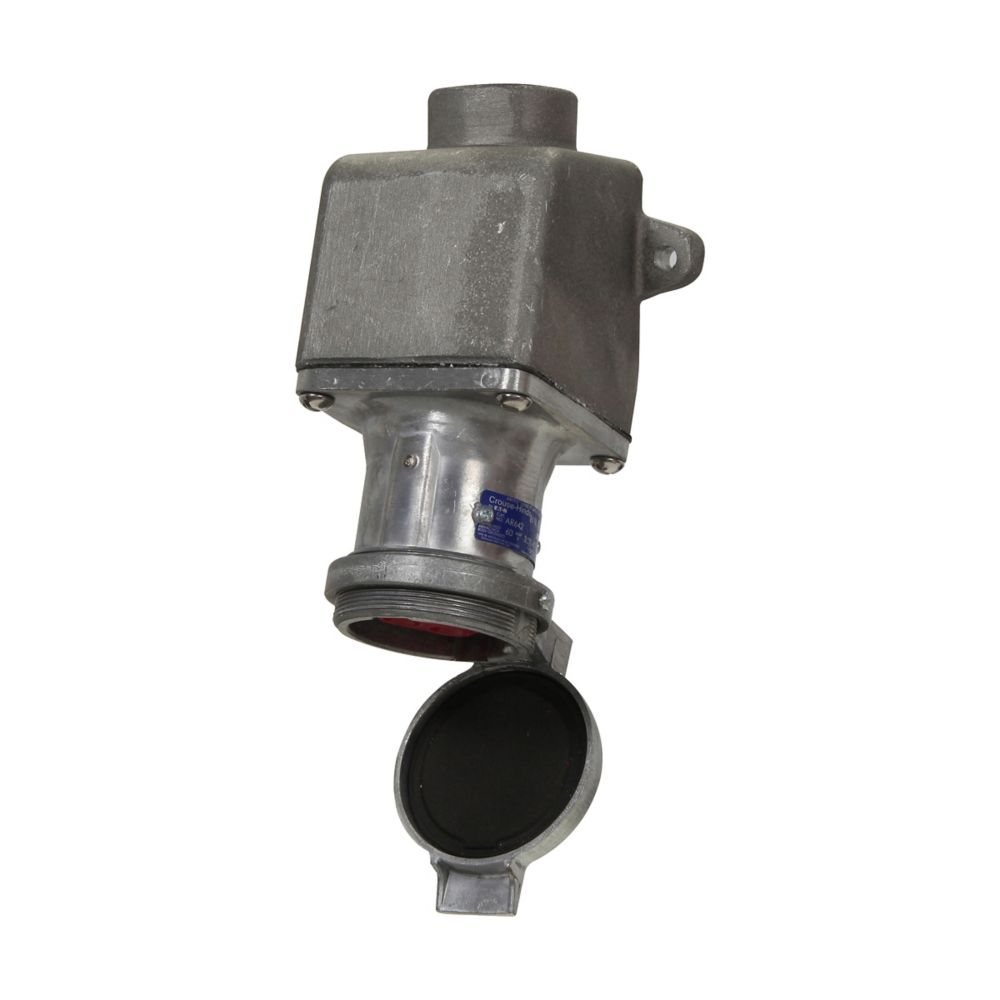

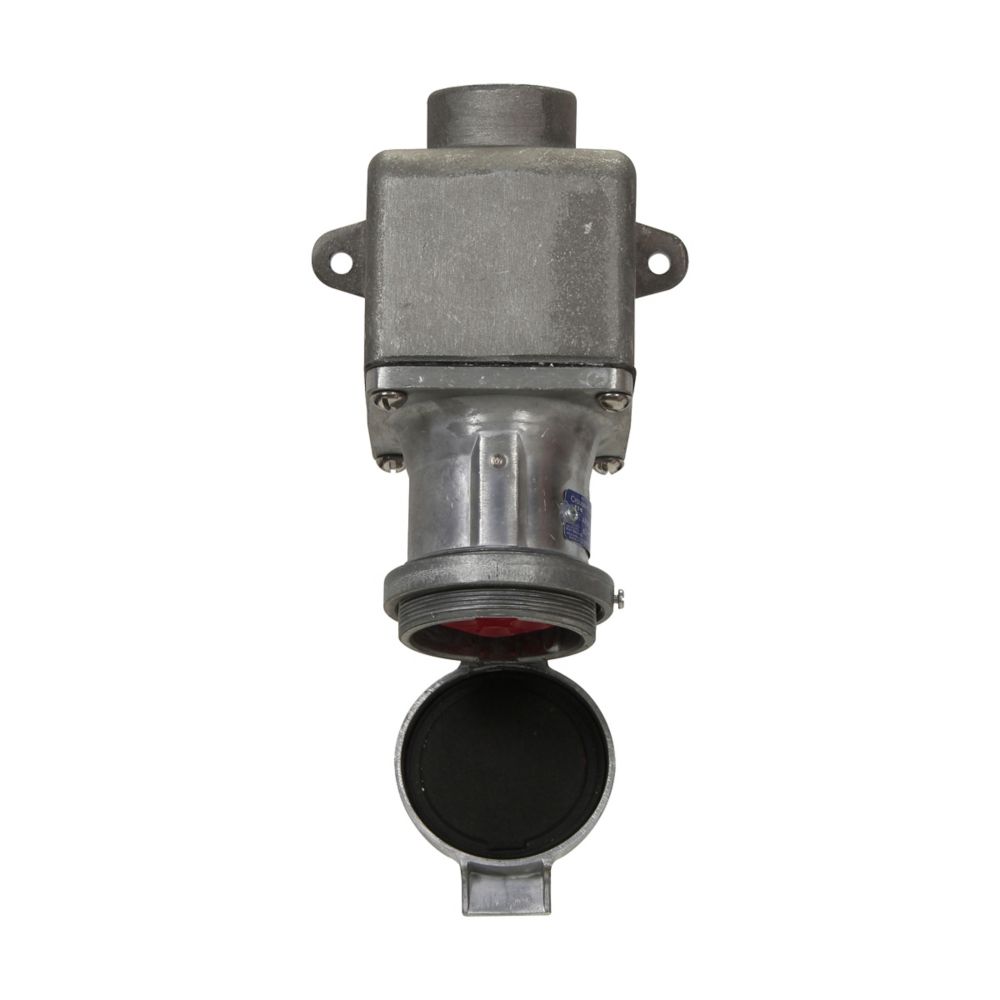

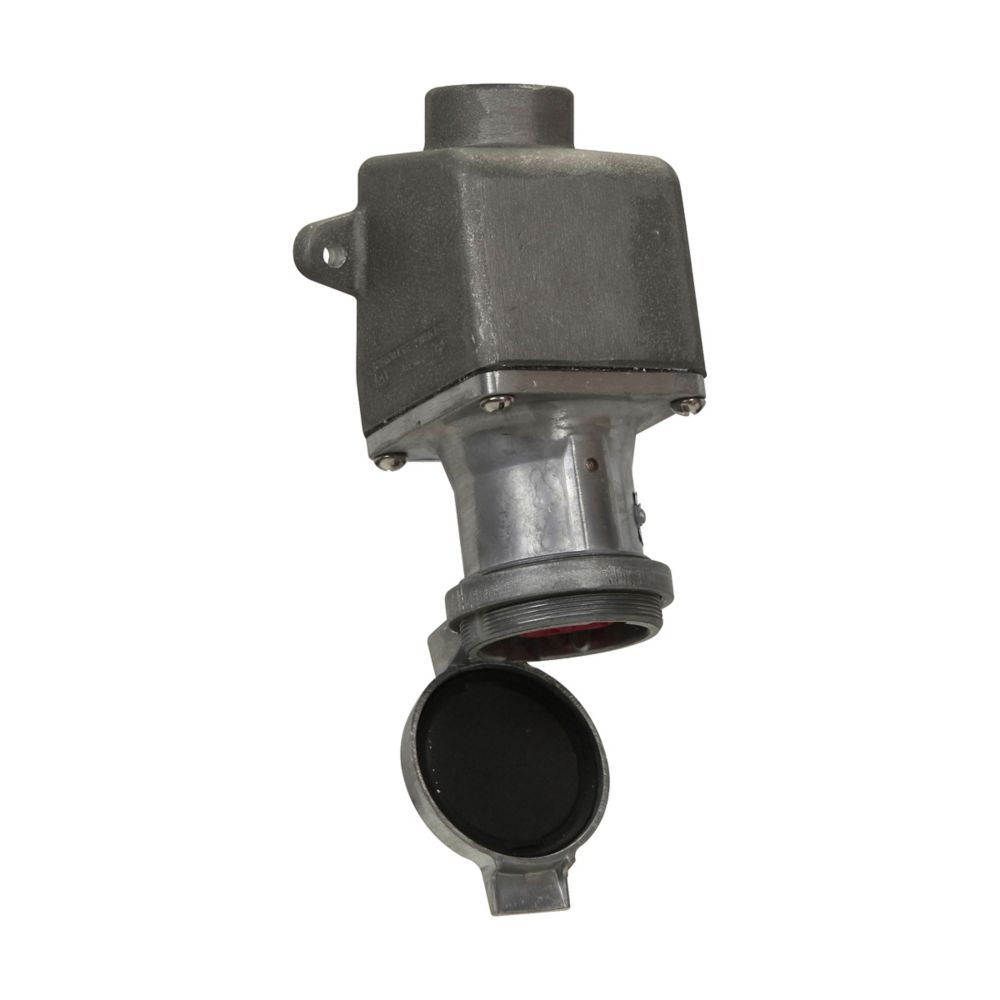

ARE3422 - Eaton Crouse-Hinds Series - 30A Arktite ARE Receptacle Assembly
Eaton Crouse-Hinds series Arktite ARE receptacle assembly, 30A, Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, 3/4", 600 Vac/250 Vdc
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series Arktite ARE receptacle assembly |
| Catalog Number |
ARE3422 |
| UPC |
782274034942 |
| Product Length/Depth |
5.44 in |
| Product Height |
7.19 in |
| Product Width |
4.25 in |
| Product Weight |
2.95 lb |
PRODUCT SPECIFICATIONS
| Amperage Rating |
30A |
| Voltage rating |
600 Vac/250 Vdc |
| Frequency rating |
50 to 400 Hz |
| Grounding type |
Style 2 |
| Configuration |
Three-wire, four-pole |
| Trade size |
3/4" |
| Receptacle style |
Spring door |
| Material |
Copper-free aluminum |
PRODUCT DATASHEET
