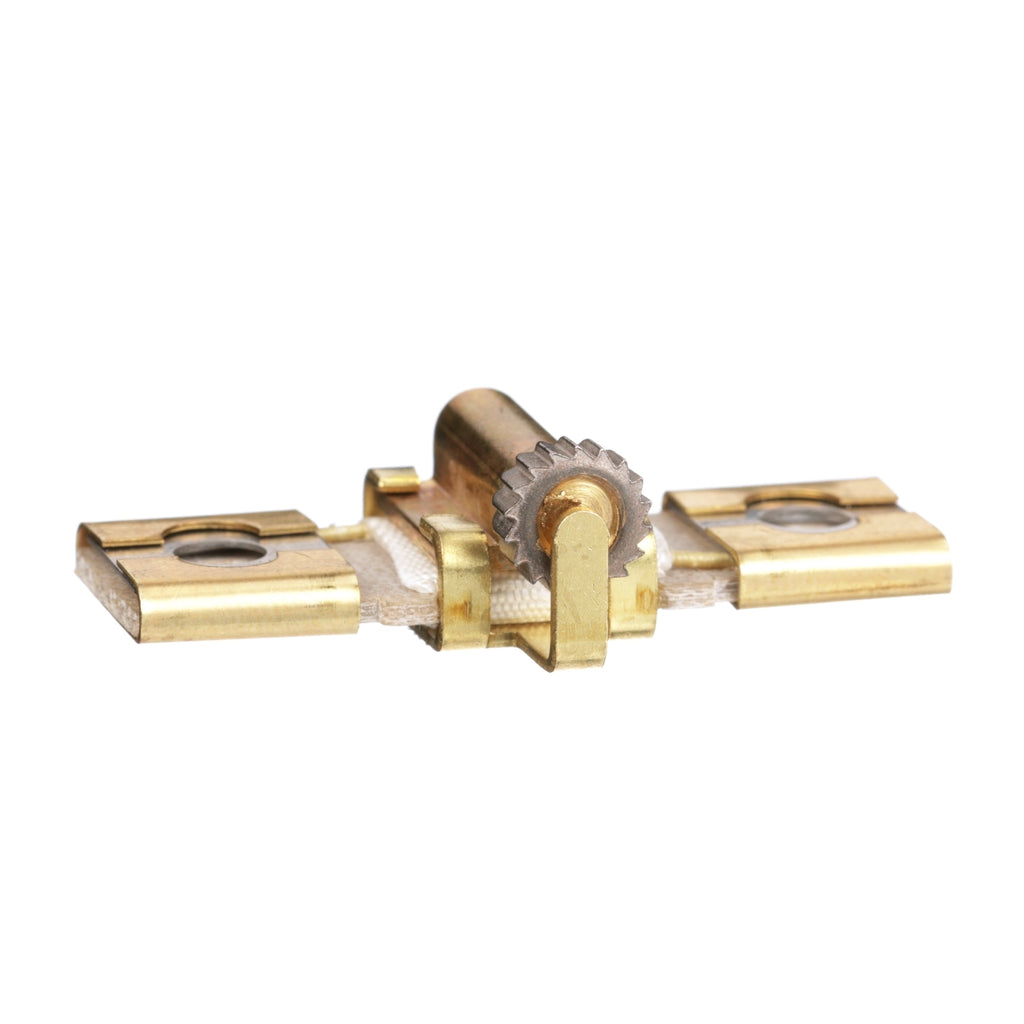

B1.30 - Schneider Electric - Square D Overload Relay Thermal Unit
Linergy NEMA sectional terminal blocks are for terminating wire and are designed to NEMA standards. This Square D terminal block mounting track is designed specifically for 9080G terminal blocks. The track is pre-punched with oblong slots to make mounting the track to the panel easier. This terminal block track is 13 inches long. This track is made of galvanized steel.
GENERAL SPECIFICATIONS
Main
| Range of Product |
B |
| Thermal overload type |
Melting alloy |
| Motor tripping class |
20 |
Ordering and shipping details
| Category |
US10CP121781 |
| Discount Schedule |
0CP1 |
| GTIN |
785901587293 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.80 in (2.032 cm) |
| Package 1 Width |
1.20 in (3.048 cm) |
| Package 1 Length |
2.50 in (6.35 cm) |
| Package 1 Weight |
0.80 oz (22.68 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
6 |
| Package 2 Height |
0.80 in (2.032 cm) |
| Package 2 Width |
3.50 in (8.89 cm) |
| Package 2 Length |
4.90 in (12.446 cm) |
| Package 2 Weight |
4.32 oz (122.47 g) |
