B150 - Schneider Electric - 150A 240V Square D Circuit Breaker 2Pole

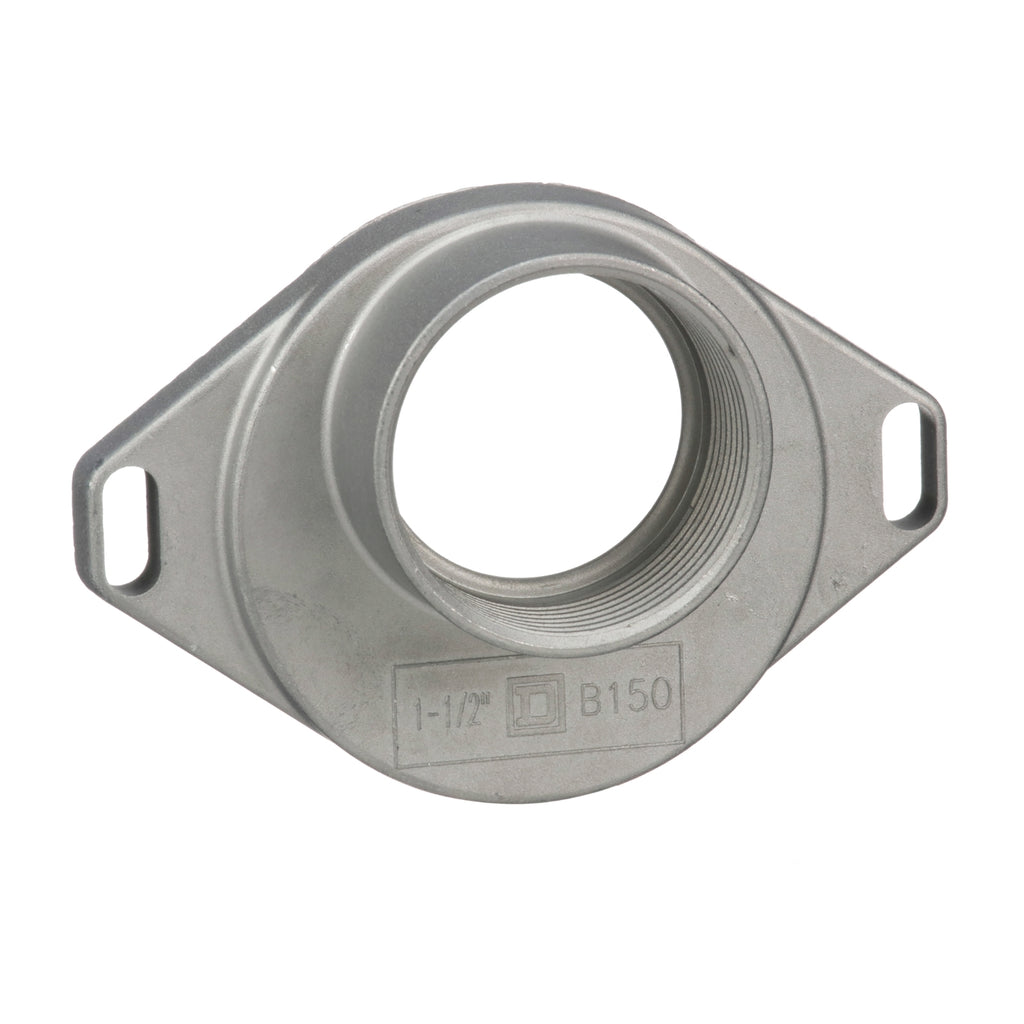

Industrial Circuit Breaker Enclosures are designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Provides a dead front housing for circuit breakers, molded case switches, and motor circuit protectors to prevent personnel from accidentally contacting energized parts. Designed to meet or exceed UL 50 requirements for specific environmental conditions. Allow breaker operation without removing cover. These units are UL Listed and CSA Certified. Square D equipment with “R’’ or “RB’’ suffix, designated NEMA 3R rainproof construction, utilizes bolt-on hubs listed below. “RB’’ devices will accept 3/4 in. through 2- 1/2 in. bolt-on hubs without the use of reducers. Off-center conduit thread openings and elongated mounting holes provide quick and easy adjustment to eliminate costly conduit offsets and bends. Load Center Hub, 1.50 in, rainproof, for RB devices is a conduit entry, and is used for conduit installation. This bolt-on accessory has a UL listed rating. The dimensions are 1.38 mm(H)4.44 mm(W)3.09 mm(D). This product comes with an 18 month warranty.
GENERAL SPECIFICATIONS
Main
| Hub type |
B |
| Product or Component Type |
Hub |
Complementary
| Cable entry |
Conduit entry 1.5 in (38.1 mm) |
| Depth |
3.09 in (78.49 mm) |
| Height |
1.4 in (35.6 mm) |
| Width |
4.44 in (112.78 mm) |
Environment
| Product Certifications |
UL Listed |
Ordering and shipping details
| Category |
US1DE1A00032 |
| Discount Schedule |
DE1A |
| GTIN |
785901459453 |
| Returnability |
Yes |
| Country of origin |
US |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
1.40 in (3.556 cm) |
| Package 1 Width |
4.60 in (11.684 cm) |
| Package 1 Length |
6.50 in (16.510 cm) |
| Package 1 Weight |
6.080 oz (172.365 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
8.30 in (21.082 cm) |
| Package 2 Width |
5.00 in (12.700 cm) |
| Package 2 Length |
13.70 in (34.798 cm) |
| Package 2 Weight |
4.081 lb(US) (1.851 kg) |
| Unit Type of Package 3 |
PAL |
| Number of Units in Package 3 |
1000 |
| Package 3 Height |
40.00 in (101.600 cm) |
| Package 3 Width |
40.00 in (101.600 cm) |
| Package 3 Length |
48.00 in (121.920 cm) |
| Package 3 Weight |
439.0002 lb(US) (199.127 kg) |
