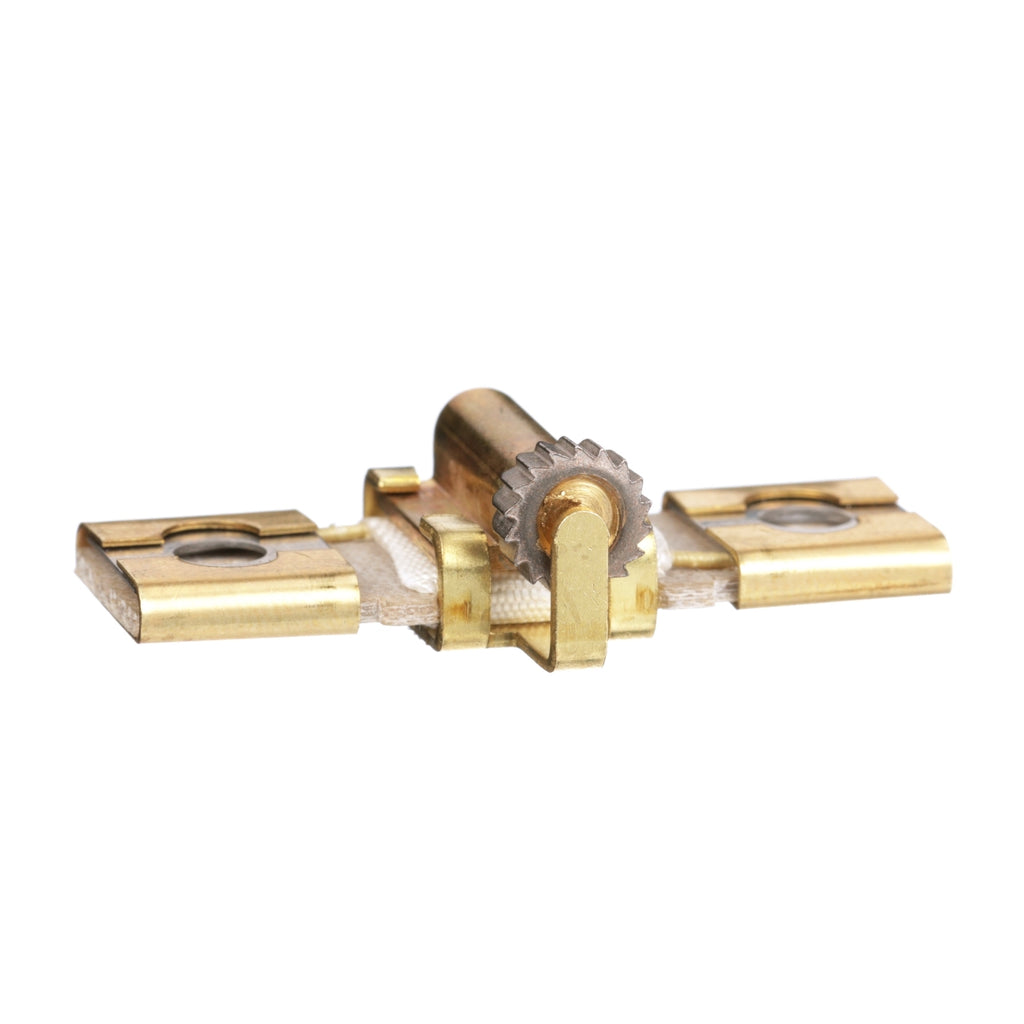

B2.65 - Schneider Electric - Square D Overload Relay Thermal Unit
Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 Amps. This two pole fuse holder will accept class CC fuses. The rating of the fuse can be up to 30 Amps with a 600 V maximum rating. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Fuse clips are made of a copper alloy that is tin plated. The fuse clips are standard fuse clips. The fuse holder base is made of high impact thermoplastic. AIC Rating in accordance with UL512 is 200,000 Amp. This fuse holder is UL listed and CSA certified.
GENERAL SPECIFICATIONS
Main
| Range of Product |
B |
| Thermal overload type |
Melting alloy |
| Motor tripping class |
20 |
Ordering and shipping details
| Category |
US10CP121781 |
| Discount Schedule |
0CP1 |
| GTIN |
785901587354 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.80 in (2.032 cm) |
| Package 1 Width |
1.10 in (2.794 cm) |
| Package 1 Length |
2.50 in (6.350 cm) |
| Package 1 Weight |
0.800 oz (22.680 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
6 |
| Package 2 Height |
0.80 in (2.032 cm) |
| Package 2 Width |
3.40 in (8.636 cm) |
| Package 2 Length |
4.80 in (12.192 cm) |
| Package 2 Weight |
4.480 oz (127.006 g) |
PRODUCT DATASHEET
B2.65_Product Datasheet
