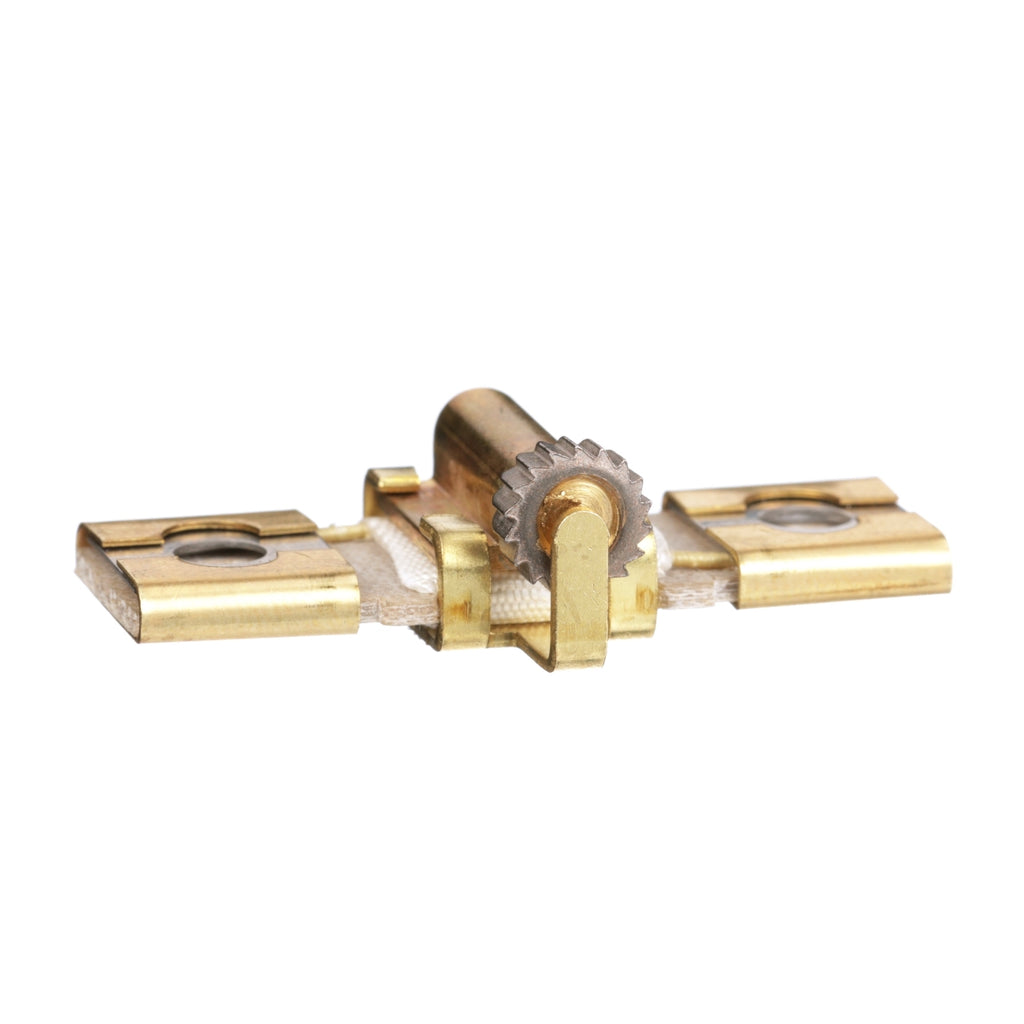

B22.0 - Schneider Electric - Square D Overload Relay Thermal Unit
Roll over image to zoom in Click on image to zoom
B22.0 - Schneider Electric - Square D Overload Relay Thermal Unit

B22.0 - Schneider Electric - Square D Overload Relay Thermal Unit

Square DSKU: SQDB22.0
Price:
$28.38
Stock:
35 In Stock and Ready To Ship

Description

B22.0 - Schneider Electric - Square D Overload Relay Thermal Unit

Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 Amps. This two pole fuse holder will accept class M fuses. The rating of the fuse can be up to 30 Amps with a 600 V maximum rating. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Fuse clips are made of a copper alloy that is tin plated. The fuse clips are standard fuse clips. The fuse holder base is made of high impact thermoplastic. AIC Rating in accordance with UL512 is 100,000 Amp. This fuse holder is UL component recognized and CSA certified.


GENERAL SPECIFICATIONS

Main
Range of Product B
Thermal overload type Melting alloy
Motor tripping class 20
Ordering and shipping details
Category US10CP121781
Discount Schedule 0CP1
GTIN 785901587545
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 0.80 in (2.032 cm)
Package 1 Width 1.20 in (3.048 cm)
Package 1 Length 2.50 in (6.35 cm)
Package 1 Weight 0.80 oz (22.68 g)
Unit Type of Package 2 CAR
Number of Units in Package 2 6
Package 2 Height 0.80 in (2.032 cm)
Package 2 Width 3.50 in (8.89 cm)
Package 2 Length 4.80 in (12.192 cm)
Package 2 Weight 4.640 oz (131.542 g)


PRODUCT DATASHEET

B22.0_Product Datasheet
