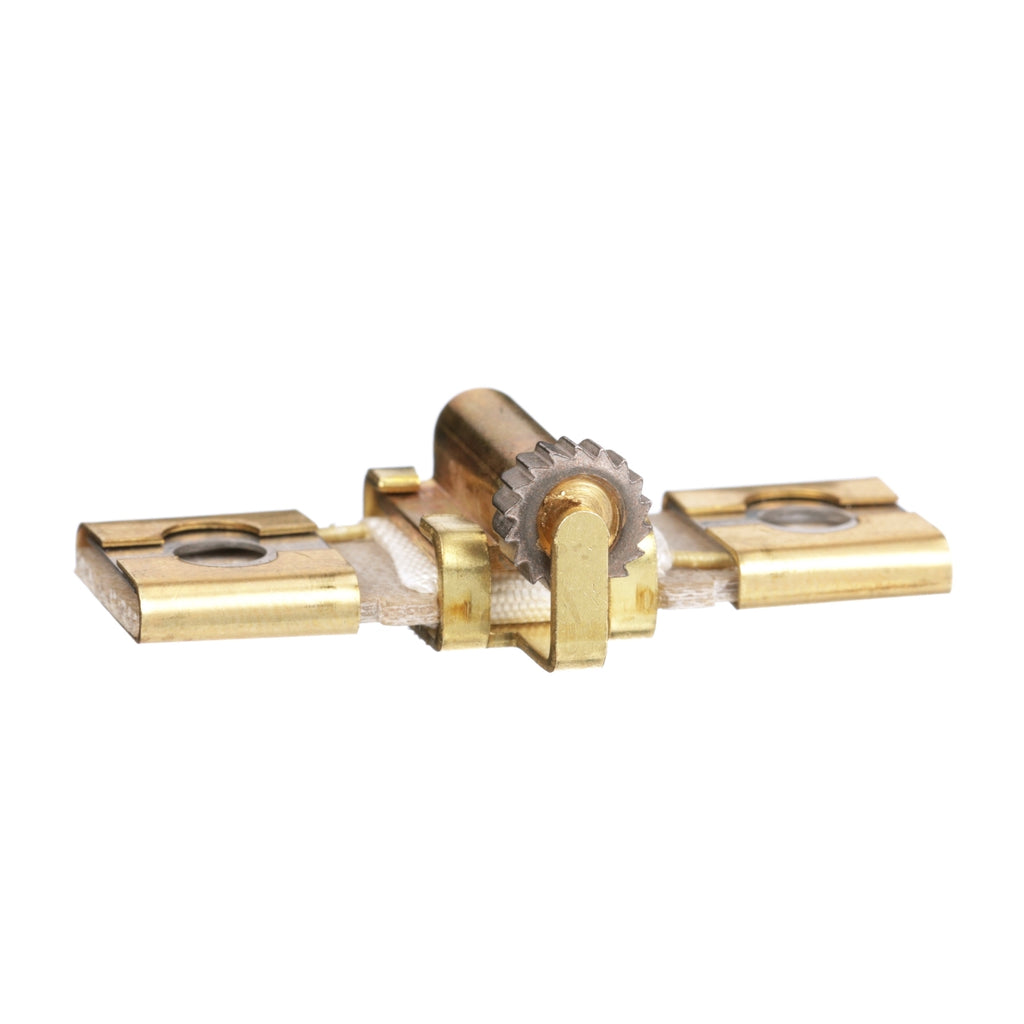

B3.70 - Schneider Electric - Square D Overload Relay Thermal Unit
Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 Amps. This three pole fuse holder will accept class M fuses. The rating of the fuse can be up to 30 Amps with a 600 V maximum rating. The pressure wire connectors will accept 14 to10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Fuse clips are made of a copper alloy that is tin plated. The fuse clips are standard fuse clips. The fuse holder base is made of high impact thermoplastic. AIC Rating in accordance with UL512 is 100,000 Amp. This fuse holder is UL component recognized and CSA certified.
GENERAL SPECIFICATIONS
Main
| Range of Product |
B |
| Thermal overload type |
Melting alloy |
| Motor tripping class |
20 |
Ordering and shipping details
| Category |
US10CP121781 |
| Discount Schedule |
0CP1 |
| GTIN |
785901587385 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.80 in (2.032 cm) |
| Package 1 Width |
1.20 in (3.048 cm) |
| Package 1 Length |
2.40 in (6.096 cm) |
| Package 1 Weight |
0.80 oz (22.68 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
6 |
| Package 2 Height |
0.80 in (2.032 cm) |
| Package 2 Width |
3.50 in (8.89 cm) |
| Package 2 Length |
4.90 in (12.446 cm) |
| Package 2 Weight |
4.32 oz (122.47 g) |
PRODUCT DATASHEET
B3.70_Product Datasheet
