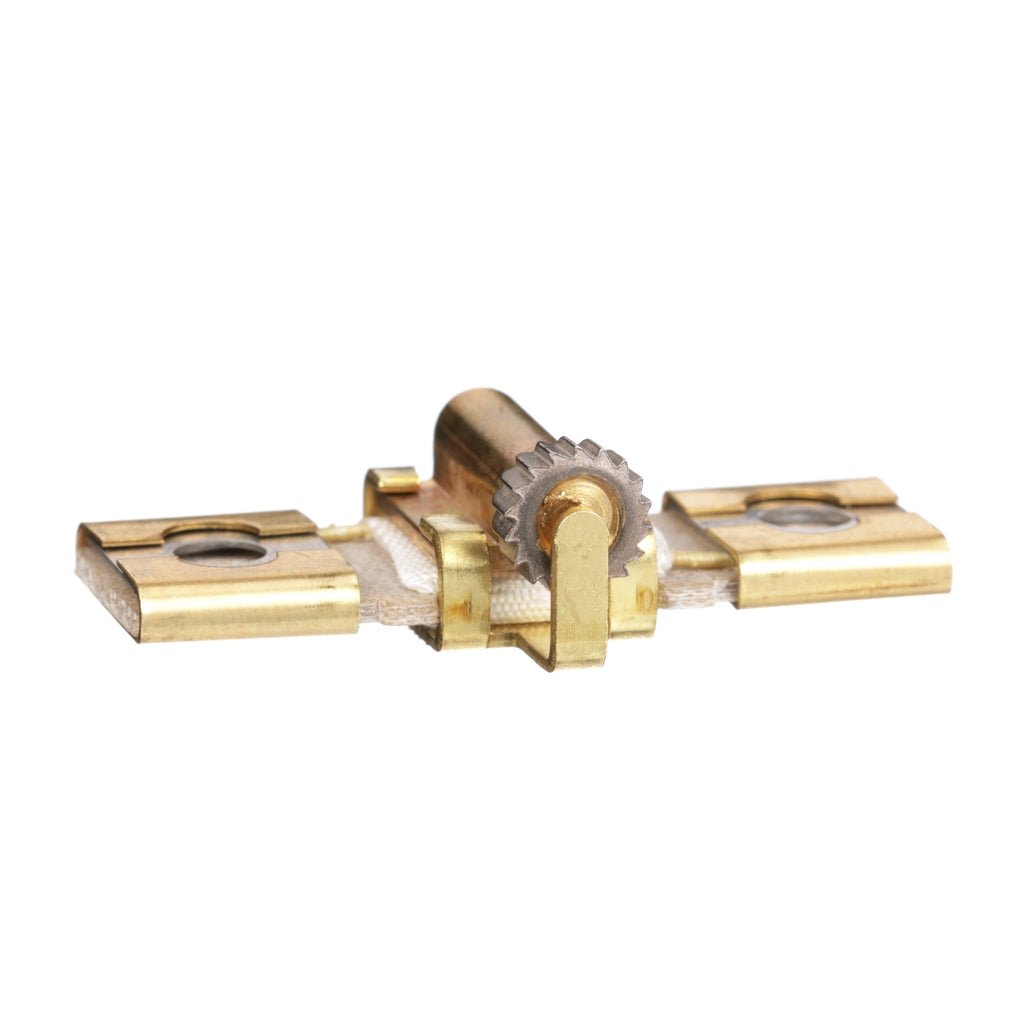

B56.0 - Schneider Electric - Square D Overload Relay Thermal Unit
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This sectional fuse holder will accept class H fuses that have a 13/32 inch diameter and are 1.5 inches long. This sectional fuse holder has a pressure wire connector for use with solid or stranded copper wires from #18 AWG through #10 AWG. Each terminal is approved for use with various wire combinations. Each terminal accepts 1 # 10 AWG, 1 #12 AWG, 1 #14 AWG, 1 to 4 #16 AWG or 1 to 4 #18 AWG wires. The nylon block is molded in the natural color of nylon (off white). A 9080GH63 fuse puller is supplied with each fuse holder. This block is UL component recognized and CSA certified for up to 30 Amp and are rated at up to 600 VAC or VDC.
GENERAL SPECIFICATIONS
Main
| Range of Product |
B |
| Thermal overload type |
Melting alloy |
| Motor tripping class |
20 |
Ordering and shipping details
| Category |
US10CP121781 |
| Discount Schedule |
0CP1 |
| GTIN |
785901587620 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.80 in (2.032 cm) |
| Package 1 Width |
1.20 in (3.048 cm) |
| Package 1 Length |
2.40 in (6.096 cm) |
| Package 1 Weight |
0.640 oz (18.144 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
6 |
| Package 2 Height |
0.80 in (2.032 cm) |
| Package 2 Width |
3.40 in (8.636 cm) |
| Package 2 Length |
4.90 in (12.446 cm) |
| Package 2 Weight |
3.840 oz (108.862 g) |
