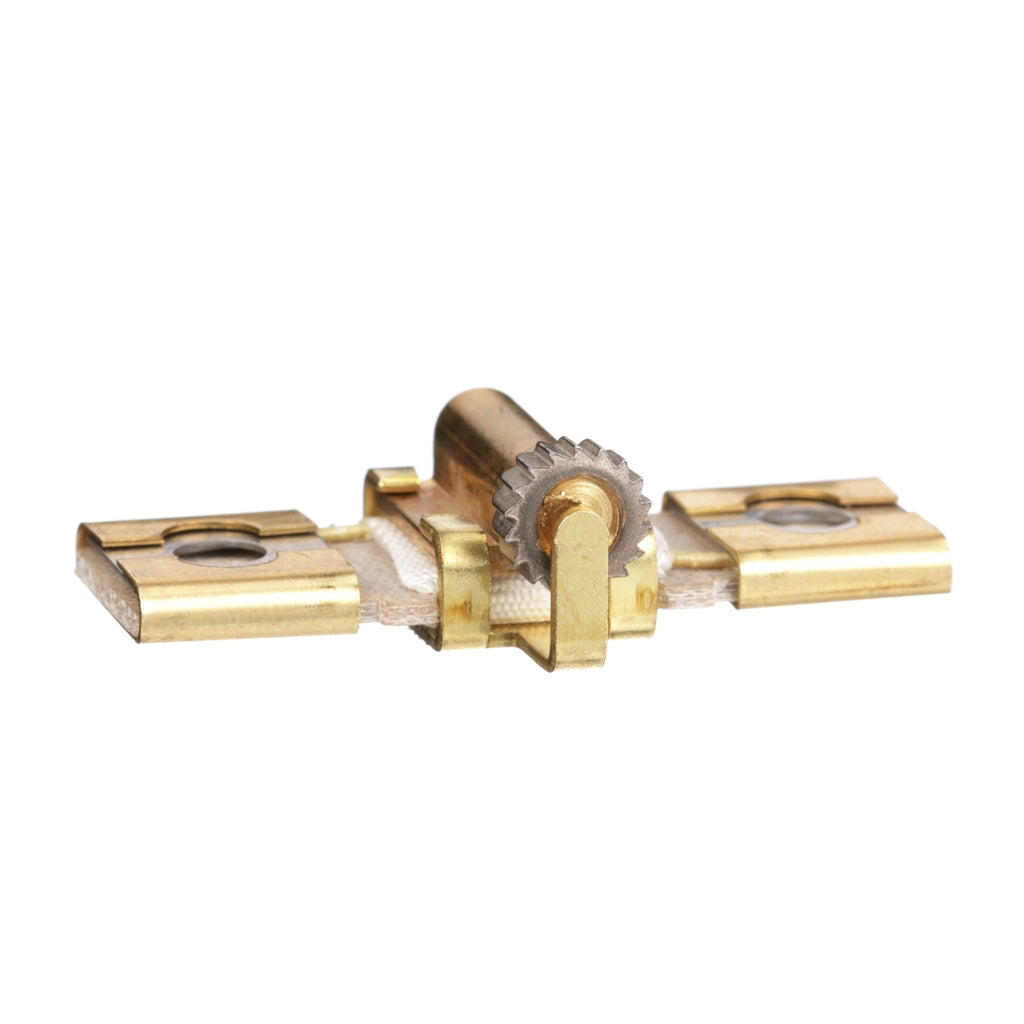

B6.25 - Schneider Electric - Square D Overload Relay Thermal Unit
Linergy NEMA sectional terminal blocks are for terminating wire and are designed to NEMA standards. This circuit isolation terminal block has pressure wire connectors for use with solid or stranded copper wires from #18 AWG through #10 AWG. Each pressure wire connector is approved for use with various wire combinations. Each lug accepts 1 #10 AWG, 1 #12 AWG, 1 #14 AWG, 1 to 4 #16 AWG, or 1 to 4 #18 AWG. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized and CSA certified for up to 30 Amp. Both UL and CSA have the block rated at up to 600 VAC or VDC.
GENERAL SPECIFICATIONS
Main
| Range of Product |
B |
| Thermal overload type |
Melting alloy |
| Motor tripping class |
20 |
Ordering and shipping details
| Category |
US10CP121781 |
| Discount Schedule |
0CP1 |
| GTIN |
785901587422 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.80 in (2.032 cm) |
| Package 1 Width |
1.20 in (3.048 cm) |
| Package 1 Length |
2.40 in (6.096 cm) |
| Package 1 Weight |
0.80 oz (22.68 g) |
PRODUCT DATASHEET
B6.25_Product Datasheet
