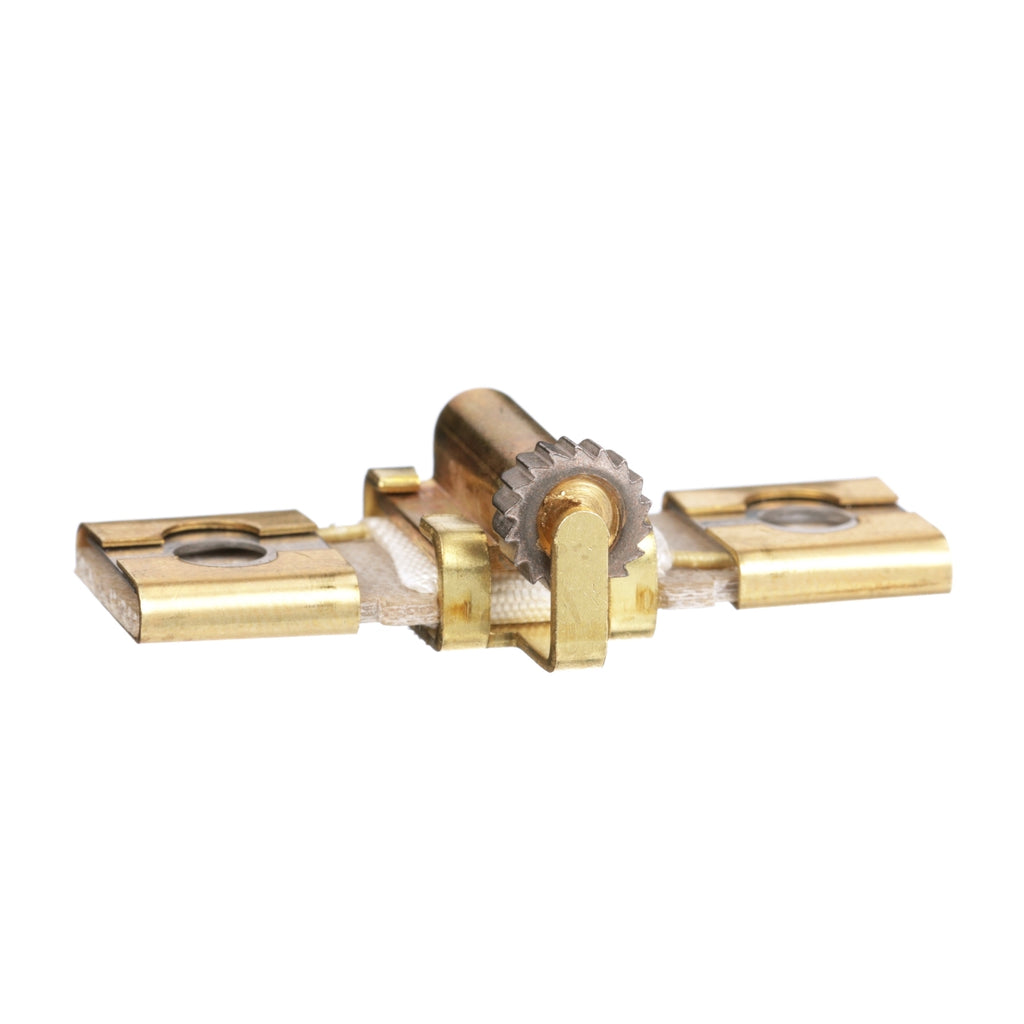

B8.20 - Schneider Electric - Square D Overload Relay Thermal Unit
Linergy NEMA sectional terminal blocks are for terminating wire and are designed to NEMA standards. This Square D terminal block mounting track is designed specifically for 9080G terminal blocks. The track is pre-punched with oblong slots to make mounting the track to the panel easier. This terminal block track is 8 inches long. This track is made of galvanized steel.
GENERAL SPECIFICATIONS
Main
| Range of Product |
B |
| Thermal overload type |
Melting alloy |
| Motor tripping class |
20 |
Ordering and shipping details
| Category |
US10CP121781 |
| Discount Schedule |
0CP1 |
| GTIN |
785901587453 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.80 in (2.032 cm) |
| Package 1 Width |
1.10 in (2.794 cm) |
| Package 1 Length |
2.40 in (6.096 cm) |
| Package 1 Weight |
0.80 oz (22.68 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
6 |
| Package 2 Height |
0.80 in (2.032 cm) |
| Package 2 Width |
4.80 in (12.192 cm) |
| Package 2 Length |
3.40 in (8.636 cm) |
| Package 2 Weight |
4.480 oz (127.006 g) |
PRODUCT DATASHEET
B8.20_Product Datasheet
