Description

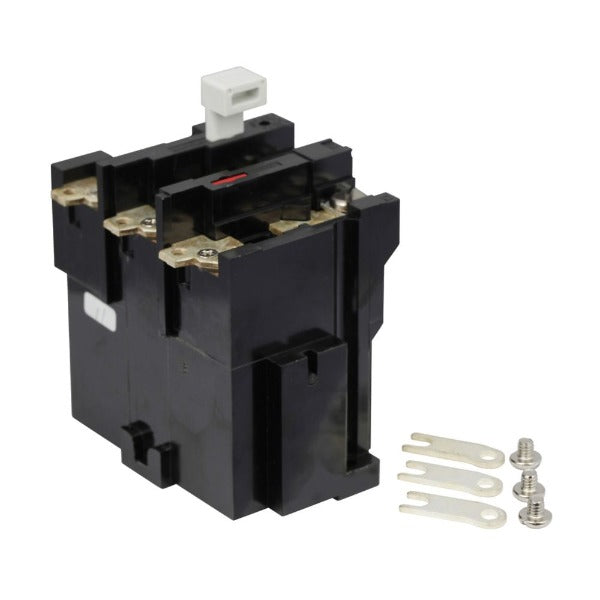

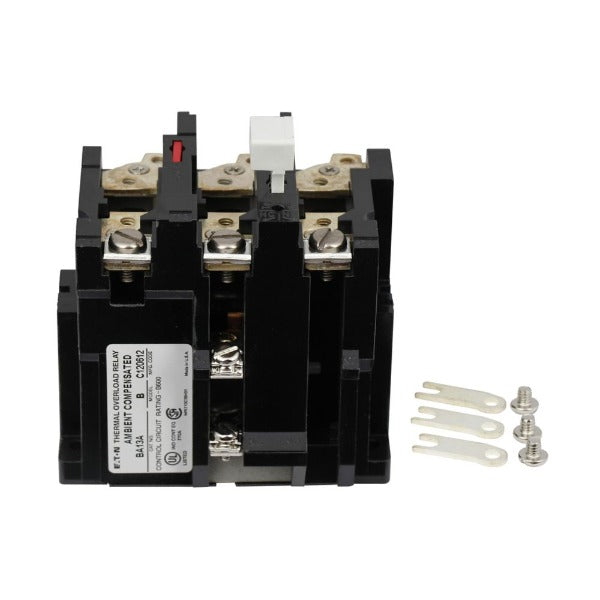

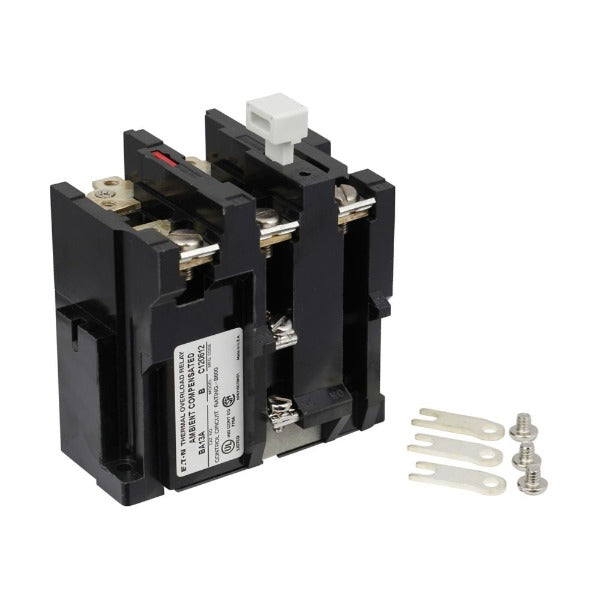

BA13A - Eaton Cutler-Hammer 3 Pole Motor Starter Overload Relay
NEMA A200 Thermal Overload Relay, Three-pole, Starter mounted, NEMA , Thermal Type B, Class 20, 1NC Auxiliary Contact, Ambient Compensated , Full load range .25-26.2A, type B replacement
GENERAL SPECIFICATIONS
| PRODUCT NAME | Eaton Freedom NEMA overload relay |
| CATALOG NUMBER | BA13A |
| UPC | 786678003207 |
| PRODUCT LENGTH/DEPTH | 4.8 in |
| PRODUCT HEIGHT | 3.4 in |
| PRODUCT WIDTH | 3.6 in |
| PRODUCT WEIGHT | 0.7 lb |
| CERTIFICATIONS | CSA Certified UL Listed |
| CATALOG NOTES | Replacement for Type B Overload Relays. For replacement on B200 Size 00,0, 1 use BA23A instead of BA13A. |
| Product Type |
Overload relay
|
PRODUCT SPECIFICATIONS
| Modification |
1NC Auxiliary Contact, Ambient Compensated
|
| Design |
NEMA
|
| Full load current range |
.25-26.2A
|
| Mounting |
Starter
|
| Number of poles |
Three-pole
|
| Special features |
Heaters required
|
| Trip Type |
Thermal Type B, Class 20
|
| Type |
A200
|
