Description

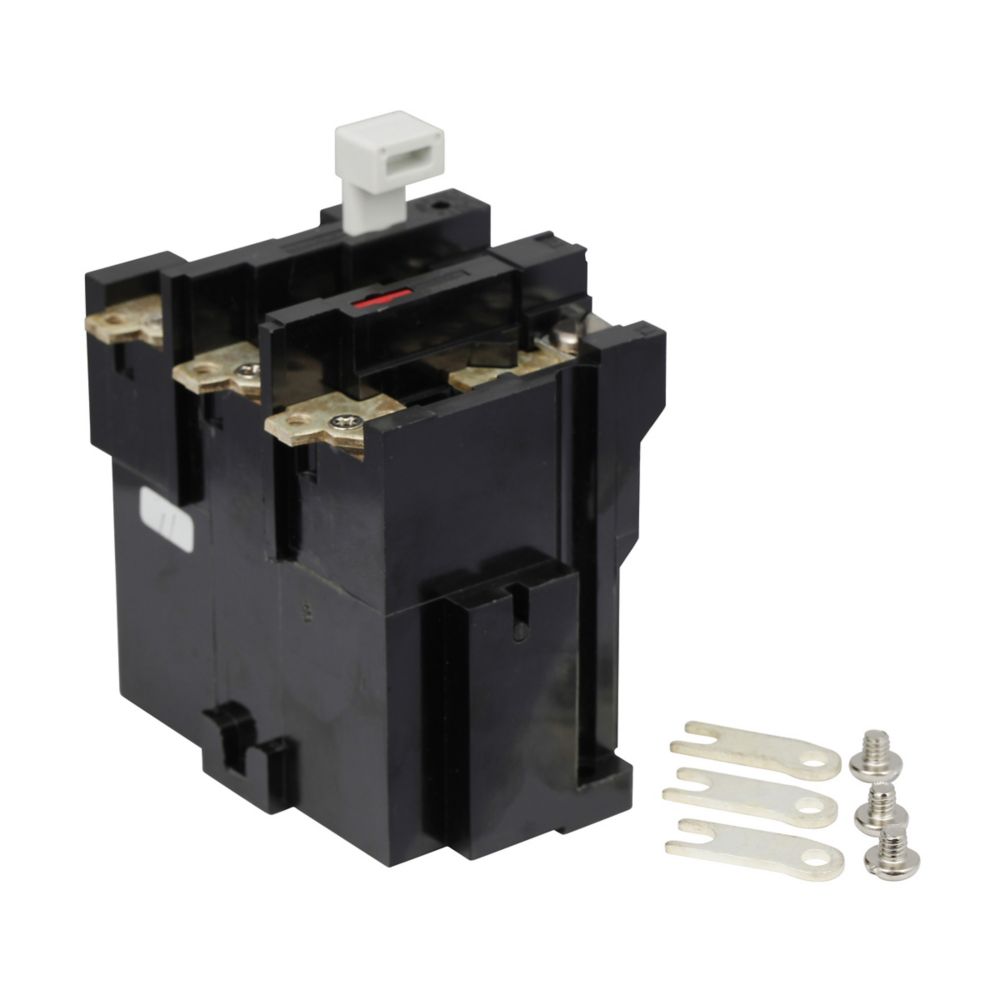

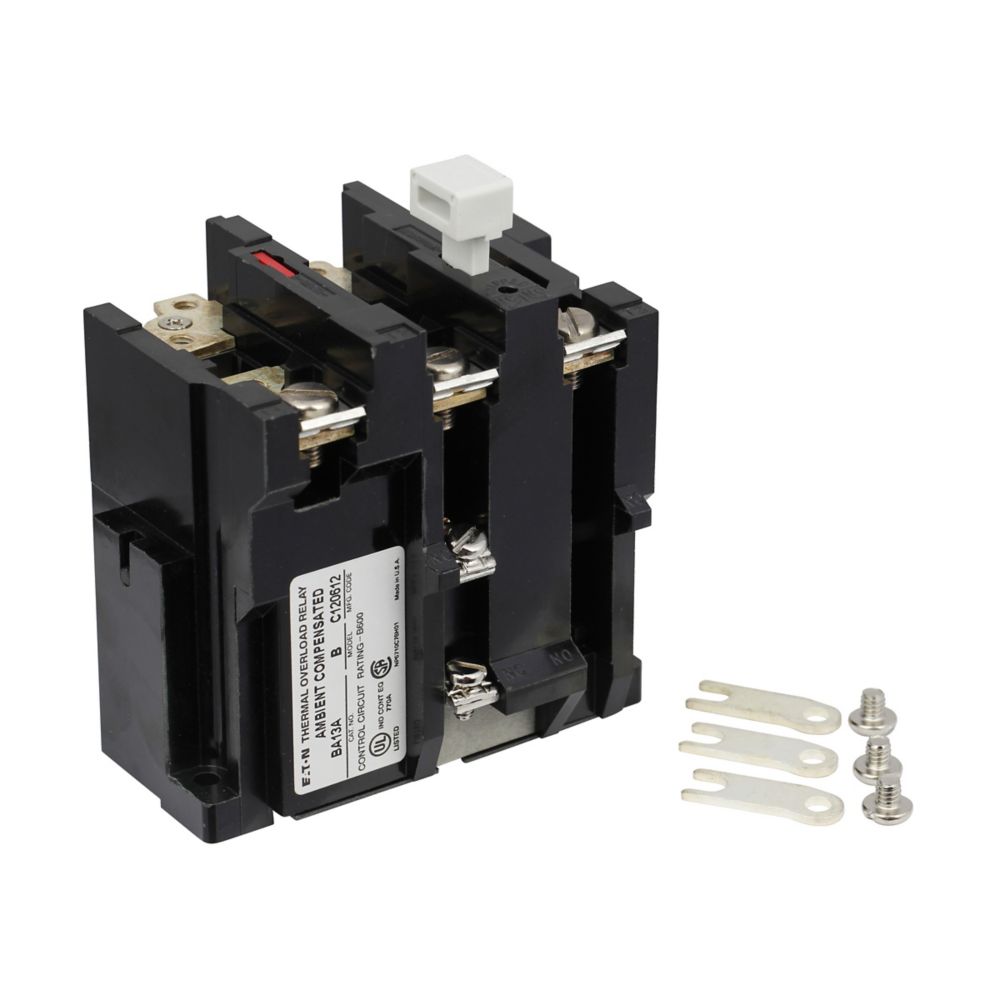

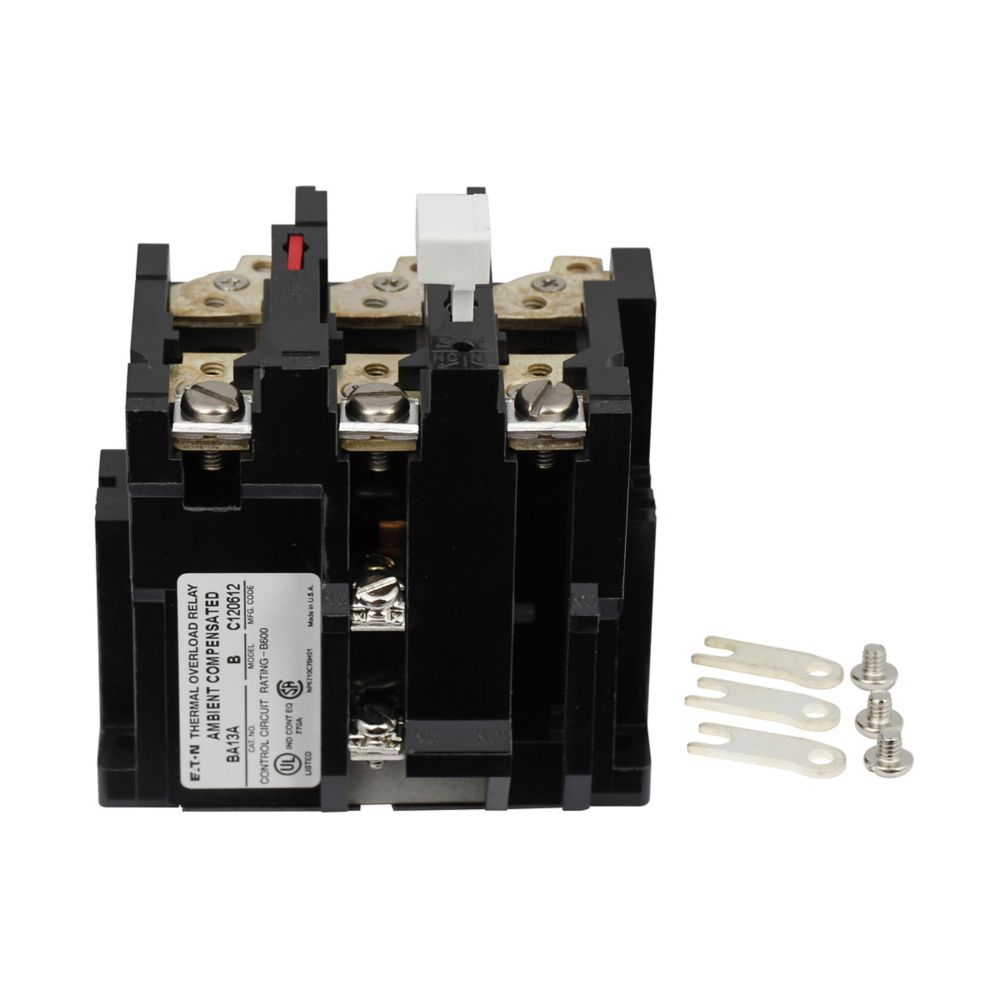

BA33P - Eaton Cutler Hammer - 19-90A Three-Pole Thermal Overload Relay
NEMA A200 Thermal Overload Relay, Three-pole, Panel mounted, NEMA , Thermal Type B, Class 20, 1NC Auxiliary Contact, Ambient Compensated , Full load range 19-90A
GENERAL SPECIFICATIONS
| Product Name | Eaton Freedom NEMA overload relay |
| Catalog Number | BA33P |
| UPC | 786678003061 |
| Product Length/Depth | 8.2 in |
| Product Height | 5.1 in |
| Product Width | 6.1 in |
| Product Weight | 1.7 lb |
| Certifications | CSA Certified UL Listed |
| Product Type | Overload relay |
PRODUCT SPECIFICATIONS
| Modification | 1NC Auxiliary Contact, Ambient Compensated |
| Design | NEMA |
| Full load current range | 19-90A |
| Mounting | Panel |
| Number of poles | Three-pole |
| Special features | Heaters required |
| Trip Type | Thermal Type B, Class 20 |
| Type | A200 |
