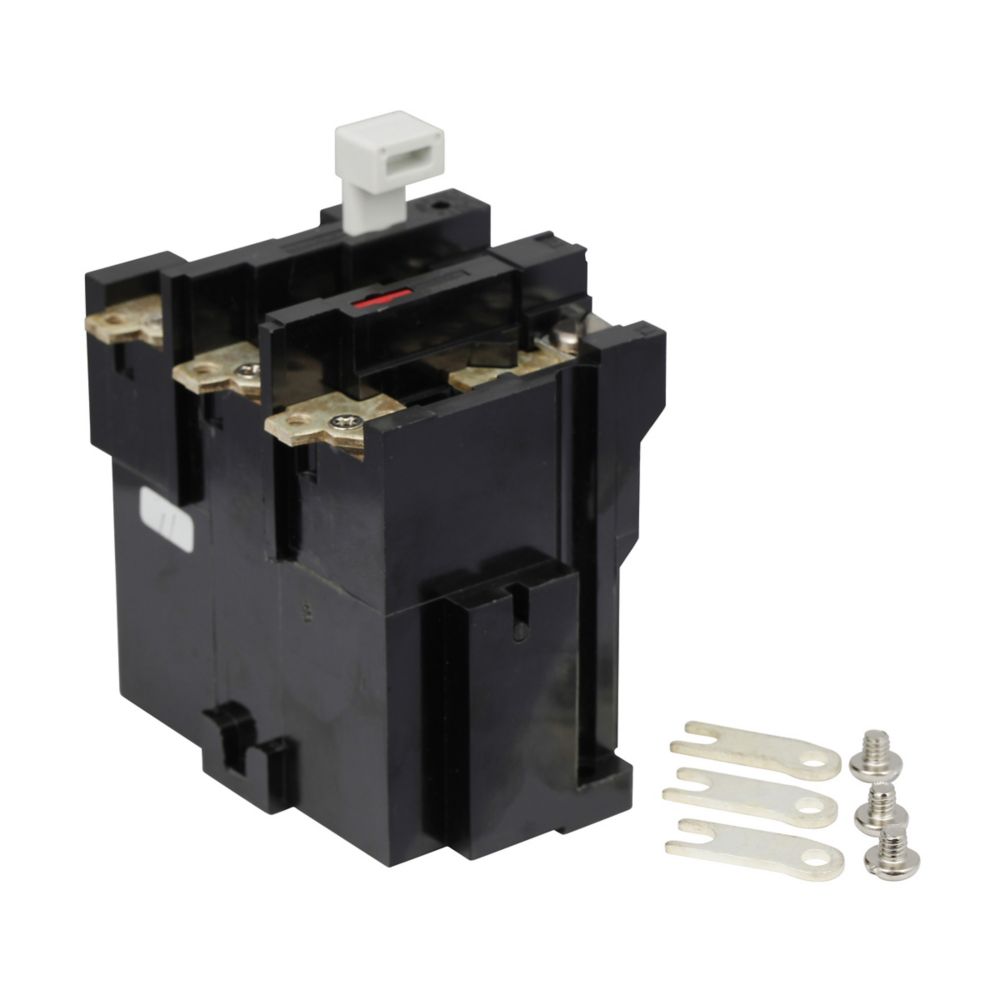

BA43A - Eaton Cutler Hammer - 19-135A Three-Pole Thermal Overload Relay
The Eaton BA43A is a starter-mounted, three-pole Freedom NEMA thermal overload relay (Type A200, Class 20, Thermal Type B) with ambient compensation and a 1NC auxiliary contact. It covers a wider full-load current range of 19–135 A (~8.2 × 6 × 5.1 in, 2.1 lb), and includes a contactor mounting bracket plus connection straps for easy installation. UL-listed and CSA-certified, it's backed by Eaton’s standard warranty terms.
GENERAL SPECIFICATIONS
| Product Name |
Eaton Freedom NEMA overload relay
|
| Catalog Number |
BA43A
|
| UPC |
786678003238
|
| Product Length/Depth |
8.2 in
|
| Product Height |
5.1 in
|
| Product Width |
6 in
|
| Product Weight |
2.1 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Replacement for Type A Overload Relays in Manual Reset Mode (3-Pole Only). Includes contactor mounting bracket, overload relay and connection straps to contactor.
|
| Product Type |
Overload relay
|
PRODUCT SPECIFICATIONS
| Modification |
1NC Auxiliary Contact, Ambient Compensated
|
| Design |
NEMA
|
| Full load current range |
19-135A
|
| Mounting |
Starter
|
| Number of poles |
Three-pole
|
| Special features |
Heaters required
|
| Trip Type |
Thermal Type B, Class 20
|
| Type |
A200
|
