Description

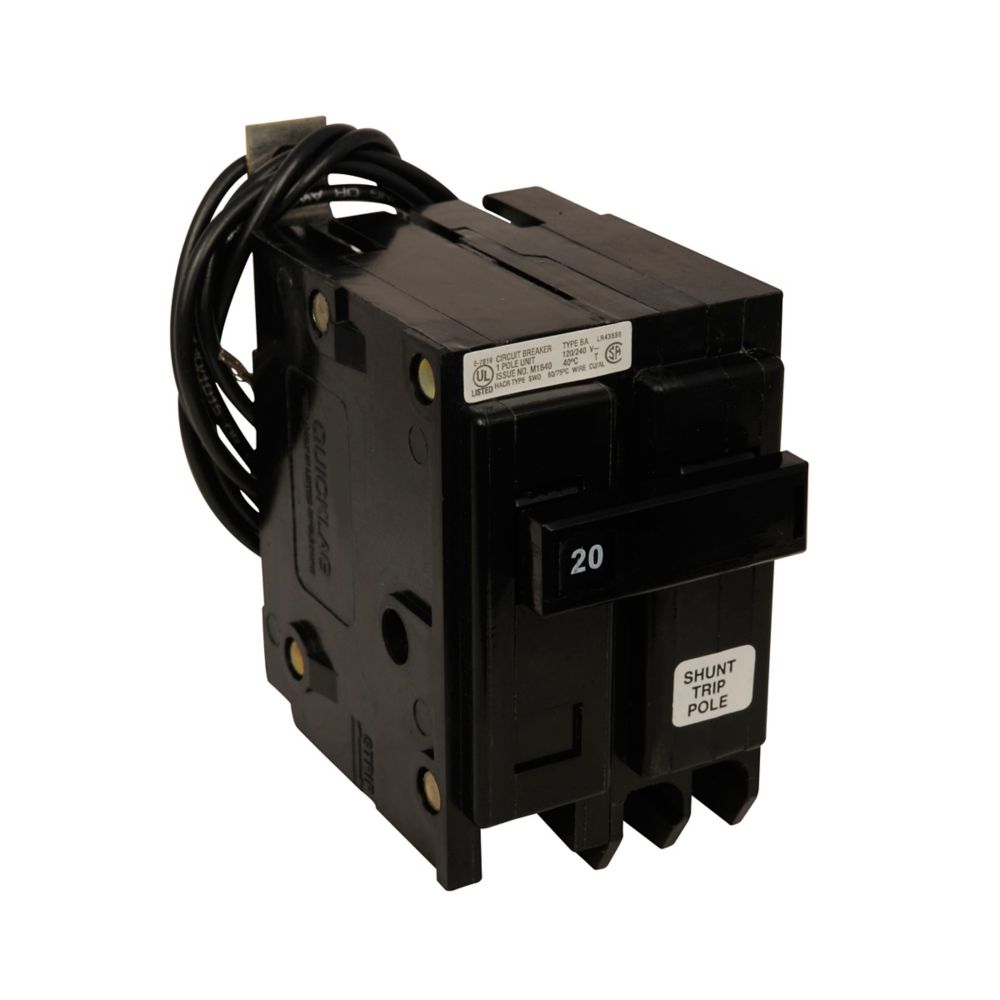

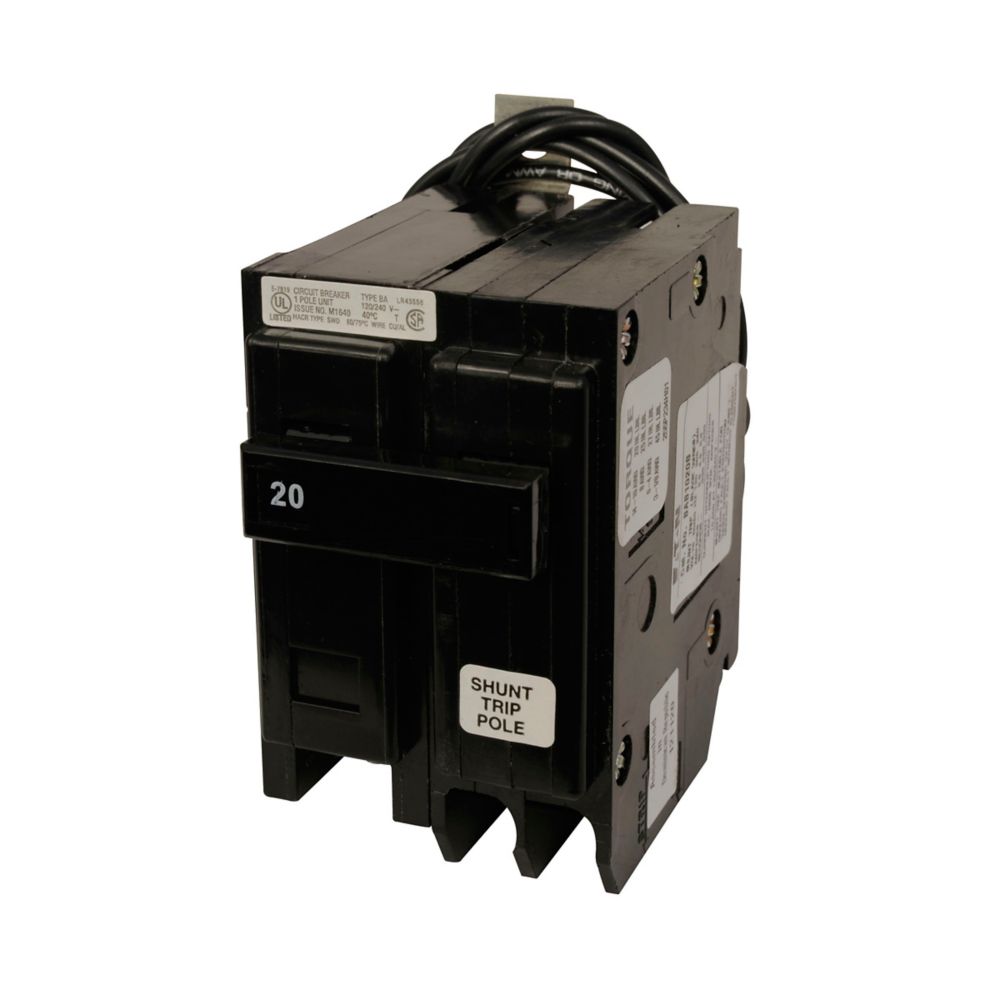

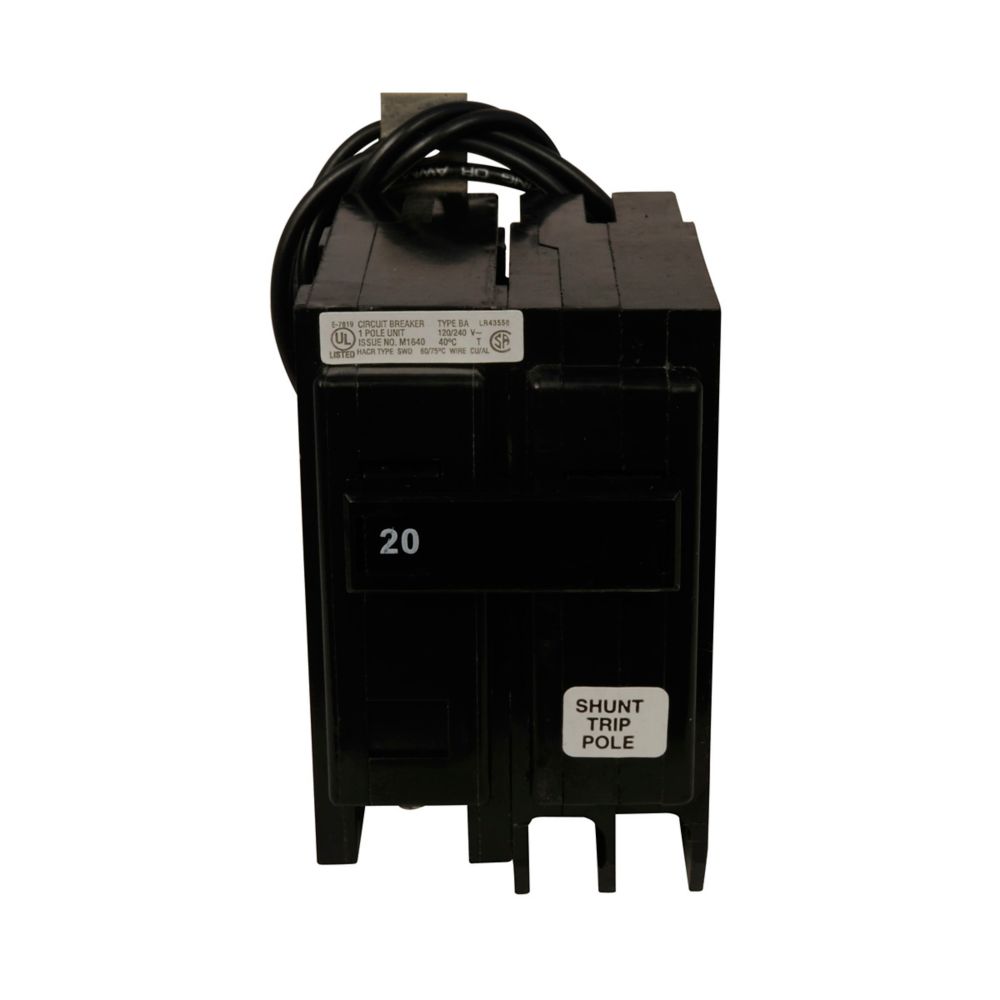

BAB1020S - Eaton Cutler Hammer - 20A 120/240V BAB Thermal Magnetic Circuit Breaker
Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,20 A,10 kAIC,Single-pole,120/240 V,Non-Interchangeable,Q7,BAB,24/48 Vdc Shunt trip.
GENERAL SPECIFICATIONS
| Product Name |
Eaton BAB thermal magnetic circuit breaker
|
| Catalog Number |
BAB1020S
|
| UPC |
786679509609
|
| Product Length/Depth |
3.9 in
|
| Product Height |
4.8 in
|
| Product Width |
2.2 in
|
| Product Weight |
1 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
HACR rated
|
| Product Type |
Thermal magnetic circuit breakers
|
PHYSICAL ATTRIBUTES
| Circuit breaker type |
BAB
|
| Mounting Method |
Bolt-on
|
| Number of poles |
Single-pole
|
| Type |
Quicklag industrial thermal-magnetic circuit breaker
|
PERFORMANCE RATINGS
| Amperage Rating |
20 A
|
| Interrupt rating |
10 kAIC
|
| Trip Type |
Non-Interchangeable
|
| Voltage rating |
120/240 V
|
MISCELLNEOUS
| Quantity |
7
|
| Shunt trip |
120-240V
|
| Special features |
Bolt-on mounting
|
