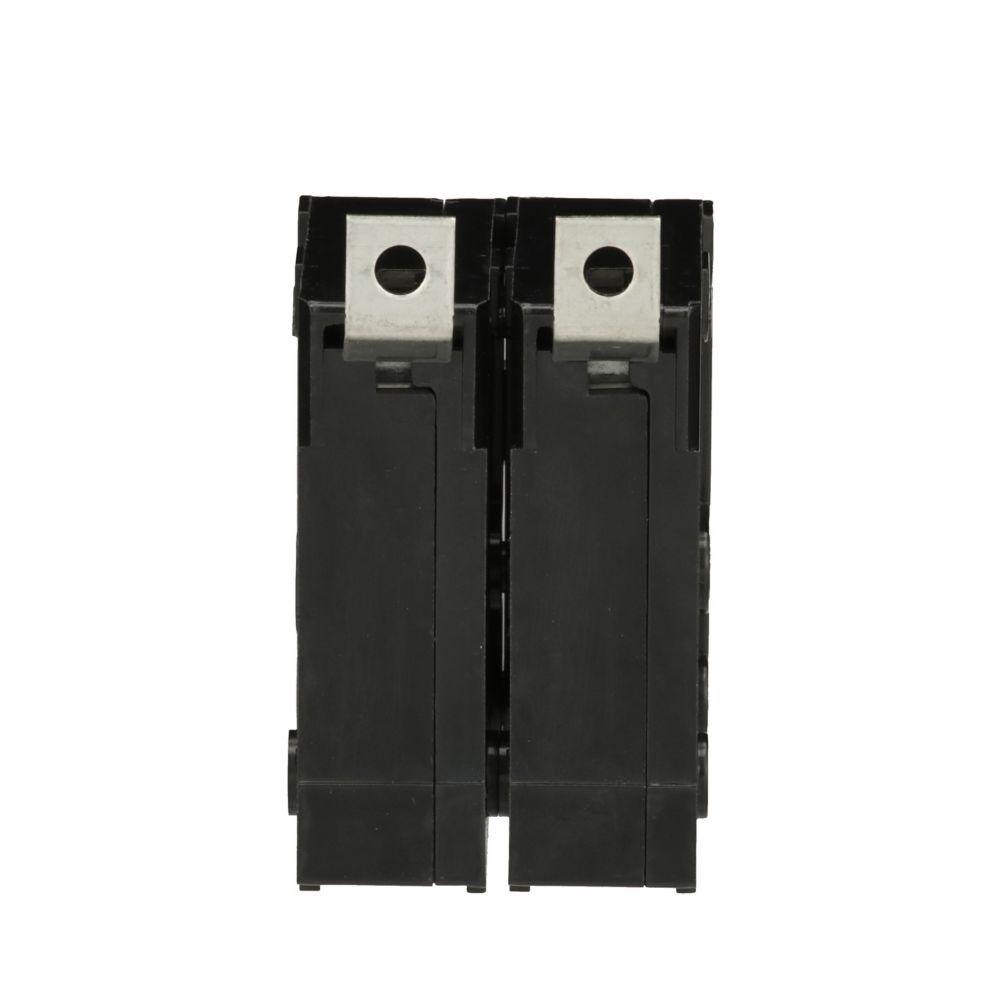

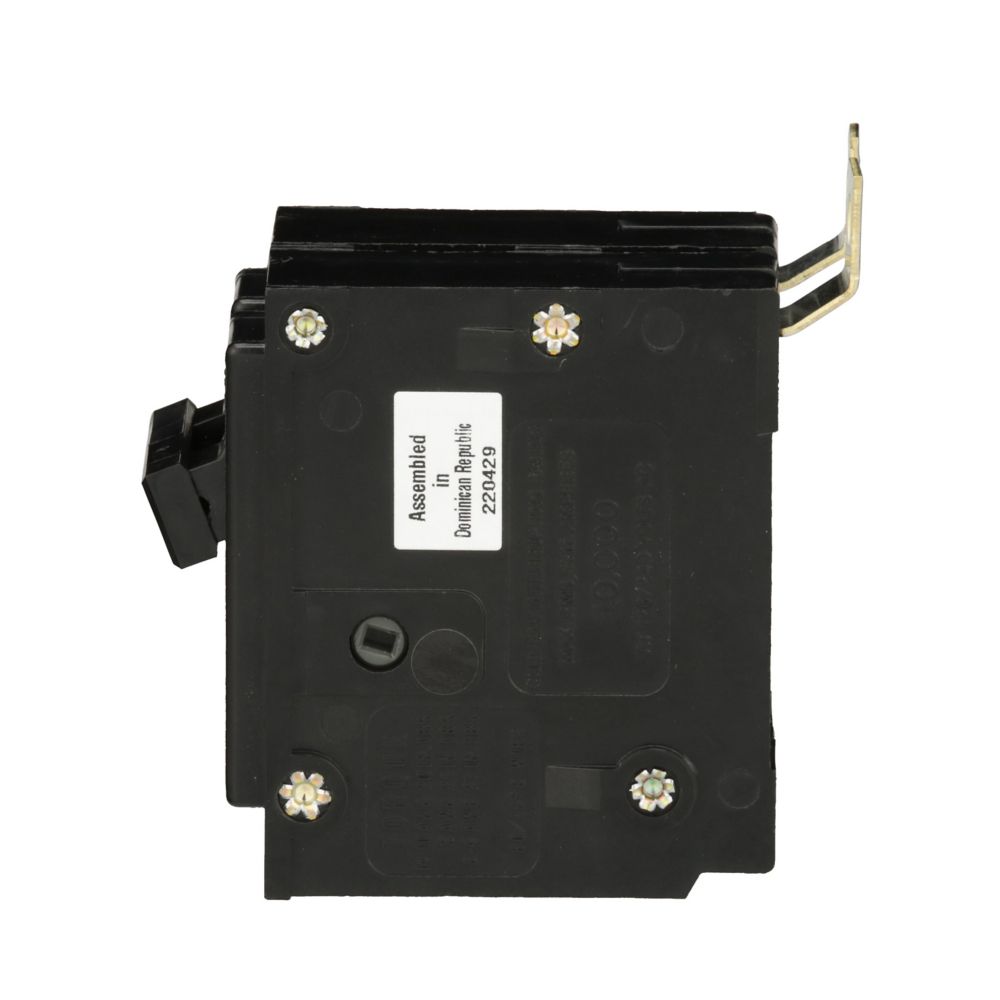

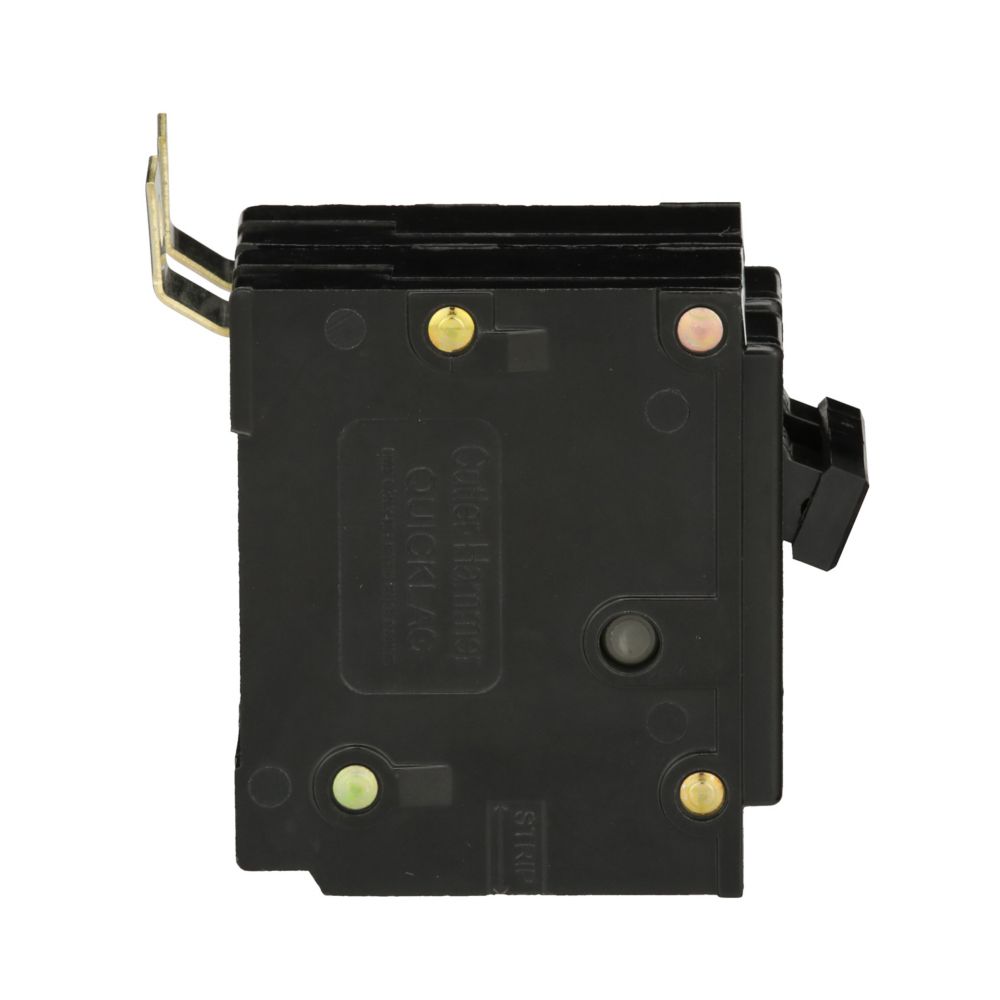

BAB2015 - Eaton Cutler Hammer - 15A 120/240V Two-Pole BAB Thermal Magnetic Circuit Breakers
The Eaton BAB2015 is a two-pole Quicklag thermal-magnetic breaker rated at 15 A, with a 10 kA interrupt capacity for 120/240 V systems. It features switching neutral capability, bolt-on mounting, and universal load-lug connections, making it versatile for panelboard and fluorescent light applications. CSA- and UL-certified, it ensures reliable performance and panel protection.
GENERAL SPECIFICATIONS
| Product Name |
Eaton BAB thermal magnetic circuit breaker |
| Catalog Number |
BAB2015 |
| UPC |
786679302156 |
| Product Length/Depth |
3.8 in |
| Product Height |
4.8 in |
| Product Width |
2.1 in |
| Product Weight |
0.65 lb |
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
HACR rated |
| Product Type |
Thermal magnetic circuit breakers |
PHYSICAL ATTRIBUTES
| Circuit breaker type |
BAB |
| Number of poles |
Two-pole |
| Type |
Quicklag Industrial Circuit Breaker |
PERFORMANCE RATINGS
| Amperage Rating |
15 A |
| Interrupt rating |
10 kAIC |
| Trip Type |
Non-Interchangeable |
| Voltage rating |
120/240 V |
MISCELLNEOUS
| Quantity |
7 |
| Special features |
- Bolt-on mounting
- Switching neutral
- TORQUE 4-10 AWG 20 IN LBS
- 8AWG 25 IN LBS
- 6-4 AWG 27 IN LBS
|
PRODUCT DATASHEET
BAB2015
