Description

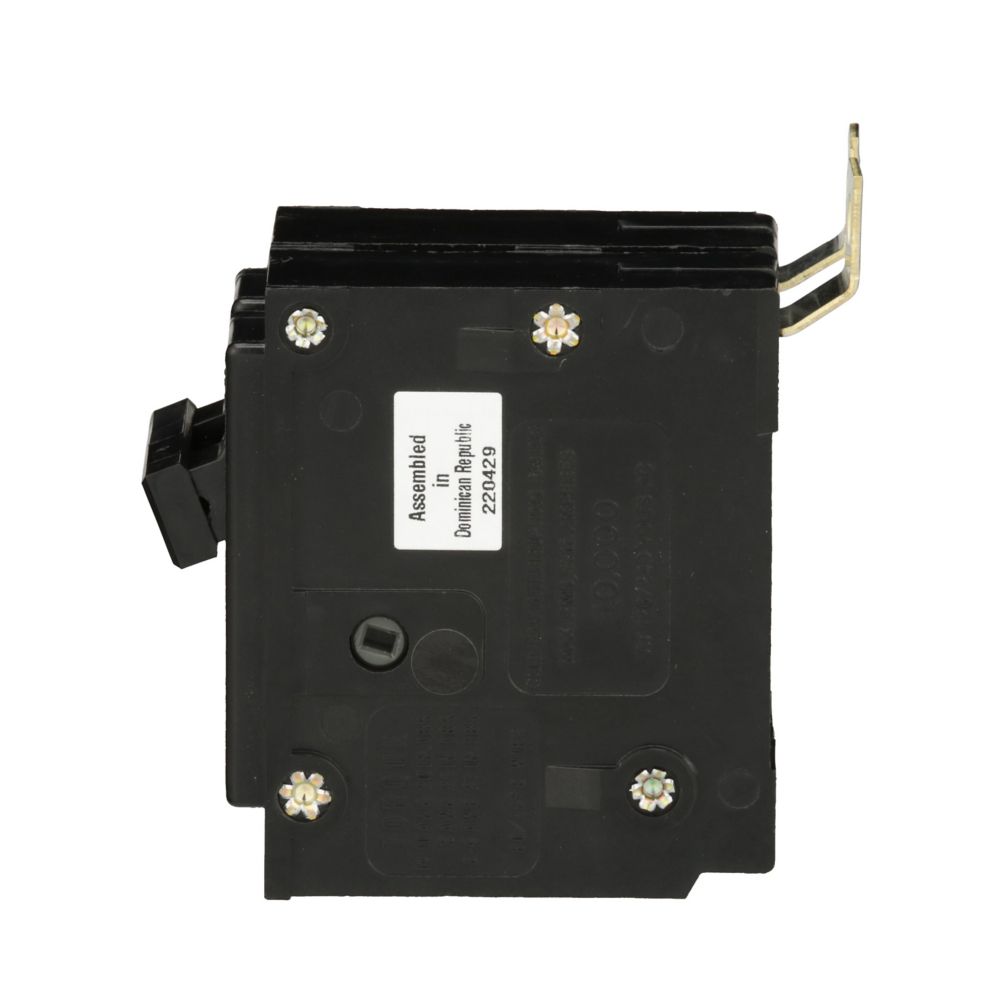

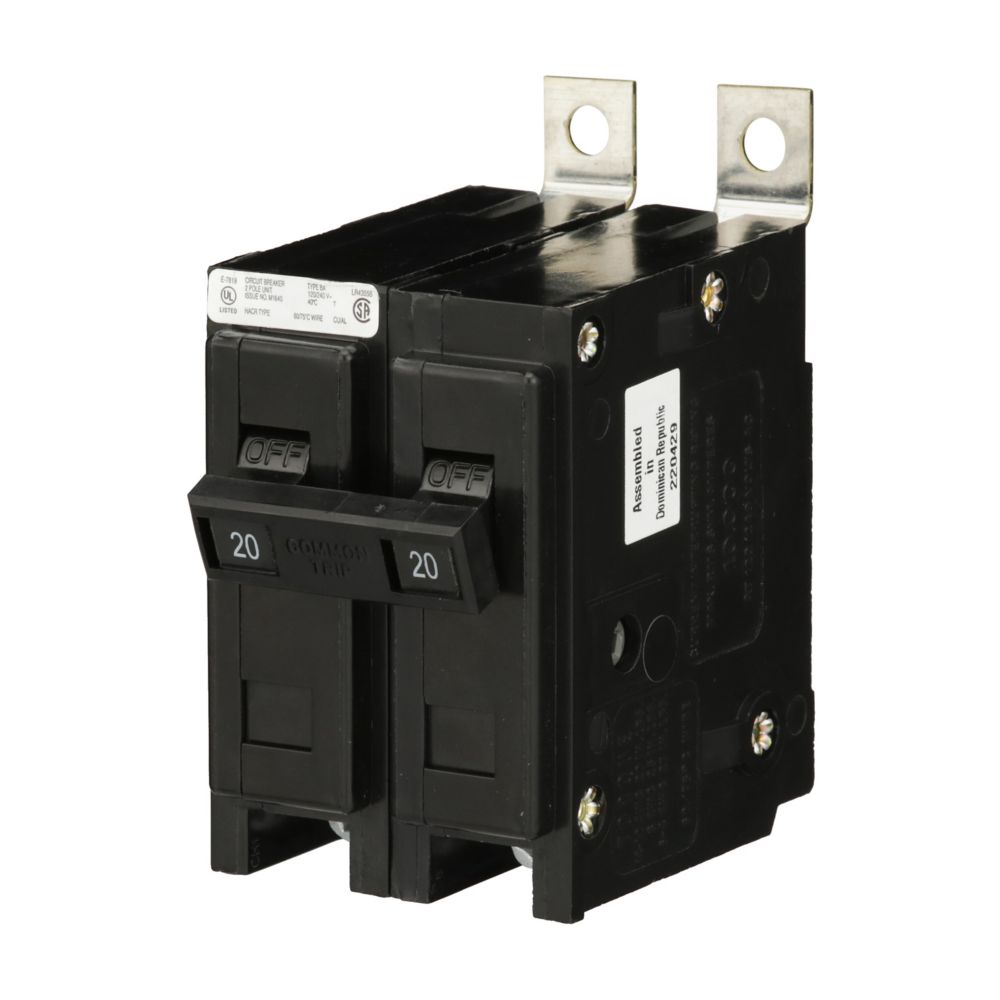

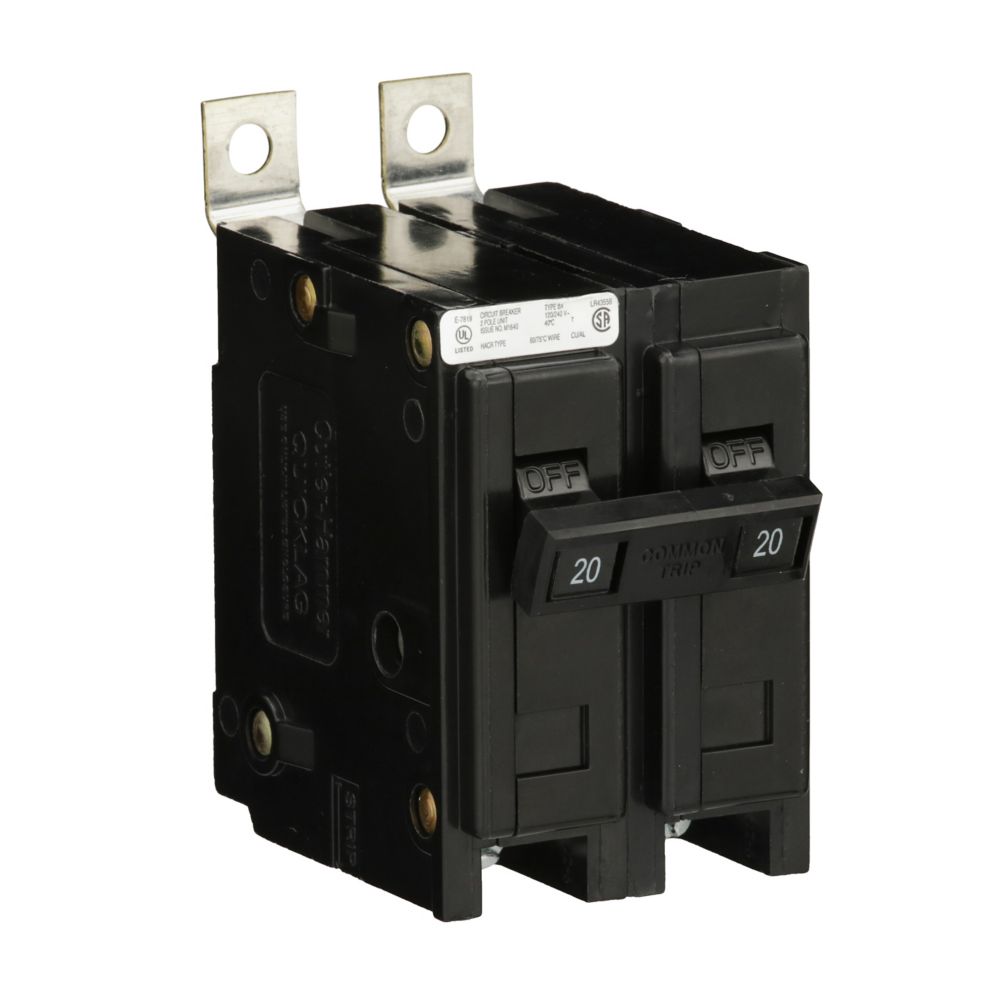

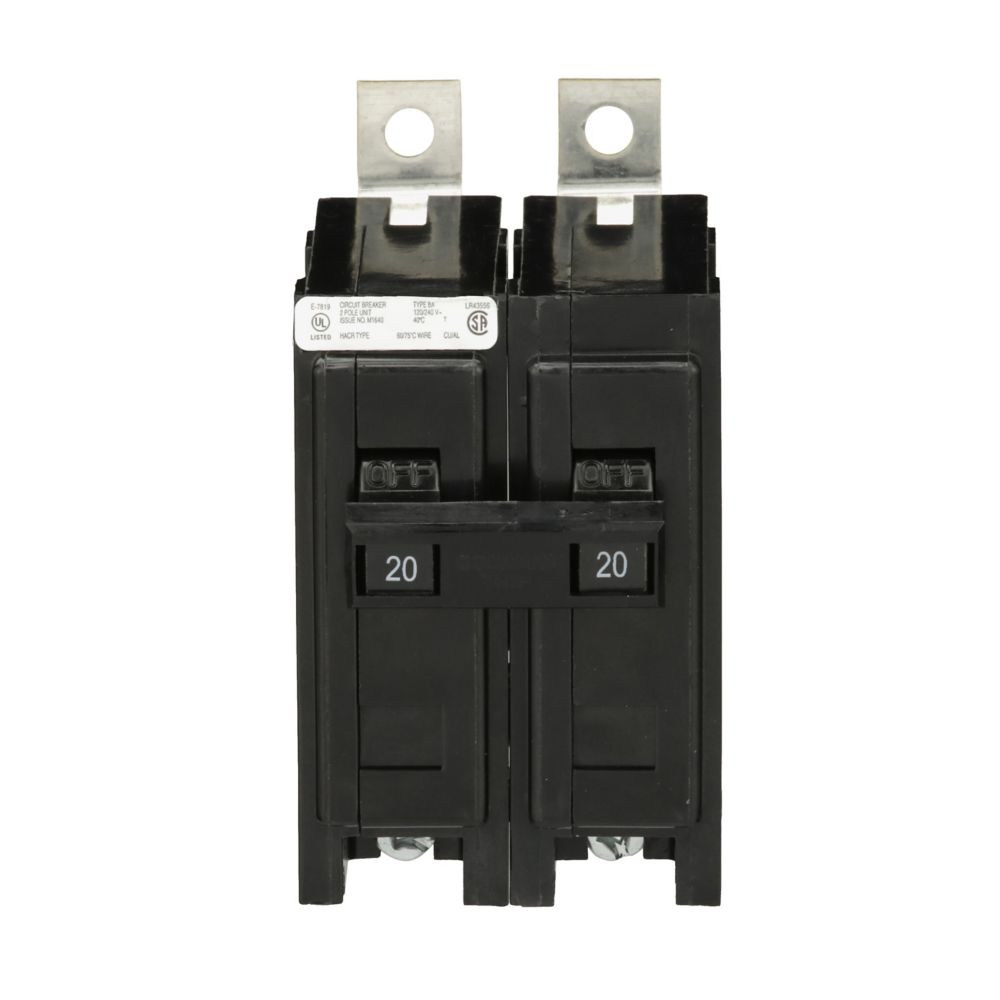

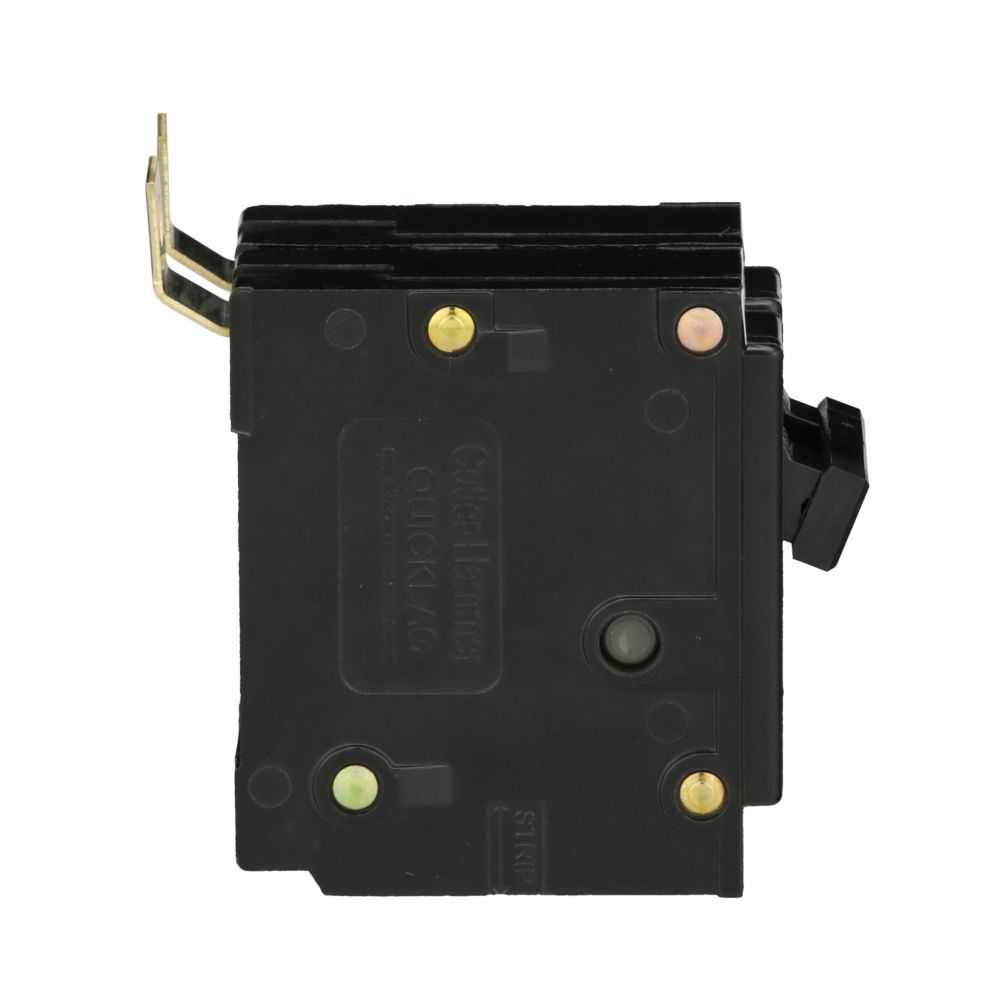

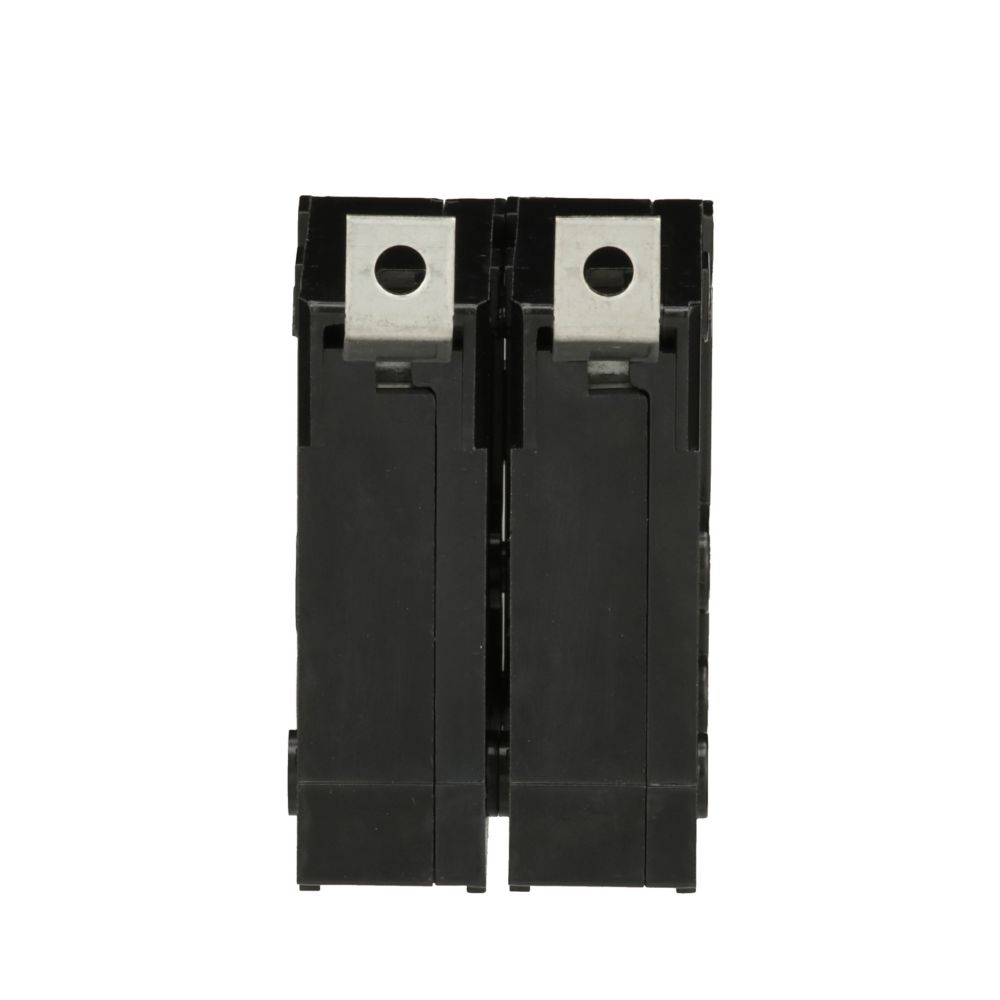

BAB2035 - Eaton Cutler Hammer - 35A 120/240V Two-Pole BAB Thermal Magnetic Circuit Breakers
The Eaton BAB2035 is a two-pole Quicklag bolt-on thermal-magnetic circuit breaker rated at 35 A for 120/240 V systems, featuring a 10 kA interrupting capacity and HACR rating for HVAC use. It delivers panelboard protection with easy bolt-on installation. Built for reliability, it's UL- and CSA-listed for versatile industrial and commercial applications.
GENERAL SPECIFICATIONS
| Product Name |
Eaton BAB thermal magnetic circuit breaker
|
| Catalog Number |
BAB2035
|
| UPC |
786679302354
|
| Product Length/Depth |
3 in
|
| Product Height |
3.5 in
|
| Product Width |
2 in
|
| Product Weight |
0.6 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
HACR rated
|
| Product Type |
Thermal magnetic circuit breakers
|
PHYSICAL ATTRIBUTES
| Circuit breaker type |
BAB
|
| Mounting Method |
Bolt-on
|
| Number of poles |
Two-pole
|
| Type |
Quicklag industrial thermal-magnetic circuit breaker
|
PERFORMANCE RATINGS
| Amperage Rating |
35 A
|
| Interrupt rating |
10 kAIC
|
| Trip Type |
Non-Interchangeable
|
| Voltage rating |
120/240 V
|
MISCELLANEOUS
| Quantity |
7
|
| Special features |
Bolt-on mounting
|
