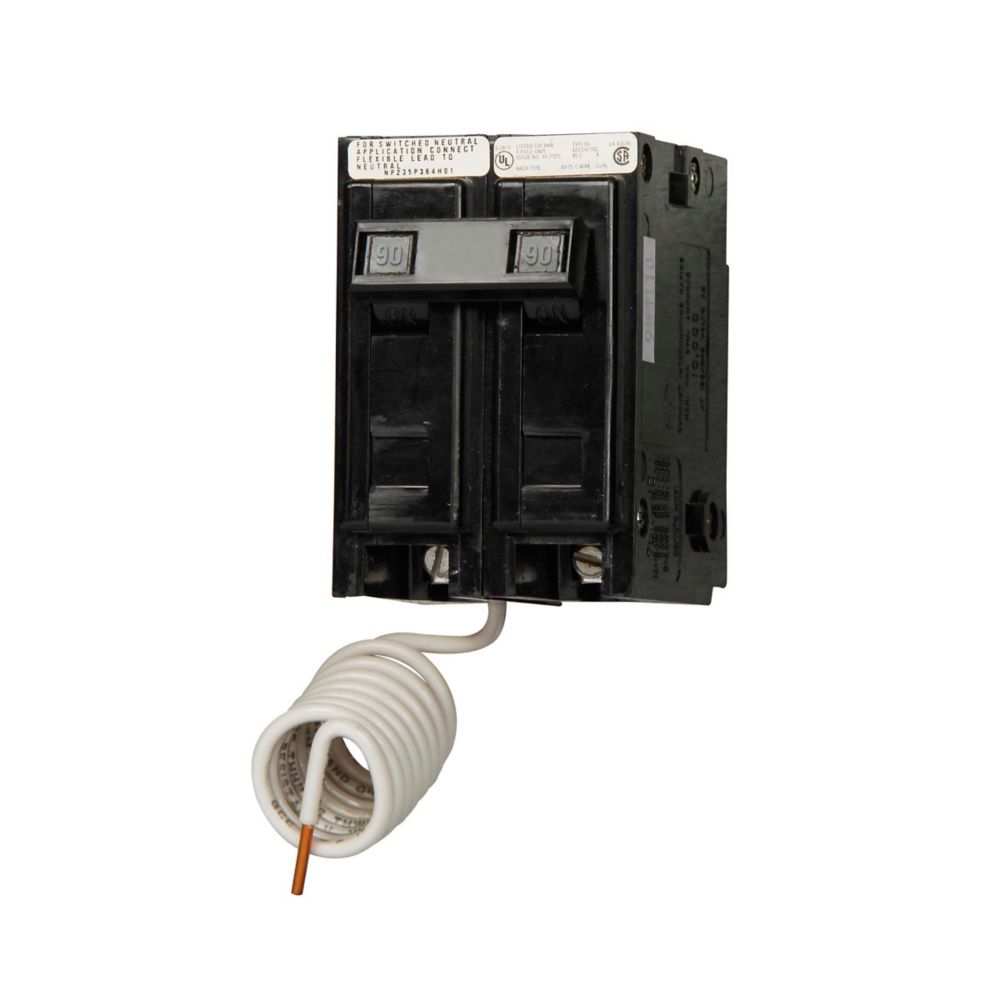

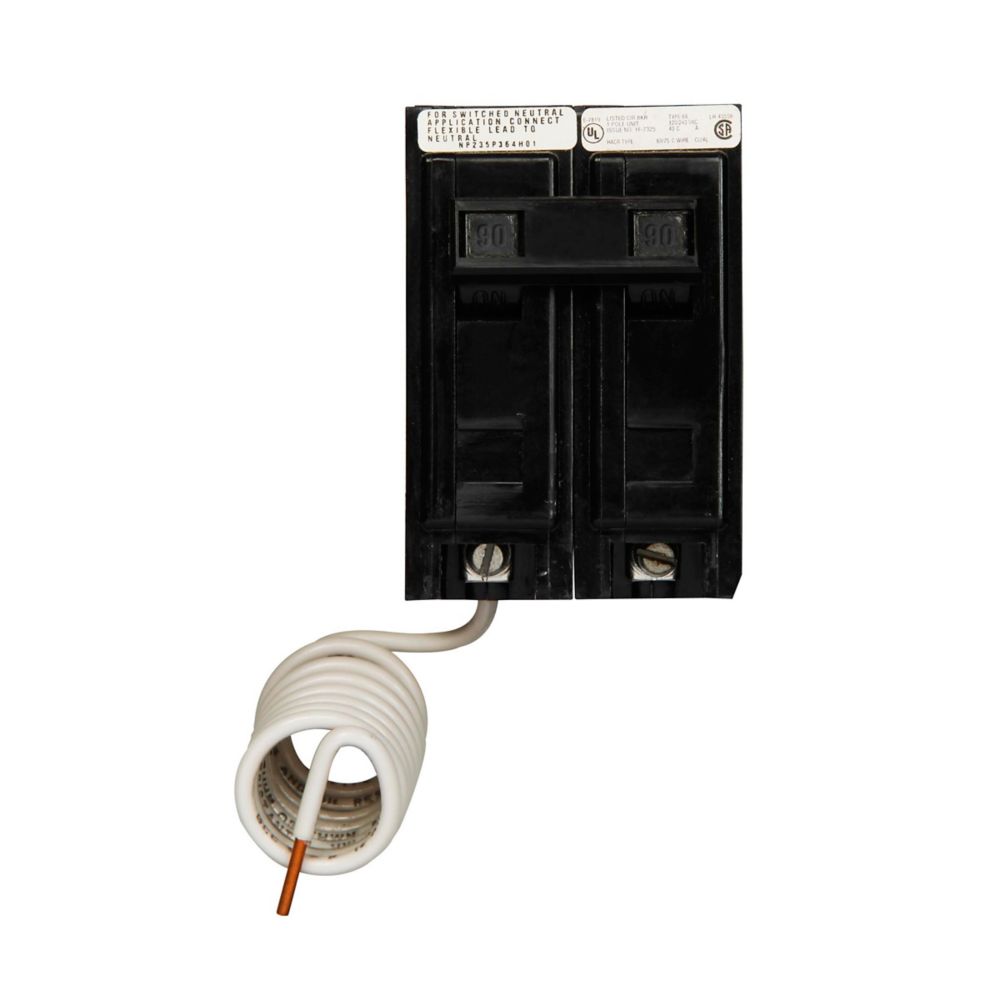

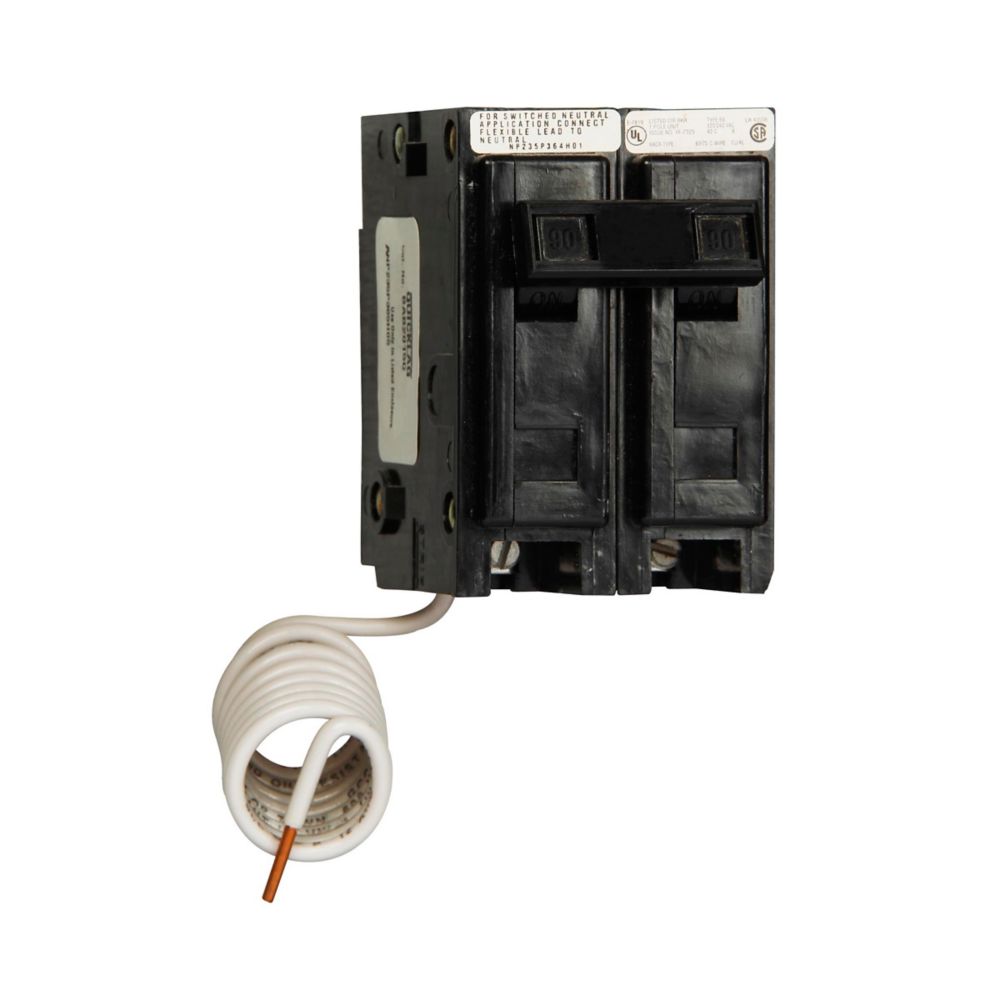

BAB2090 - Eaton Cutler Hammer - 90A 120/240 V Two-Pole BAB Thermal Magnetic Circuit Breaker
The Eaton BAB2090 is a two-pole, bolt-on Quicklag thermal-magnetic breaker rated at 90 A with a 10 kA interrupt capability, suited for 120/240 V environments. Its non-interchangeable trip design provides panelboard protection with device reliability. HACR-rated and UL/CSA-listed, it's a dependable choice for demanding circuits.
GENERAL SPECIFICATIONS
| Product Name |
Eaton BAB thermal magnetic circuit breaker
|
| Catalog Number |
BAB2090
|
| UPC |
786679302903
|
| Product Length/Depth |
3.5 in
|
| Product Height |
3 in
|
| Product Width |
2.5 in
|
| Product Weight |
0.65 lb
|
| Certifications |
CSA Certified
UL Listed |
| Catalog Notes |
HACR rated
|
| Product Type |
Thermal magnetic circuit breakers
|
PHYSICAL ATTRIBUTES
| Circuit breaker type |
BAB
|
| Mounting Method |
Bolt-on
|
| Number of poles |
Two-pole
|
| Type |
Quicklag industrial thermal-magnetic circuit breaker
|
PERFORMANCE RATINGS
| Amperage Rating |
90 A
|
| Interrupt rating |
10 kAIC
|
| Trip Type |
Non-Interchangeable
|
| Voltage rating |
120/240 V
|
MISCELLANEOUS
| Quantity |
7
|
| Special features |
Bolt-on mounting
|
