Description

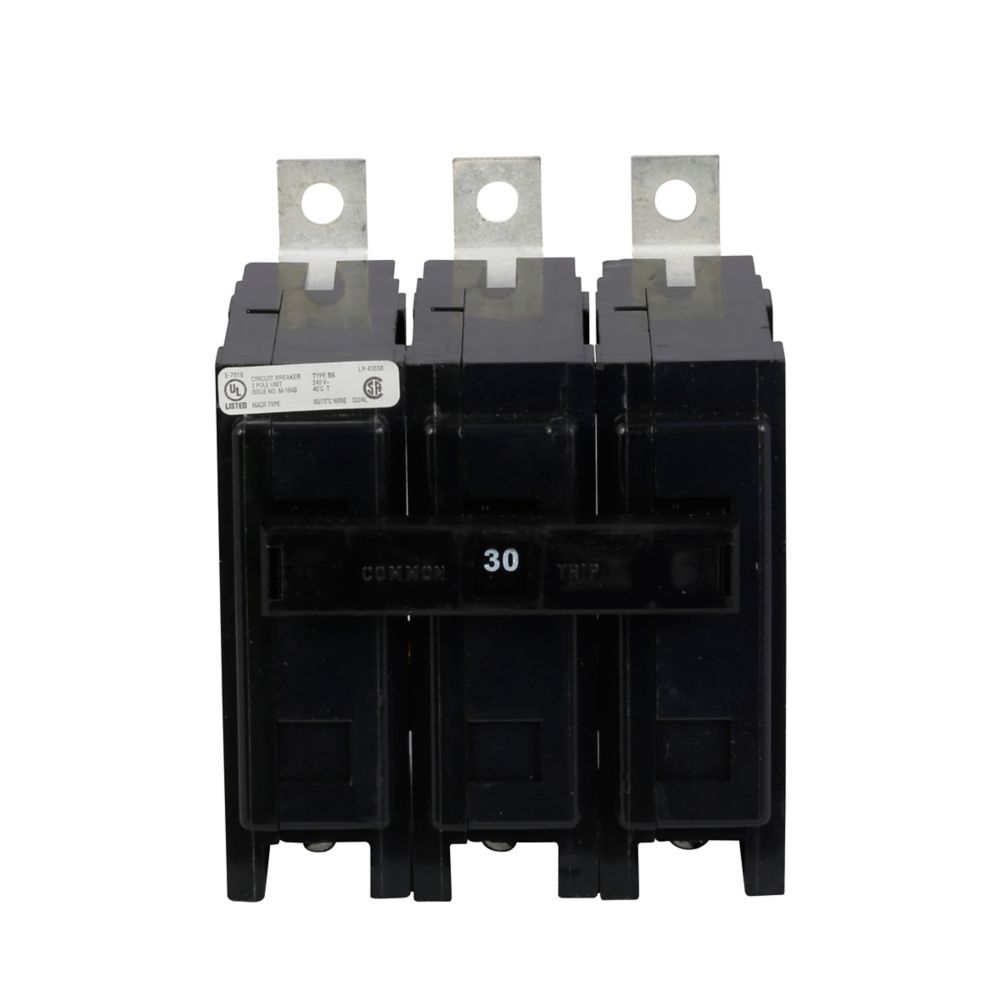

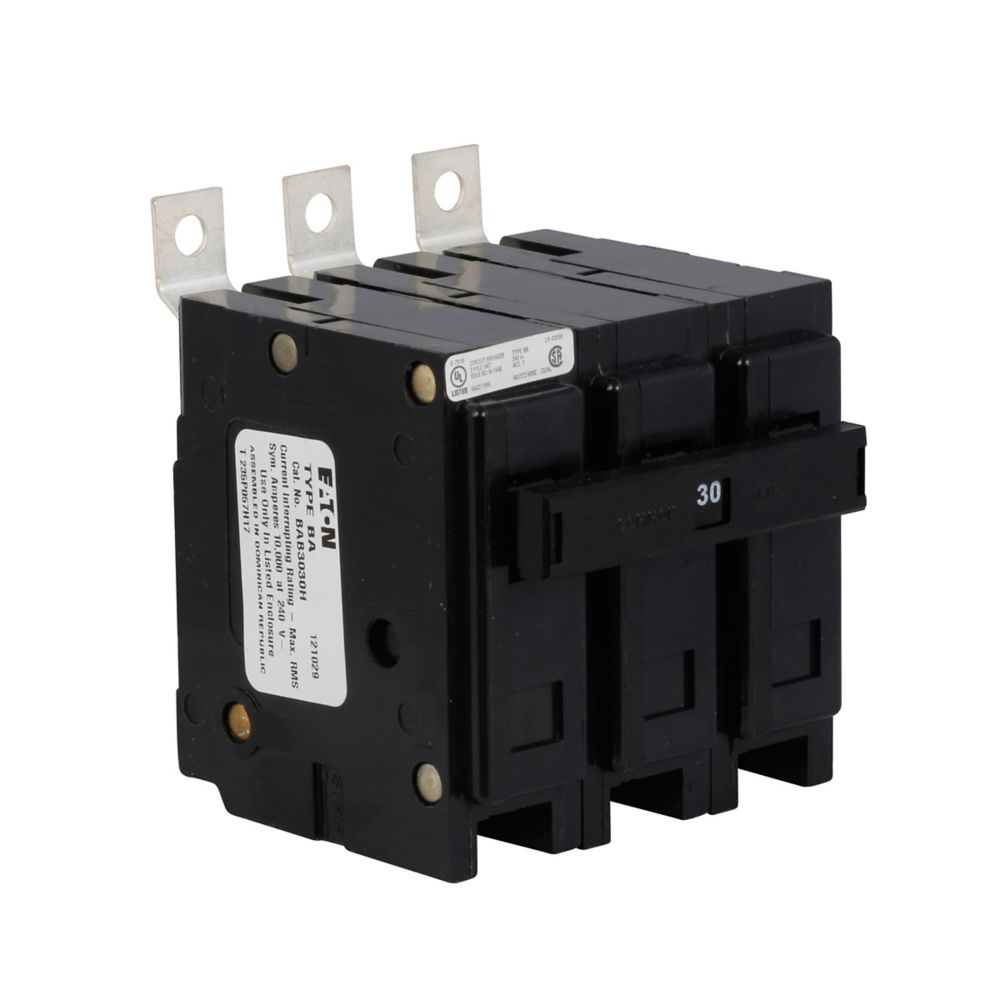

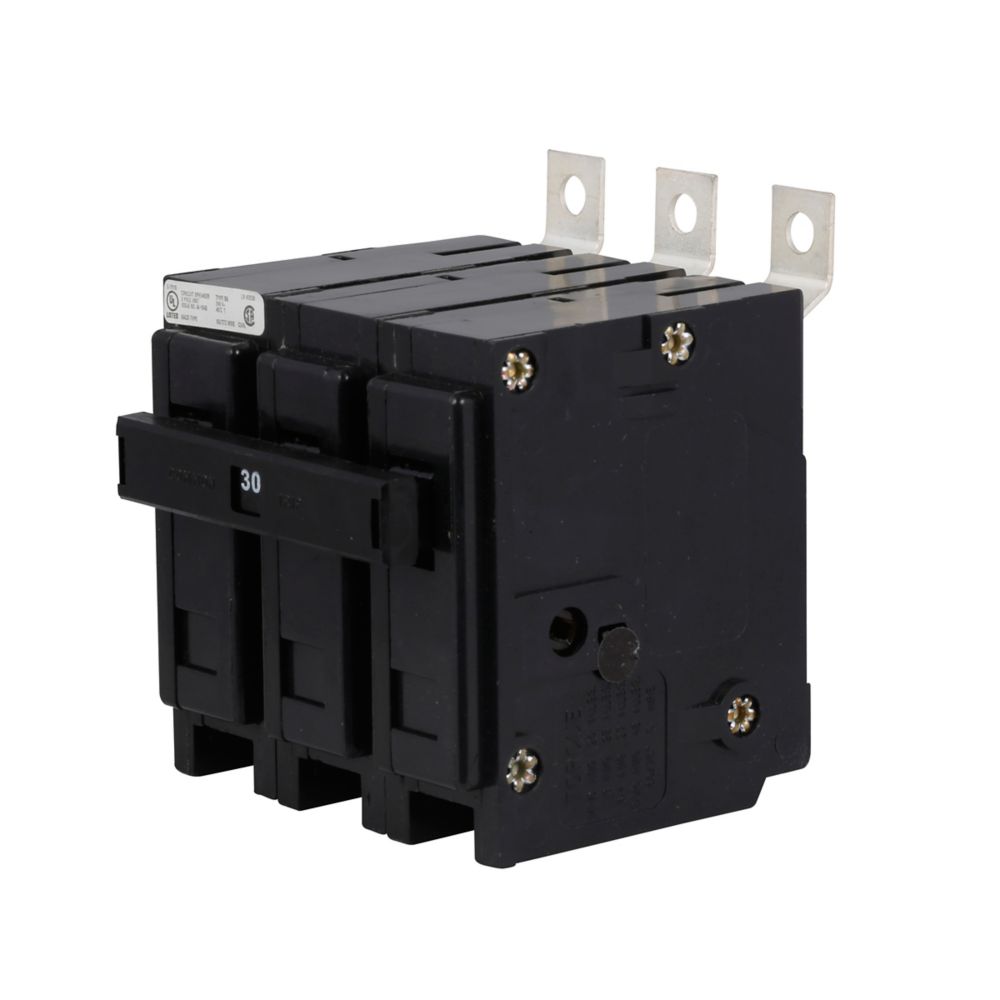

BAB3035H - Eaton Cutler Hammer - 35A 240 V Three-Pole BAB Thermal Magnetic Circuit Breakers
The Eaton BAB3035H is a three-pole Quicklag thermal-magnetic breaker rated at 35 A for 240 V service with a 10 kA interrupting rating. Compact yet robust, it provides high-performance three-phase protection. UL/CSA-listed with HACR capability, it’s fit for industrial-grade circuit protection.
GENERAL SPECIFICATIONS
| Product Name |
Eaton BAB thermal magnetic circuit breaker
|
| Catalog Number |
BAB3035H
|
| UPC |
786679303351
|
| Product Length/Depth |
3.375 in
|
| Product Height |
3.25 in
|
| Product Width |
3 in
|
| Product Weight |
0.95 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
HACR rated
|
| Product Type |
Thermal magnetic circuit breakers
|
PHYSICAL ATTRIBUTES
| Circuit breaker type |
BAB
|
| Number of poles |
Three-pole
|
| Type |
Quicklag industrial thermal-magnetic circuit breaker
|
PERFORMANCE RATINGS
| Amperage Rating |
35 A
|
| Interrupt rating |
10 kAIC
|
| Trip Type |
Non-Interchangeable
|
| Voltage rating |
240 V - 240 V
|
MISCELLANEOUS
| Shunt trip |
120-240V
|
| Special features |
Bolt-on mounting
|
PRODUCT DATASHEET
